Inmax IP67 Waterproof 12V 24V Shipboard Vehicle Metro Subway Railway M12 Switch

Product Description

Product DescriptionMeet the EN50155 railway industry standard requirements. Designed for railway transportation applications.
With 8×10/100M M12 BaseT ports.
IP67 waterproof housing.
Automatic recognition of power consumption and power supply mode of network equipment.
Optional function: bypass function(1- 2 port) for power-off protection.
Redundant dual 24VDC power inputs. Built-in overcurrent protection, Reverse connection protection.
Support one-way relay alarm function.
-40 to 75 operating temperature range (WT models).
No fan, low consumption, industrial design standard, industrial grade electronic components,environmental protection & lead-free production.
High strength metal housing, support wall mounting.
Without packet loss in 72 hours full load flow test.

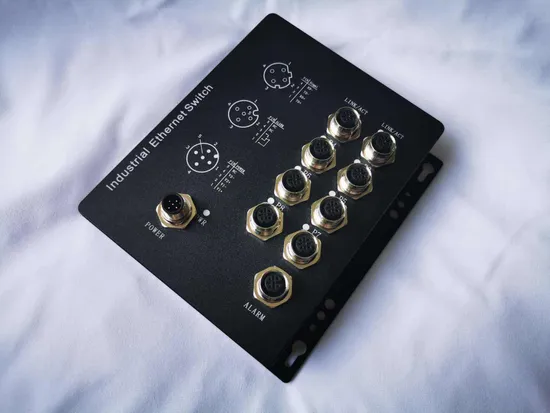

IntroductionThe X308C series M12 railway Ethernet switches are designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock.
The X308C Ethernet switches provide 8 fast Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x standard, 10/100M speed adaptive, full duplex / half duplex communication and MDI / MDI-X automatic detection, to provide you with an economical industrial Ethernet solutions.
No fan, low power consumption design, working function more steady, and without packet loss in 72 hours full load flow test.
It accords with FCC, CE, RoHS standard and industrial design requirement. It can work in -40 to 75 working temperature and electromagnetic complex harsh working environment steadily, widely used in car PIS, CCTV, car security monitoring, smart factory, and provide reliable and quick solution for customers' Ethernet device connection.

Product Name	M12 8 Port 100M Railway Industrial Ethernet Switch
M12 Ports	M12 4Pin D-Coded 100M Connector
M12 Power Port	M12 5Pin Power port connector
Input Voltage	12VDC / 24VDC ( 9 - 36VDC )
IP Rating	IP67
Dimension	161 × 150 × 50mm
Weight	2kg
Operating Temperature	-40 to 75 ºC

Products Show Our ServiceHigh quality High quality High qualityODM DB9 railway switch board ODM M12 bus switch board 110VDC railway gigabit switch board
Optional Accessories M12 A-code (8-Pin male) M12 X-code (8-pin male) M12 D-code (4-pin male)10/100/1000 BASE-T RJ45 Interface, 10/100/1000 BASE-T RJ45 Interface, 10/100 BASE-T RJ45 Interface,
customized- length customized- length customized- length
M12 A-code M12 X-code M23 (8-Pin male)Connector (8-pin male)Connector (6-pin Female)ConnectorM12 A-code (8-pin male) Quick M12 X-code (8-pin male) Quick M23(6-pin male) Quick
Connector Connector Connector
Our Company Our officeOur Workshop Packing & DeliveryPacking Details: 1pcs/box, 6 pcs/carton, size:36x34.7x21.5cm/carton .
Delivery Details : 3-5 days for samples if we have stock, 2-6 weeks for mass order
Our Certifications InMax Fair Photo Shenzhen InMax Technologies Co., Ltd. has participated in (CPSE 2017) the 16th China Public Security Expo successfully.In 2017, the global focus on the 16th China Public Security Expo (CPSE), which is held in Shenzhen Exhibition Center. ShenzhenShenzhen InMax Technologies Co., Ltd. has launched a series of professional industrial Ethernet switches, to offer service to the safety city, smart city, intelligent transportation, and networking solutions. InMax participated in the 6th Shenzhen International Intelligent Transportation Exhibition (ITS 2017), got a complete success!InMax participated in this ITS fair, mainly to show the latest released rail vehicle industry Ethernet switches which meet the standard EN50155, and provided professional network communication solutions.InMax network communication equipment are being widely used in urban road construction and vehicle communication data transmission in major cities. FAQQ1: Are you a factory or trading company.
A1: We are professional manufacturer, and our main products are industrial switches, which are all produced by ourselves in Shenzhen, China.
Q2: Can I get sample?
A2: Yes, we can provide sample based on your need, pls feel free to contact us for more details.
Q3: Do you supply OEM/ODM service?
A3: Yes, we can provide not only OEM service but also ODM service. We are professional on R&D, thus we can provide customized products if there is certain order quantity.
Q4: What is your MOQ?
A4: We don't have MOQ limited. 1 piece is ok.
Q5: How long is your delivery time?
A5: 3-5 days if we have stock for your order, if not, it might be 3-4 weeks. Of course, it depends on the quantity.
If you are interested in our products, pls do not hesitate to send us inquiry.
Contact us, and let's cooperate happily, too !
