Single Shaft, Easy Operation, Auto Control Hammer Crusher Machine for Making Pellet

Single Shaft, Easy Operation, Auto Control Hammer Crusher Machine for Making Pellet

US$5,000.00-16,800.00 1 Set (MOQ)

Basic Info.

Model NO.
XT55*65
Hammers
48PCS
Weight
1.5t
Color
as Per Customer′s Request
Type
Hammer Crusher
Object
Wood
Drive
Electric
Crushing Degree
Fine Grinding Machine
Crushing Style
Grinding and Impact
Principle
Fixed Culling
Cutter Material
Hard Alloy
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Adjustable Tongs
Transport Package
Wood Pallet Box
Specification
GB/T19001
Trademark
Xingtai
Origin
China
HS Code
84659600
Production Capacity
30 Set/Week

Product Description

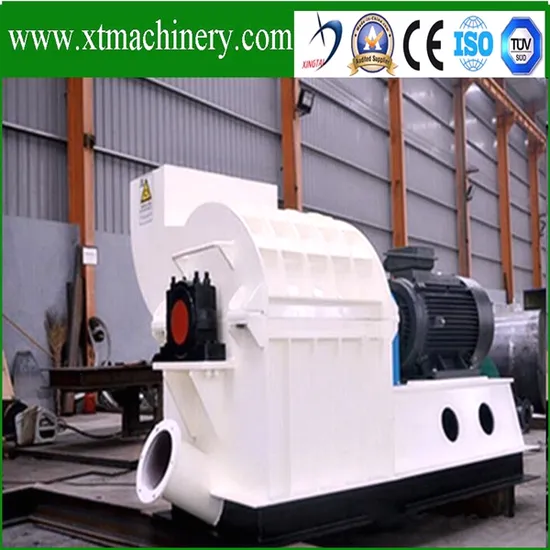

High efficient Hammer Mill
Multifunctional wood hammer mills are our company specializing in the production; the machine uses hammer hit screens to get the goods. According to the proportion of materials and output to choose type of machine.

Multifunctional Wood Hammer Mill is our finalize the design products , it is a best machine to crush kinds of straw , weeds , PVC foam board, rubber, plastic etc. So could be called straw hammer mill, wood hammer mill, rice husk hammer mill, cotton stalk hammer mill, PVC hammer mill.

Advantage of Hammer Mill
1.Hopper.We can design the vertical or horizontal hopper for your specific requirement.

2.Rotor structure. It ensures no dead corner inside and makes the finish products evenly.

3.Multifunctional. hammer mill can handles fertilizer,animal food and biomass material Security lock. To ensure the doors will not open during operation.

4.The hammer mill usually works with cyclone; the cyclone can filter out the dust from finished products.

5.A variable frequency drive could be installed on the belt conveyor to hammer mill, so you can adjust the right speed for the material.
Model Power(kw) Capacity t/h Hammers Weight (t)
XT40 7.5 0.2-0.5 16 0.27
XT50 15 0.6-0.8 16 0.45
XT65*27 22 0.8-1.5 24 1.1
XT65*55 37 1-2 48 1.5
XT65*75 55 2-3 72 1.9
XT65*100 90 3-4 96 2.3
XT130*55 110 5-6 80 5.3
XT130*100 160 7-8 160 6.8
Features:
1 The motor and rotor are installed in the same heavy-duty base, using coupling direct drive, rotor passes accurate dynamic balancing test, the hammers are arranged symmetrically.

2 Unique Feeding Design, the feeding inlet is made at the side of the device to make feeding easily.

3 The shell is welded by steel plate, the site in the crush room which connects to the materials all use the wearable and commutative parts and double wear plate.

4 Hammers adopts special abrasion resistant treatment technology, extend its lifetime greatly.
XT Machinery, Works For You!
