Foundry Flux Aluminum Iron Filtration Silicon Carbide Sic Ceramic Foam Filter 40ppi

Foundry Flux Aluminum Iron Filtration Silicon Carbide Sic Ceramic Foam Filter 40ppi

US$0.10
1,000-9,999 Pieces
US$0.095
10,000-99,999 Pieces
US$0.085
100,000+ Pieces

Basic Info.

Model NO.
SIC filter 031112
Type
Molten Metal Filtration
Material
Silicon Carbide Sic
Certification
ISO
Automatic
Automatic
Standard
Standard
Condition
New
Size
30mm-500mm
Ppi
10/15/20/25/30/40
Application
Grey Iron, Ductile Iron, Copper, Brass
Common Size 1
40X40X15mm 50X50X15mm 50X50X22mm
Common Size 2
50X75X22mm 75X75X22mm 75X100X22mm
Transport Package
Carton and Pallet
Specification
As per request
Trademark
NINGXIN
Origin
Hebei, China
HS Code
690390
Production Capacity
500 Cubic Meters Per Month

Packaging & Delivery

Package Size
110.00cm * 110.00cm * 200.00cm
Package Gross Weight
500.000kg

Product Description

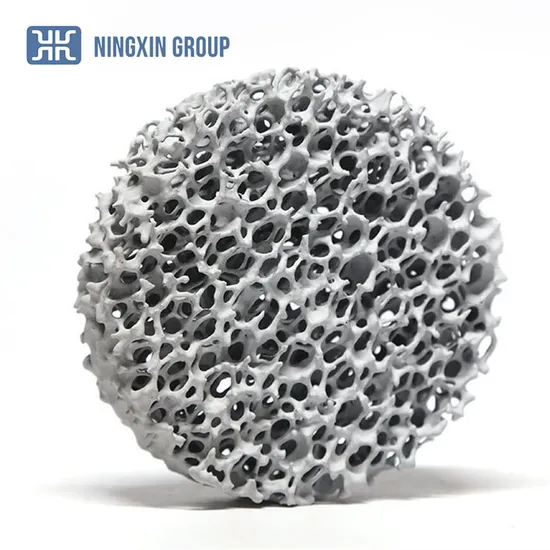

Product Description Silicon Carbide SIC Ceramic Foam Filter for Foundry Molten Metal Gray Iron Ductile Iron Castings Filtration
Model Name: NINGXIN-CFF-S
Application: For the filtration of molten Iron,copper,brass,aluminum and alloy
Ceramic foam filters offer a simple, reliable and costeffective method to remove inclusions. Filtering with CFF is a supplement to metal treatment within the furnace, such as fluxing and degassing or inline filtration.
Ceramic foam filters have an open pore reticulated structure with very high porosity and surface area to trap inclusions. The open foam structures are compose of ceramic material, such as alumina, mullite or silica. Alumina is the most common filter material. Ceramic foam filters operate in a deep bed filtration mode where inclusions smaller than the pore openings are retained throughout the cross-section of the filter.
CFFs typically are a polyurethane foam coated with a ceramic slurry then dried and fired. During firing, the polyurethane foam dissipates leaving behind a porous ceramic structure. The ceramic can be a phosphate-bonded alumina and pore sizes and thicknesses can vary.
Main material Silicon carbide (SIC)
Working Temperature ≤1500ºC
Color Grey
Hole density 10/15/20/25/30/40PPI (PPI=pores per inch)
Porosity(%) 80‐90
Compressive Strength(MPa) ≥1.0 (Room temperature)
Bulk Density(g/cm3) 0.35‐0.55
Thermal shock resistance ≥2times/1100ºC‐Room temperature
