Automatic Spiral Multi Cutter Composite Cans Packing Packaging Cutting Slitting Rewiding Folding Toilet Roll Tape Roll Paper Core Tube Making Winding Machine

Automatic Spiral Multi Cutter Composite Cans Packing Packaging Cutting Slitting Rewiding Folding Toilet Roll Tape Roll Paper Core Tube Making Winding Machine

US$32,000.00
1-2 Sets
US$31,000.00
3+ Sets

Basic Info.

Model NO.
HSS-J600
Paper Core Usage
Paintings Packaging, Instrument Package, Industry
Tube Machine Type
Winding Machine
Gumming Type
Double Side
Layers of Roll Paper
3-8
Reelpipe Speed
3-60 M/Min
Wall Thickness of Paper Tube
0.5-3 mm
Certification
CE
Condition
New
After-sales Service
One Year Warranty
Paper Shelf Type
Integral Reel Stand
Main Motor
5.5 Kw
Cutting Way
Servo Synchronism Multi-Blade Cutting
Transport Package
Wooden Case
Specification
6000*1600*1600 mm
Trademark
Horsen
Origin
China
HS Code
84418090
Production Capacity
20sets/Month

Product Description

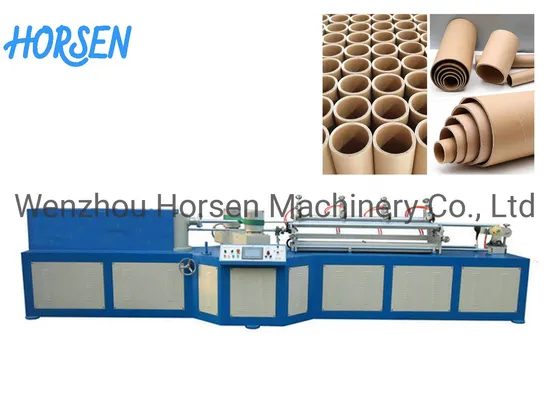

PAPER TUBE MAKING MACHINE
USE: Suitable for all kind of paper tube / paper can production. Such as package tin, tea caddy, food cans, wine cans, fireworks tube, calendar tube, fax paper core, etc.
FEATURE: Numerical control servo cutter device, high precision cutting; Automatically cut, automatically fall pipe, automatically change speed and revert; With online multi-cut blades, no need secondary cutting, save labor and time. Stable production at the highest speed 45 m/min Specification:
Technical Parameter
Number of roller 3-8 layers
Tube diameter 15-100 mm
Tube wall-thickness 0.5-3 mm
Core mould fixed way Flange chuck
winding head 2
Cutting way Servo synchronism multi-blade cutting
Gluing way Double sides
Operator 1-2 person
Winding speed 3-60 m/min
Speed control Transducer
Mainframe size & Weight
Mainframe size 6000*1600*1600 mm
Area space 10000*10000 mm
Weight 3000KG
Driving system
Main motor 5.5 KW
Reducer type WPDO155
Reduce type RV40-1:7.5
Conveyor reducer type 0.37 KW
Cutting motor Servo motor
Cut left-right control Synchronous belt + servo motor
Synchronism control cutting system servo system
Glue pump 750 W

1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
if you have any inquiry, pls feel free to contact us. We will try our best to satisfy with you !
