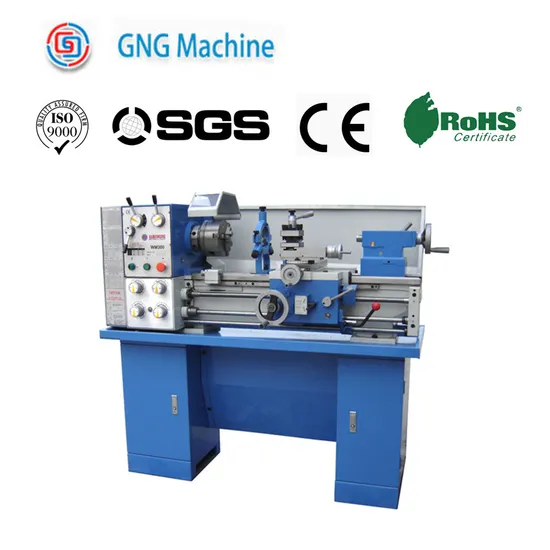

High Precision Metal Hobby Bench Lathe
| US$2,250.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CQ6230D
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Max. Swing Over Bed
300mm
Max. Swing Over Cross Slide
178mm
Max. Swing in Gap
430mm
Centers Distance
750/914mm
Spindle Bore
38mm
Transport Package
Wood Case or Carton
Specification
CE ISO
Trademark
G&G
Origin
China
HS Code
84589900
Production Capacity
50/Per Month
Product Description
Min. Order Quantity: 1 Set/SetsSupply Ability: 300 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: L/C,T/T
Quick Details
Condition: New
Type: Horizontal
CNC or Not: Normal
Automatic Grade: Manual
Max. Swing Diameter: 300mm
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Model Number: CQ6230D
Voltage: 380v
Power(W): 1100w
Dimension(L*W*H): 173x75x151cm
Weight: 550kgs
Certification: CE
After-sales Service Provided: No overseas service provided
lathe machine in blue color: metal lathe machine can be all colour according customer like universal lathe:
Color: blue
Packaging & Delivery
Packaging Details: packed in plywood package. the customer can requested use te Carton Box or in wood case
Delivery Detail: 30-45days
Specifications
Cheaper price lathe /lathe machine
metal Bench lathe/ Hobby lathe machine/single phase lathe CQ6230 made for modulers' DIY
| Model | CQ6230D | ||
| Max. swing over bed | 300mm | ||
| Max. swing over cross slide | 178mm | ||
| Max. swing in gap | 430mm | ||
| Centers distance | 750/914mm | ||
| Spindle bore | 38mm | ||
| Taper of spindle bore | MTNO. 5 | ||
| Spindle speeds | 65-1400rpm (65-1810rpm optional) | ||
| Longitudinal feed per revolution of spindle(32kinds) | 0.052-1.392mm/r0.002" | ||
| Cross feed per revolution of spidle(32kinds) | 0.014-0.3448mm/r0.0007" | ||
| Metric thread can be cut(26kinds) | 0.4-7mm | ||
| Inch threads can be cut (34kinds) | 4-56TPI | ||
| Taper of tailstockquill sleeve | MTNO. 3 | ||
| Power of motor | 1.1KW / 1.5KW | ||
| Net weight | 550kgs | ||
