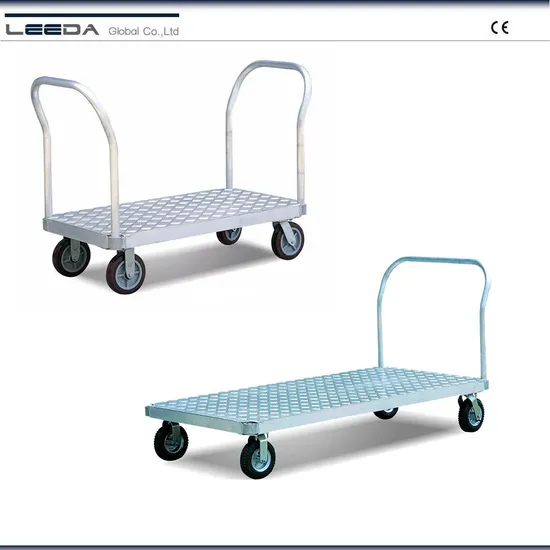

550kg Aluminum Platform Truck CF with 915X1830mm Platform
| US$60.00-118.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
CF3672
Usage
Industrial, Tools, Shopping, Storage
Wheel Type
Solid Wheel
Application
Hot, Wet Application
Type
Light Weight, Corrosion-Resistant
Qty of Handle
One PCS
Option
Additional Handle as Option
Model H24 for Platform
24X36" 24X48"
Model H30 for Platform
30X48" 30X60
Model H36 for Platform
36X72"
Wheel Amount
4
Style
Unfolding
Certification
ISO, CE
Transport Package
Carton
Specification
CE
Trademark
Leeda
Origin
China
HS Code
87168000
Product Description
Aluminum Platform Truck (HL-AF/BF/CF Series)1200-3000lbs capacity
1. Ideally suited for hot, wet applications. 2. Lightweight, corrosion-resistant, aluminum platform trucks have a clean, handsome appearance and are built for heavy-duty use. 3. Use them in the front office, stock room, warehouse, dock area, or laboratory. 4.Unitized box frame is made of high strength all-welded aluminum channel with heavy duty deck. 5. Corner sockets at both ends allow handles to be used on either or both ends of the truck.
6. Two swivel and rigid casters for smooth mobility. 7. Additional handle as an option. 8. Mode H24 for platform 24x36" 24x48" 9. Model H30 for platform 30x48" 30x60 10. Model H36 for platform 36x72"
| Model | Capacity | Platform Size | Platform Height | Handle Height | Caster Wheel | Caster type | Net Weight(kg/lbs) |
| (kg/lbs) | (mm/inch) | (mm/inch) | (mm/inch) | (mm/inch) | |||
| HL-AF2436 | 900/2000 | 610x915/24x36 | 236/9 | 910/35.8 | 125x50/5x2 | Poly | 20/44 |
| HL-AF2448 | 900/2000 | 610x1220/24x36 | 236/9 | 910/35.8 | 125x50/5x2 | Poly | 25.5/56.1 |
| HL-AF3048 | 900/2000 | 760x1220/30x48 | 236/9 | 910/35.8 | 125x50/5x2 | Poly | 28/61.6 |
| HL-AF3060 | 900/2000 | 760x1520/30x60 | 236/9 | 910/35.8 | 125x50/5x2 | Poly | 33/72.6 |
| HL-AF3672 | 900/2000 | 815x1830/36x72 | 236/9 | 910/35.8 | 125x50/5x2 | Poly | 38.5/84.7 |
| HL-BF2436 | 1350/3000 | 610x915/24x36 | 260/10.2 | 940/37 | 150x50/6x2 | Poly | 21/46.2 |
| HL-BF2448 | 1350/3000 | 610x1220/24x48 | 260/10.2 | 940/37 | 150x50/6x2 | Poly | 26.5/58.3 |
| HL-BF3048 | 1350/3000 | 760x1220/30x48 | 260/10.2 | 940/37 | 150x50/6x2 | Poly | 29/63.8 |
| HL-BF3060 | 1100/2400 | 760x1520/30x60 | 260/10.2 | 940/37 | 150x50/6x2 | Poly | 34/74.8 |
| HL-BF3672 | 1100/2400 | 815x1830/36x72 | 260/10.2 | 940/37 | 150x50/6x2 | Poly | 39.5/86.9 |
| HL-CF2436 | 550/1200 | 610x915 /24x36 | 300/12 | 980/38.6 | 200x50/8x2 | Pneumatic | 24/52.8 |
| HL-CF2448 | 550/1200 | 610x1220/24x48 | 300/12 | 980/38.6 | 200x50/8x2 | Pneumatic | 29.5/64.9 |
| HL-CF3048 | 550/1200 | 760x1220/30x48 | 300/12 | 980/38.6 | 200x50/8x2 | Pneumatic | 32/70.4 |
| HL-CF3060 | 550/1200 | 760x1520/30x60 | 300/12 | 980/38.6 | 200x50/8x2 | Pneumatic | 37/81.4 |
| HL-CF3672 | 550/1200 | 815x1830/36x72 | 300/12 | 980/38.6 | 200x50/8x2 | Pneumatic | 42.5/93.5 |
