PE Film Squeezer Compactor Dryer / PP Bags Plastic Agglomerator Granulator Squeezing Machine

Product Description

PE Film Squeezer Compactor Dryer / Pp Bags Plastic Agglomerator Granulator Squeezing Machine Detailed Photos
dewatering/squeezing/squeezer/pelletizing/pelletizer/presser/compressing drying/dryer machine
Product Description
PE Film Squeezer Compactor Dryer / Pp Bags Plastic Agglomerator Granulator Squeezing Machine
This is new type film-squeezing machine which is designed by our company. It use squeezing & dehydration principle, after raw material (LDPE agriculture film, LLDPE strength film, and PP woven/big bags, etc) crushing and washed, this squeezer machine can quickly and effectively remove the water. It is easy to increase the subsequent granulating line production capacity. Advantage:
1. Low power consumption. Main motor power between 75-90kw, no need to connection drying pipe system.Compare transitional horizontal dewatering machine+drying pipe system, can save power 40-50%
2. Small land occupied
3. Low rotation speed, almost no noise
4. Dewatering function is better, final products humidity less then 2%
5.no need extra worker compare with agglomerator ,it is automatically running on line
This Wet film scrap squeezer dryer plastic granulator machine is used after the plastic film/plastic agricultural film/PP woven bags/Space bag/tons bags/thin waste plastics plastic sheets washed,using the squeeze dewatering principle,squeeze the water from the plastic by rotating screw.The water will flow out from the bottom,the plastic will get hot by high intensity extrusion friction,and will plasticizing mildly after the mould heating.Finally the blade will cut the granules from the mould.
Product Parameters

Main parameter Pe film squeezing granulator/plastic squeezer

300kg Pe Film Squeezer And Granulator Machine For Recycling
Model	XT-300	Capacity	300kg per hour
Power	55KW	The Final Moisture	About 3%-8%
Screw Diameter	250mm	Silo Size	About 800 L
Heating Power	2.2KW	Machine Size	About 3200*1250*2250

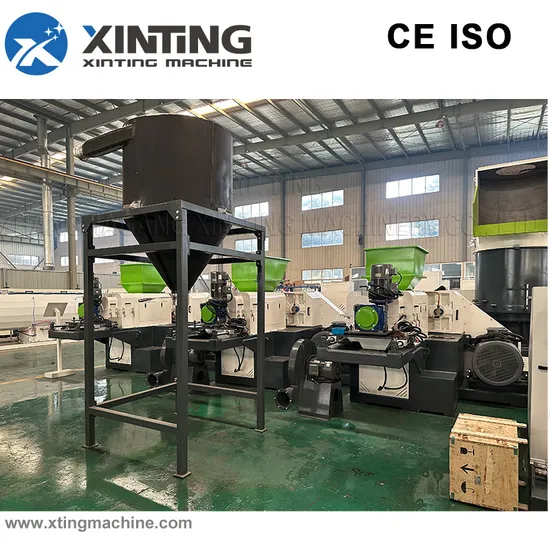

Some picture for your reference of PE film squeezer
if you have any request you can contact sweety tang
