High-Performance 16CH Xvr Hybrid DVR Recorder for Ahd Tvi Cvi IP WiFi Cameras

Product Description

Product Description

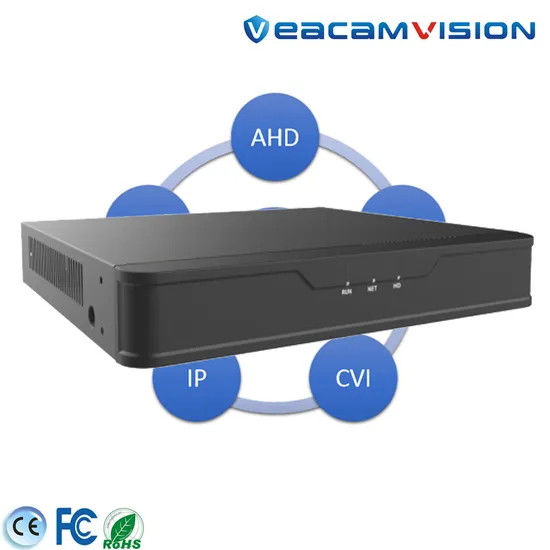

High-Performance 16CH XVR Hybrid DVR Recorder
High-Performance 16CH XVR Hybrid DVR Recorder Introducing the High-Performance 16CH XVR Hybrid DVR Recorder by Veacam Electronics Co., Ltd. This state-of-the-art recorder is designed to provide you with a seamless and reliable surveillance experience.
Key Features:
Supports H.265/H.264 video formats for superior video quality.
Allows audio transmission over coaxial cable, ensuring clear and synchronized audio with your video footage.
Compatible with TVI, AHD, CVI, CVBS, and IP cameras, providing you with flexible options for your surveillance system.
Features a 16-channel BNC input for easy connection to multiple cameras.
Equipped with 1 HDMI output and 1 VGA output, both capable of delivering high-definition video at up to 1920*1080 resolution.
Enables long transmission distances over coaxial cable, allowing you to set up your cameras in various locations without compromising signal quality.
Upgrade your surveillance system with the High-Performance 16CH XVR Hybrid DVR Recorder. With its advanced features and reliable performance, you can trust that your security needs will be met with ease.
Product Parameters

Model	VCXVR-516UA1S
Video/Audio Input
Analog Video Input	16-ch, BNC
IP Video Input	8-ch(only IP up to 16ch), each channel up to 8MP
Supported Analog Camera Types	Support AHD input: 5MP@12fps 4MP@15fps 1080P@30fps Support TVI input: 5MP@12fps 4MP@15fps 1080P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input
Audio Input	1-ch, RCA
Network
Incoming Bandwidth	40Mbps (up to 56Mbps after all analog camera conversion)
Outgoing Bandwidth	64Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
VGA Output	1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output	1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output	1-ch, RCA
Two-way Audio	1-ch, RCA
Synchronous Playback	16-ch
Encoding
Recording Resolution	5MP Lite/4MP Lite /1080P/1080P Lite/720P/D1/CIF
Recording Frame Rate	Main stream:	Sub stream:
	5MP Lite@6fps	D1@6fps
	4MP Lite@8fps	D1@8fps
	1080P Lite@15fps	D1@6fps
	720P@15fps	D1@10fps
Hard Disk
SATA	1 SATA interface
Capacity	Up to 6TB for each HDD
External Interface
Network Interface	1RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel:2 x USB2.0
Serial Interface	1 x RS485
General
Power Supply	12V DC Power Consumption: ≤ 10 W( without HDD )
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)	260mm ×243mm× 39mm (10.1" × 9.6"×1.8")
Weight ( without HDD )	≤1.1 Kg ( 2.42lb )

Detailed Photos

Company Profile
Certifications
Our Advantages

FAQ
High Definition 5MP True WDR Network Camera with Human Detection and Built-in Mic Introducing our High Definition 5MP True WDR Network Camera with Human Detection and Built-in Mic, brought to you by Veacam Electronics Co., Ltd. This state-of-the-art surveillance camera is designed to provide you with exceptional security and peace of mind.
With its high definition capabilities, this camera delivers crystal clear images and videos, allowing you to capture every detail with precision. The True WDR technology ensures optimal image quality even in challenging lighting conditions, providing you with accurate and reliable surveillance footage.
Equipped with advanced human detection technology, this camera can intelligently identify human movements, minimizing false alarms and ensuring that you are alerted only when necessary. The built-in microphone allows for clear audio recording, enhancing the overall surveillance experience.
Designed for outdoor use, this camera is waterproof and weatherproof, making it suitable for any environment. Its durable construction ensures long-lasting performance, even in harsh conditions. The IP67 rating guarantees protection against dust and water, ensuring reliable operation at all times.
With its easy installation and flexible connectivity options, this camera can be seamlessly integrated into your existing security system. Whether you prefer DHL/UPS/Fedex or other air and sea shipments, we can accommodate your shipping preferences.
At Veacam Electronics Co., Ltd, we prioritize customer satisfaction. We offer various payment methods, including T/T, LC, Western Union, and Trade Assurance, to ensure a convenient and secure transaction process.
Customization is also available. You can print your logo on the product, making it uniquely yours. Depending on your requirements, we can adjust the minimum order quantity to suit your needs. We even support small test orders for all customers.
If you would like to experience the quality of our product firsthand, we offer samples for a fee. Rest assured, the sample fee will be refunded in your later order.
Don't miss out on the opportunity to enhance your security system with our High Definition 5MP True WDR Network Camera with Human Detection and Built-in Mic. Contact us now for more details and let us help you achieve unparalleled surveillance.
