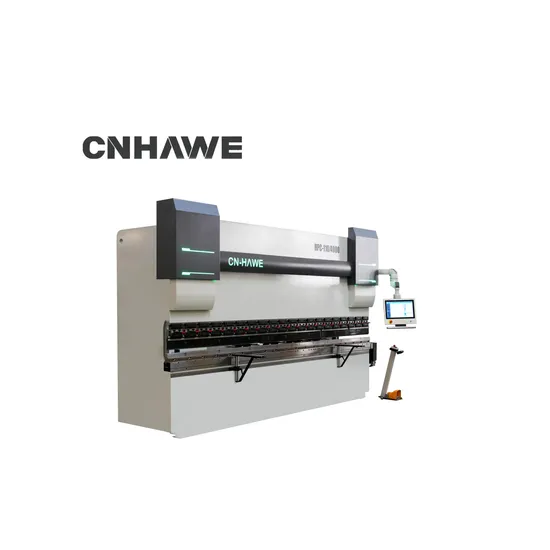

Cnhawe Hpc 110t4000mm 4+1/6+1 Multi Axis Hydraulic Press Brake Sheet Metal Bending Machine with Delem/Esa/Cybelec Control System.

Product Description

Product Description
HPC EconomiAc CNC Press Brake
Press brakes stand as vital tools in the realm of sheet metal processing, transforming metal sheets into predetermined shapes and angles through the application of pressure. The essential components of press brakes include a workbench, a mold, and a power system. The workbench provides a robust platform to support the sheet, while the mold is meticulously crafted to match the desired shape. The power system delivers the precise pressure and motion control necessary for accurate bending. The precision and stability of these press brakes are crucial, directly impacting the quality of the finished parts. Hence, the design and manufacturing processes are held to the highest standards.
After over a decade of continuous innovation, CNHAWE's electro-hydraulic servo control technology has reached unparalleled heights. Within the industry, the seamless integration of this technology with press brakes has ushered in a groundbreaking era, consistently propelling the advancement of the sheet metal fabrication industry.Product Parameters

Model	Bending Force	Bending Length (A)	Oil Tank	Approaching Speed	Progress Rate	Return Speed	Column Distance (B)	Throat Depth (C)	Slider Travel (D)	Open Height (E)	Weight	Dimensions
Unit	KN	mm	L	mm/s	mm/s	mm/s	mm	mm	mm	mm	Ton	L*W*H (mm)
HPC-65/2500	650	2500	200	240	20	240	2150	350	180	450	4.14	2710*1400*2400
HPC-110/3100	1100	3100	230	220	14	180	2600	410	220	490	7	3260*1540*2610
HPC-110/4000	1100	4000	230	220	14	180	3300	410	220	490	8.1	4060*1540*2610
HPC-135/4000	1350	4000	230	220	14	180	3300	410	220	490	8.3	4060*1540*2610
HPC-160/3100	1600	3100	230	200	16	180	2600	410	220	490	8.6	3270*1550*2700
HPC-160/4000	1600	4000	230	200	16	180	3300	410	220	490	9.9	4070*1550*2700
HPC-250/3100	2500	3100	230	140	12	160	2600	410	220	490	11.24	3280*1930*2740
HPC-250/4000	2500	4000	230	140	12	160	3300	410	220	490	12.8	4080*1930*2740

Detailed Photos
CNC Controller
With the implementation of manual quick clamps, the upper punch tools on our press brake can be swiftly and effortlessly replaced. This innovation not only saves valuable time but also significantly enhances operational efficiency.Main Servo Motor
Servo motors have taken the lead in the field of industrial automation, delivering unmatched dynamic performance and elevating machine production efficiency with minimal energy consumption. They have emerged as the top choice for numerous enterprises. Compared to traditional motors, servo motors can cut energy consumption by up to 35%, enabling customers to boost efficiency and substantially lower operating costs in the production process.Additionally, we offer high-efficiency energy-saving Siemens motors from Germany to cater to customers' standard production requirements. These motors are far more efficient than standard ones, significantly enhancing work efficiency. They incorporate cutting-edge technology and design to ensure stable, reliable performance across various working conditions. Oil Pump
Crafted from high-strength cast iron, CNHAWE's oil pump offers unparalleled stability and reliability under high pressure and load conditions. Its unique internal design optimizes efficiency and performance with a precise mechanical structure and advanced process flow. A standout feature of this oil pump is its noise reduction capability, minimizing operational noise for a quieter working environment. Additionally, the oil pump boasts low sensitivity to oil pollution, maintaining normal function in impurity-laden environments, significantly extending its lifespan.Ball Screw & Guide
Our equipment boasts ball screws and linear guide rails, ensuring flawless and dependable performance. Collaborations with esteemed brands from Japan and Taiwan, China, secure the stability of motion control in our press brake.
Servo Hydraulic System
The CNC press brake's complete servo hydraulic system includes critical elements such as motor, oil pump, filter elements, valve group, hydraulic cylinders, and oil tank. We have chosen HAWE, a prestigious German manufacturer, as our core partner. Their superior products, known for high performance and low failure rates, form a robust foundation for our system. Furthermore, our hydraulic control system incorporates an electro-hydraulic servo synchronization design, offering minimal intervals between hydraulic cylinders. This design enhances resistance to eccentric loads, ensures precise synchronization, and exhibits excellent power density ratios, all achieved at a reduced cost.FAQ
Q1: How to get an accurate quotation from us?
A1: Please provide us with detailed information on the material, maximum thickness, and maximum width.
Q2: Can you provide OEM service?
A1: Yes, we can. Your design is accepted and your logo can be used on the machine.
Q3: How much is the shipping cost from China to your country?
A3: We can send the machine to your port or door address by sea or air. Please tell us your nearest port or address and zip code. We have reliable shipping agents to ensure safe, convenient, and on-time delivery.
Q4: How to operate this machine?
A4: Video line from our factory or we send you the video directly.
Q5: Do you provide teaching and training?
A5: Training in supplier factory.
