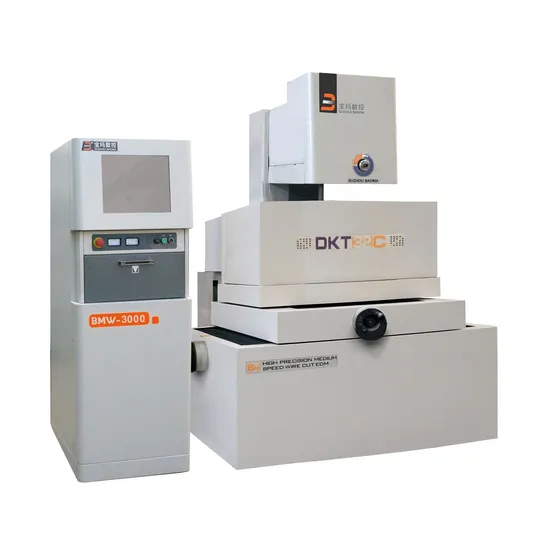

CNC Wire Cut EDM [DKT32C]
1..More than 20 years experiences on EDM, 56,000m2 Square meters factory area, 300 employees
2.. hundreds of honors and more than 47 PATENTS
3.. 7 steps checking for each machine by more than 25 QCS
4.. 6S management system & completed products control system( unique ID for each machine for tracking)
5.. Over 56,000 machines installed in China & other more than 60 countries.
7.. 20 domestic service engineers&7 overseas engineers for swift after-sales service. Keep your machines working.
8.. Large production capacity: 100% on time delivery.
Max cutting speed 220mm2/min Each 300, 000mm2 wear 0.01mm wire.
1. Basic accessories of controller BMW-5000 model with New High frequency Power supply.
2. Double Direction Auto-wire tension system
3. With BMXP software, which run base on Window XP, can use Autocad directly
4. MITSUBISHI inverter
5. Linear Guide way from PMI
6. LCD monitor
7. Industrial computer
8. Central lubricate system
9. CE certificate from EU.
1. The casting for the main machine bed, using high rigid HT300, which made by a famous Japanese manufacturer. Integrated structure design, all casting parts are made with the procedure of resin-send and twice heat treatment to improve the max load weight and keep a good precision for long time and avoid the distortion.
3. The controller equipped the BMXP Intelligent software, which integrates the program and control and based on Windows XP. This new designed BMXP software is the unique software for WEDM running on the condition of windows XP.
4. Using the PCI slot controller card and the High-tech Industrial computer, which greatly enhanced the stability of control and greatly reduced the computer the failure rate
5. To achieve a fast and convenient computer communication network, through network technology, graphics, data and program transmission, can be directly controlled by the technical design department since the first establishment of a program
6. Embedded Control system can be connected with many design software smoothly.
7. The search function of mechanical origin enable the transmission screw pitch compensation, in order to greatly improve the positioning accuracy, especially in Servo control system.
8. The control parameters of pulse power is directly by the software, in order to not only improve anti-jamming capability in pulse power output, but also increase the roughness of work piece.
9. Variety of pulse power can be chosen, which is suited for a number of processing conditions to improve the cutting ability of the high precision parts.
10. With a large database storage capacity, which accumulated from many experiences. User can choose the suitable parameter according to deferent working conditions. Users can adjust machining parameters to establish a database at any time according to their own experience
11. Three layer filters can prolong the using life of the working solution and improve the finishing, with BAOMA series working solution can achieve a better performance and PRO-environment.
12. Can be equipped with the close-loop control system, use the MITSUBISHI, YASKAWA servo control system and servo motors.
13. The wire moving is controlled by EMERSON transducer, which adopts unlimited adjustment.
14. The processing components involve godet mechanism, the best roughness Ra≤ 1.5μ M (the finishing can be improved greatly by using the BM working solution)
15. Customrized extra-big machine can be manufactured in our company.
Main performance indexes and technical requirements
1, BMXP software Functions:
(1)Coordinate system: Absolute coordinate, incremental coordinate (relative coordinate)
(2)Functions of coordinate transforming, zooming in and zooming out, rotating and tracking display in real time(3)Functions of interpolation of straight line and circular arc
(4)Function of taper processing
(5)Function of processing different top and bottom abnormities parts
(6)Auto-handle for short circuit and wire-break
(7)Functions of memorizing when power was cut and auto-stop after processing
(8)Functions of auto edge-touching position and auto center finding
(9)Function of auto-adding transitional arc (Arbitrary angle)
(10)Function o Functions of menu technology and auto-programming ward
(11)Functions of menu technology and auto-programming
(12)AUTOCAD can be used to program directly in the software.
4. Axis processing
(2)Running environment
(A)Temperature: 5-40 degree
Relative humidity: 40%~80%

CNC Wire Cut EDM [DK7732C]		Unit	DKT32C
Worktable size (L× W)		mm	635× 420
Table travel(X× Y)		mm	320× 400
Max. workpiece thickness		mm	300
Max. taper angle/plate thickness		degree/mm	± 6° /100
Max. machining speed		mm² /min	220
Precision		mm	≤ +/-0.004
Max. working current		A	9
Roughness, three cutting		μ m	≤ 0.8
Wire diameter		mm	0.15~0.2
Wire travelling speed		m/min	5~11
Load of table		Kg	400
Working solution			working solution new GP working solution
Working reservoir capacity		L	100
Power supply			3N-380V/50Hz Customrized
Power consumption		KVA	3
Wire guide frame			Adjustable
Machine dimensions(L× W× H)		mm	1450× 1000× 1550
Package dimensions(L× W× H)		mm	1800× 1400× 1800
Machine weight		Kg	1700
Controller type			BMW-5000

More than 25QC People, more than 7 steps checking for each machine
