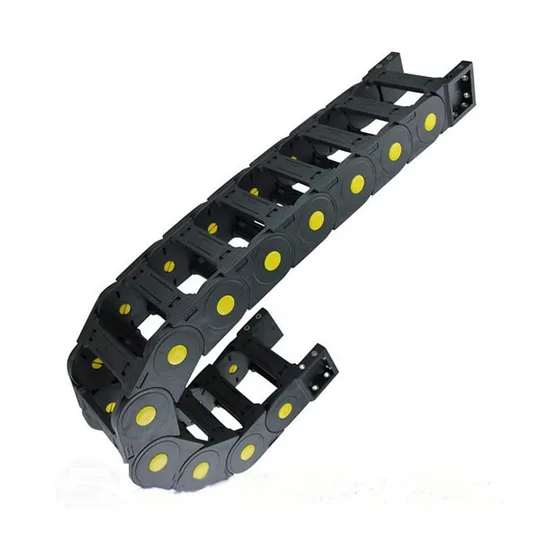

10X15 Plastic Cable Drag Chain for CNC Machine
| US$2.20 | 100 Meters (MOQ) |
Basic Info.
Model NO.
TL
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.09~0.1(mm)
Performance Classification
High-End CNC Machine Tools
Certification
ISO 9001
Condition
New
Weight (Kg)
5
Type
Drag Chain
Material
PA66
Function
Protected Cable
Application1
Moving Cable Protection
Transport Package
Plywood Boxes
Specification
TL
Trademark
NO
HS Code
3926901000
Production Capacity
1000 Meters Per Day
Product Description
Product DescriptionPlastic Drag Chain is suitable for the nc machine tools, machining centers, automated machinery and production lines and other kinds of machine tools, robots, transport machinery, measuring instruments, handling device and other liquid drive control as a wire, cable, gas hose protection device, can take on machine tools, machinery and equipment moving parts run harmoniously, can play a safety protection and the ability to guide, can prolong protected wire, cable, liquid, gas hose service life and reduce consumption, can greatly improve the machine tools, machinery and equipment of wire, cable, liquid, gas hose to confirm the unorderly situation existing in distribution, make it tidy and rules is arranged together, can enhance the overall artistic effect of machine tools.
Structure
Drag Chain looks like the tank chain drag chain, consists of a lot of link. Link is composed of the up and down or so four sections, each section can open, convenient installation, open the cover plate after put in the cable, tubing, the trachea, etc.
Material and Performance
Material: Reinforced nylon, good toughness and wear resistance, acid and alkali resistant ability.Operating Life: Under normal use, up to 5 million reciprocating motion.
Drag Chain Selection
High: Select the built-in cable, tubing, the trachea and conduit maximum height for reference, the height of the drag chain at least 10% of the remaining space.
Wide: Choose the built-in cable, tubing, trachea, the sum of its outer diameter for reference, the width of the drag chain at least 10% of the remaining space.
| Type | Inside Diameter (height×width) (mm) | Outside Diameter (height×width) (mm) | Bending radius (mm) | Pitch (mm) |
| TL7.1 | 7X7 | 10X12.5 | 15.28 | 16.7 |
| TL10.1 | 10X6 | 13.5X13.5 | 18.28.38 | 20 |
| TL10.2 | 10X10 | 15X17.5 | ||
| TL10.3 | 10X15 | 16X23 | ||
| TL10.4 | 10X20 | 15.5X28 | ||
| TL10.5 | 10X30 | 15X38 | ||
| TL15.1 | 15X15 | 20X25 | 28.38.48 | 20 |
| TL15.2 | 15X20 | 20X29 | ||
| TL15.3 | 15X30 | 20X40 | ||
| TL15.4 | 15X40 | 20X50 | ||
| TL15.5 | 15X50 | 20X60 | ||
| TL18.1 | 18X18 | 24X30 | 28.38.48.75 | 33.5 |
| TL18.2 | 18X25 | 24X36 | ||
| TL18.3 | 18X37 | 24X49 | ||
| TL18.4 | 18X50 | 24X61 | ||
| TL25.1 | 25X25 | 35X38 | 40.55.75.100.125.150.175. 190.200.250 | 46 |
| TL25.2 | 25X38 | 35X51 | ||
| TL25.3 | 25X50 | 35X65 | ||
| TL25.4 | 25X57 | 35X71 | ||
| TL25.5 | 25X77 | 35X91 |
| Type | Inside Diameter (height×width) (mm) | Outside Diameter (height×width) (mm) | Bending radius (mm) | Pitch (mm) |
| TL20.1 | 20X38 | 35X55 | 55.75.100 | 45.5 |
| TL20.2 | 20X50 | 35X65 | ||
| TL20.3 | 20X60 | 35X75 | ||
| TL20.4 | 20X75 | 35X90 | ||
| TL20.5 | 20X100 | 35X116 | ||
| TL20.6 | 20X125 | 35X141 | ||
| TL25.1 | 25X38 | 40X55 | 55.75.100.125.150 | 45.5 |
| TL25.2 | 25X50 | 40X65 | ||
| TL25.3 | 25X60 | 40X75 | ||
| TL25.4 | 25X75 | 40X90 | ||
| TL25.5 | 25X100 | 40X115 | ||
| TL25.6 | 25X125 | 40X142 | ||
| TL30.1 | 30X38 | 45X58 | 55.75.100.125.150 | 45.5 |
| TL30.2 | 30X50 | 45X70 | ||
| TL30.3 | 30X60 | 45X80 | ||
| TL30.4 | 30X75 | 45X95 | ||
| TL30.5 | 30X100 | 45X120 | ||
| TL30.6 | 30X125 | 45X145 | ||
| TL35.1 | 35X38 | 55X63 | 75.100.125.150.200 | 66.5 |
| TL35.2 | 35X50 | 55X75 | ||
| TL35.3 | 35X60 | 55X85 | ||
| TL35.4 | 35X75 | 55X100 | ||
| TL35.5 | 35X90 | 55X115 | ||
| TL35.6 | 35X100 | 55X125 | ||
| TL35.7 | 35X117 | 55X142 | ||
| TL35.8 | 35X125 | 55X150 | ||
| TL35.9 | 35X130 | 55X155 | ||
| TL35.10 | 35X150 | 55X175 | ||
| TL35.11 | 35X154 | 55X179 | ||
| TL35.12 | 35X175 | 55X200 | ||
| TL35.13 | 35X200 | 55X225 | ||
| TL35.14 | 35X250 | 55X275 | ||
| TL35.15 | 35X300 | 55X325 | ||
| TL45.1 | 45X50 | 65X77 | 75.100.125.150.200.250 | 77 |
| TL45.2 | 45X60 | 65X87 | ||
| TL45.3 | 45X75 | 65X102 | ||
| TL45.4 | 45X90 | 65X117 | ||
| TL45.5 | 45X100 | 65X127 | ||
| TL45.6 | 45X117 | 65X144 | ||
| TL45.7 | 45X125 | 65X152 | ||
| TL45.8 | 45X130 | 65X157 | ||
| TL45.9 | 45X150 | 65X177 | ||
| TL45.10 | 45X154 | 65X181 | ||
| TL45.11 | 45X175 | 65X202 | ||
| TL45.12 | 45X200 | 65X227 | ||
| TL45.13 | 45X250 | 65X277 | ||
| TL45.14 | 45X300 | 65X327 | ||
| TL55.1 | 55X50 | 75X80 | 75.100.125.150.200.250.300 | 77 |
| TL55.2 | 55X60 | 75X90 | ||
| TL55.3 | 55X75 | 75X105 | ||
| TL55.4 | 55X90 | 75X120 | ||
| TL55.5 | 55X100 | 75X130 | ||
| TL55.6 | 55X117 | 75X147 | ||
| TL55.7 | 55X125 | 75X155 | ||
| TL55.8 | 55X130 | 75X160 | ||
| TL55.9 | 55X150 | 75X180 | ||
| TL55.10 | 55X154 | 75X184 | ||
| TL55.11 | 55X175 | 75X205 | ||
| TL55.12 | 55X200 | 75X230 | ||
| TL55.13 | 55X250 | 75X280 | ||
| TL55.14 | 55X300 | 75X330 | ||
| TL65.1 | 65X50 | 85X82 | 125.150.200.250.300 | 77 |
| TL65.2 | 65X60 | 82X92 | ||
| TL65.3 | 65X75 | 85X107 | ||
| TL65.4 | 65X90 | 85X122 | ||
| TL65.5 | 65X100 | 85X132 | ||
| TL65.6 | 65X117 | 85X149 | ||
| TL65.7 | 65X125 | 85X157 | ||
| TL65.8 | 65X130 | 85X162 | ||
| TL65.9 | 65X150 | 85X182 | ||
| TL65.10 | 65X154 | 85X186 | ||
| TL65.11 | 65X175 | 85X207 | ||
| TL65.12 | 65X200 | 85X232 | ||
| TL65.13 | 65X250 | 85X285 | ||
| TL65.14 | 65X300 | 85X335 | ||
| TL80.1 | 80X75 | 106X120 | 150.200.250.300 | 100 |
| TL80.2 | 80X100 | 106X145 | ||
| TL80.3 | 80X125 | 106X170 | ||
| TL80.4 | 80X150 | 106X195 | ||
| TL80.5 | 80X200 | 106X245 | ||
| TL80.6 | 80X250 | 106X295 | ||
| TL80.7 | 80X300 | 106X345 | ||
| TL80.8 | 80X350 | 106X395 | ||
| More than drag chain bridge and totally enclosed, also can make double row | ||||
