Honed Tube for Hydraulic Cylinder with Good Quality and Price

Product Description

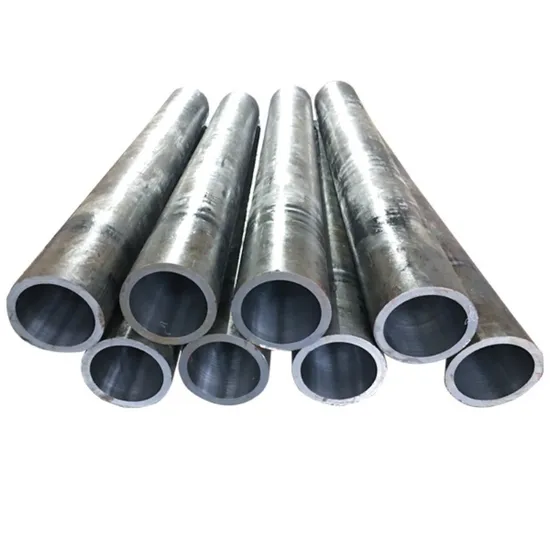

Honed tube for hydraulic cylinder with good quality and price
Product Description
The honed tube is a tool used to grind, trim or finish the hole in the cylinder. It can accurately remove unevenness, oxidation layer or other impurities on the inner surface of the cylinder to improve the accuracy and surface quality of the cylinder. Through the use of honing pipe, the inner hole of the cylinder can reach the specific size, shape and finish requirements
Detailed Photos
Product Parameters Please call me or email to me if you need other specical sizes.

OD(mm)	ID(mm)	OD(mm)	ID(mm)	OD(mm)	ID(mm)	OD(mm)	ID(mm)
40	32	107	100	180	160	340	320
50	40	108	100	184	160	351	320
55	40	110	100	194	160	377	320
55	50	112	100	203	160	402	320
60	50	114	100	194	180	426	320
63	50	120	100	203	180	370	350
65	50	118	100	208	180	377	350
68	50	121	100	210	180	400	350
70	50	127	100	213	180	402	350
70	60	120	110	216	180	426	350
75	60	121	110	219	180	380	360
76	60	125	110	235	180	402	360
80	60	127	110	213	200	426	360
73	63	133	110	216	200	450	360
76	63	140	110	219	200	480	360
78	63	146	110	230	200	426	380
83	63	130	120	235	200	420	400
80	65	140	120	245	200	440	400
85	65	145	120	235	220	450	400
90	65	132	125	240	220	460	400
80	70	133	125	245	220	470	400
83	70	135	125	250	220	480	400
85	70	140	125	255	220	490	400
90	70	145	125	260	220	500	400
95	70	152	125	266	220	508	400
85	75	159	125	270	220	520	400
90	75	168	125	273	220	550	400
95	75	152	130	245	230	440	420
86	80	156	130	260	230	510	420
90	80	159	130	273	230	550	420
93	80	159	135	273	240	550	450
95	80	152	140	266	250	470	450
100	80	159	140	273	250	530	500
102	80	168	140	299	250	590	500
108	80	180	140	325	250	600	570
100	85	160	150	351	250	620	580
100	90	168	150	299	280	630	600
102	90	175	150	325	280	720	600
105	90	180	150	351	288	850	700
108	90	194	150	377	288	1000	800
110	90	168	160	320	300	1200	1000
114	90	170	160	351	300
107	100	175	160	377	300

Work flow
Application Honing tube is widely used in machining cylinder holes in machinery manufacturing, automobile manufacturing, aerospace and other fields. It can handle cylinders of different materials, such as steel, aluminum, copper, etc., to meet the needs of various engineering projects.


Packaging & Shipping Usually we put anti-rust oil on the inside and outside of the pipes, cover it with a suitable plastic lid, and then wrap both ends or the whole body with bubble bags and snake bags. For some goods, they need to ship by LCL, we will packed in wooden boxes. For some customers who have special requirements, we will also do special treatment accordingly.


FAQ A: Can your products or machines be customized?Q: Yes,we are a professional manufacturer specializing in the production of cylinder tubes ranging from φ 32 to φ 1600 for ID, piston rods ranging from φ 6 to φ 1600 for diameter and hollow piston rods for cylinders. Our products also include hydraulic cylinders, pneumatic cylinders, high precision honing machine, hydraulic cold drawing machine, skiving and burnishing machine, hydraulic pressing machine and a variety of corresponding spare parts.
A: Can I customize product to suit my need?
Q: Yes, of course you can. If you have the drawing or special requirements, send it to me in advance, then I can produce according to your requirements.
A: How can I track my order?
Q: After we receive the deposit, we will buy raw material and update the progress to you erevy steps. While you have question, you can also let me know, we will explain to you about that.
A: What about the transportation?
Q: Usually we ship by sea transportation, because it is more convenient and cheaper for big machine. Of course, if you have any other requirements, we can ship accordingly.
