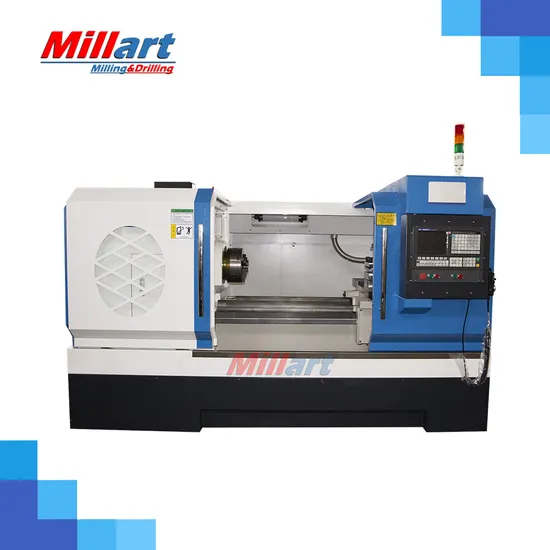

High Precision CNC Lathe Machine Ck6150, Horizontal Metal Flant Bed CNC Lathe Machine

Product Description

Product description:
Technical parameter :
Specifications

Model		CK6150
Scope of work	Max. swing over bed	φ500mm
	Max. swing over cross slide	φ290 mm
	Max. processing diameter	φ500,φ460*mm
	Distance between centers	1000mm
	X axis travel	290mm
	Z axis travel	920 mm
	X axis fast movement	6m/min
	Z axis fast movement	8m/min
Spindle	Spindle nose	A28
	Spindle hole	φ82mm
	Spindle taper	φ90,1:20mm
	Spindle speed	45~1600rpm
	Gears of spindle speeds	Mechanical 3 gears, stepless within the gears
	Spindle maximum output torque	534Nm
	Spindle motor power	7.5kw
	chuck size	Φ250 mm
Tool Holder type		Vertical 4 station
tool size	External round cutter	25X25mm
	Boring bar diameter	25×32mm
Center height (from bed foot)		1085mm
accuracy	Positioning accuracy	≤0.01
		≤0.015
	Repeat positioning accuracy	≤0.01
		≤0.010
	roundness	0.007mm
	Diameter uniformity	0.03/300mm
	Flatness	≤0.02/diameter300
	Surface roughness (steel parts)	Ra13.2μm
Tailstock	Dia.of tailstock sleeve	φ75 mm
	Travel of tailstock sleeve	150mm
	Taper of tailstock sleeve	MT5
Machine weight(without package)		2280kg
overall dimensions		2600*1410*1540mm

Standard accessories:
Fanuc 0I Mate TD controller
inverter motor 7.5kw
4 station electric turret
250 mm manual chuck
manual tailstock
integrated automatic lubrication system
coolant system
lighten system
Auto chip conveyor
Optional accessories:
servo motor 7.5/11 kw
inverter motor 11 kw
6 station or 8 station electric turret
10″Non-through hole hydraulic chuck
10″through hole hydraulic chuck
10″Non-through hole hydraulic chuck (Taiwan)
10″through hole hydraulic chuck(Taiwan)
steady rest
Follow rest
