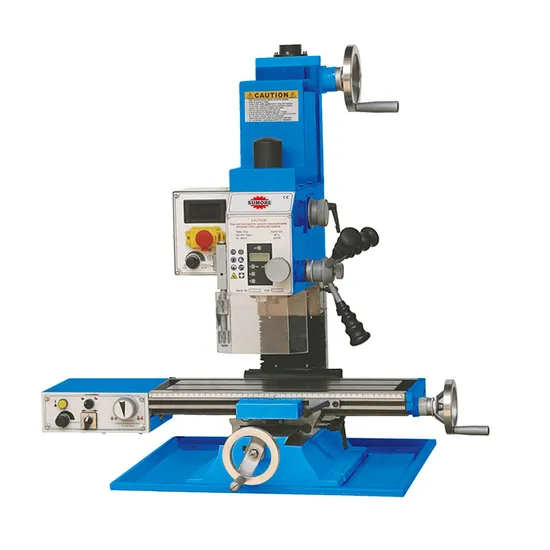

China Normal Precision New Sumore Heavy Rice Mill Universal Milling Drilling Machine
| US$550.00-980.00 | 5 set (MOQ) |
Basic Info.
Model NO.
SP2217-II
Object
Gear
Structure
Desktop
Milling Cutter Type
End Mill
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE
Condition
New
Drilling Capacity
20mm
End Milling Capacity
20mm
Face Milling Capacity
63mm
Z-Axis Travel(Headstock)
380mm
X-Axis Travel(Cross)
280/480mm
Y-Axis Travel(Longitudinal)
175mm
Spindle Taper
Mt2
Weight(Net/Gross)
110/135kg 122/147kg
Packing Size
670/870X550X860mm
Processing Material
Copper,Aluminium,Metal,Glass
Key Word
Universal Vertical Drilling and Milling Machine
Transport Package
Wood Box
Trademark
SUMORE
Origin
China
HS Code
8459619000
Production Capacity
1000set
Product Description
Product DescriptionSP2217-IISUMORE small milling drilling machine cheap mini torno fresadora Universal Vertical Drilling and milling machine for metal SP2217-I Hobby desktop mini desktop mill drill milling machine Mini metal milling machine made in China, but same quality with Japanese made milling machine
Quick detais
1.Drilling capacity:20mm
2.End mill capacity:20mm
3.Face milling capacity:63mm
4.Head tilt left & right:+90°
4.Spindle taper:MT3 or R8
5.Spindle speed: 50-2250rpm
7.Working tabel:500*180/700*180mm
7.Power:750W
Features/Advantages
Robust Construction & Stable PerformanceBrushless Motor & Variable Spindle SpeedFine & Smooth Feeding Movement on Every DirectionsHigh Precision for Model EngineeringChangable Table Length for Different WorkpiecesOptional Spindle Speed & Cutting Depth Digital ReadoutOptional Automatic Longitudinal Feeder
Product Parameters
| Drilling capacity | 20mm |
| End milling capacity | 20mm |
| Face milling capacity | 63mm |
| Table size | 500/700*180mm |
| T-slot | 12mm |
| X-axis travel | 280/480mm |
| Y-axis travel | 175mm |
| Z-axis travel | 380mm |
| Taper of spindle bore | MT2 |
| Sleeve travel | 50mm |
| Range of spindle speeds | 50-2250rpm |
| Head rotation | ±90° |
| Motor | 750W |
| Packing size | 670/870*550*860mm |
| N.W. | 110/122Kg |
| G.W. | 135/147Kg |
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
