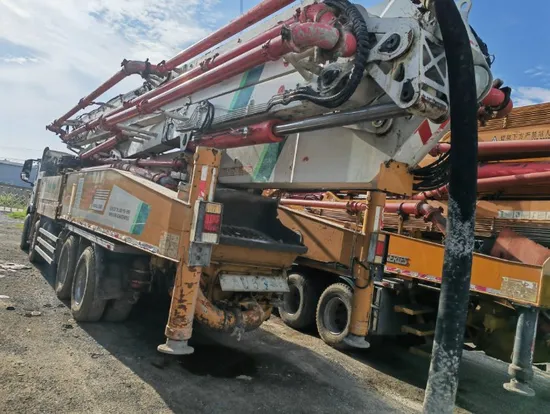

Good Quality 62m Hb62K Chinese Used Diesel Truck for Sale
| US$70,000.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HB62K
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
170m³/H
Feeding Height
1540mm
Vibrating Amplitude
2.4mm
Certification
ISO9001: 2000, CE
Condition
Used
Color
White
Power Type
Diesel
Weight
49000 Kg
Max. Vertical Conveying Distance
61.1m
Max. Horizontal Conveying Distance
55.9m
Model Number
Hb62K-6c
Concrete Pumping Pressure
8.6MPa
Slewing Angle
±270°
Theoretical Pumping Times
21~23times/Min
Transport Package
Bulk Cargo Shipping
Specification
15200*2500*4000mm
Trademark
Teila
Origin
China
HS Code
8705909100
Production Capacity
500pieces/Year
Product Description
Specification| Description | Unit | Parameter value | |
| Outline dimension | mm | 15200×2500×4000 | |
| Overall weight | kg | 49000 | |
| Chassis | Model | | Actros4141 8×4 |
| Manufacturer | | | |
| Max. speed | km/h | 85 | |
| Max. grade-ability | % | 51.4 | |
| Wheelbase | mm | 2300+4000+1350 | |
| Engine | Model | | OM501LA·IV/3 |
| Max. power | kW | 305 | |
| Max. torque | N·m/(r/min) | 2000/1080 | |
| Displacement | L | 11.946 | |
| Emission standard | | Eruo IV | |
| Pumping system | Theoretical output | m³/h | 170 |
| Concrete pumping pressure | MPa | 8 | |
| Theoretical pumping times | Time/min | 21~23 | |
| Delivery cylinder diameter ×stroke | mm | φ260×2200 | |
| Max. diameter of pumping concrete | mm | ≤40 | |
| Filling height | mm | 1540 | |
| Concrete slump range | cm | 8~23 | |
| Placing boom | Reach height | m | 61.1 |
| Reach depth | m | 43.6 | |
| Slewingradius | m | 55.9 | |
| Slewing angle | ° | ±270 | |
| Unfolding angle of the 1st section | ° | 90 | |
| Unfolding angle of the 2nd section | ° | 180 | |
| Unfolding angle of the 3rd section | ° | 180 | |
| Unfolding angle of the 4th section | ° | 240 | |
| Unfolding angle of the 5th section | ° | 210 | |
| Unfolding angle of the 6th section | ° | 90 | |
| Stabilizer span | Longitudinal span of stabilizer | mm | 12125 |
| Transverse span of front stabilizer | mm | 12125 | |
| Transverse span of rear stabilizer | mm | 12200 | |
| Others | Lubrication method | | Automatic lubrication |
| Control method | | Manual/remote control | |
| Volume of water box | L | 1000 | |
Company Profile
FAQ
1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .
2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.
3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.
4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.
5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
