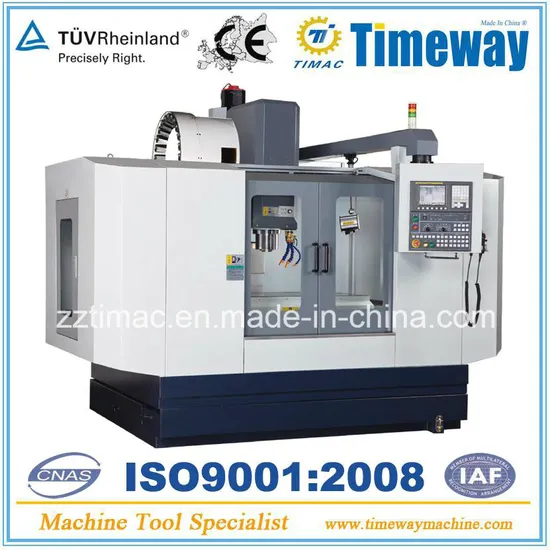

Large Table Size CNC Machining Center Vmc (VMC13780, VMC1580)

Product Description

Vertical Machining Center VMC1370 & VMC1580
VMC1370
Table size: 1400x710mm
Table travel(X/Y/Z): 1300/700/650mm
VMC1580
Table size: 1700x800mm
Table travel(X/Y/Z): 1500/800/700
Standard Accessories:
* FANUC 0i mate MD CNC system;
* Three axis hardened guide way;
* 8000rpm high speed BT50 spindle from Taiwan;
* Disc type ATC with 24 tools capacity from Taiwan;
* Separated electronic handwheel;
* Interval auto-lubricating;
* Full splash guard;
* Ball screw from Taiwan;
Optional Accessories:
The 4th axis; FANUC 0i MD, SIEMENS, or other CNC system; Auto. chip conveyor;
Parameter:

Specification	Unit	VMC1370	VMC1580
Table size	mm	1400x710	1700x800
Travel X-axis	mm	1300	1500
Travel Y-axis	mm	700	800
Travel Z-axis	mm	650	700
Spindle center to column guide way face	mm	785	800
Spindle nose to work table	mm	140-790	170-870
T-slot No./width/distance		5/22/120	5/22/135
Spindle taper		BT50	BT50
Max. diameter of tools	mm	Φ127/Φ150	Φ127/Φ150
Max. length of tools	kg	300	300
Rapid feeding for X	mm/min	15000	15000
Rapid feeding for Y	mm/min	15000	15000
Rapid feeding for Z	mm/min	12000	12000
Spindle max.speed	rpm	8000	8000
Main motor power	kw	11/15	11/15
Max. loading of table	kg	1000	1500
N/W	kg	12000	13000
Overall dimension	mm	3800x3100x2900	4260x3250x2940

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
