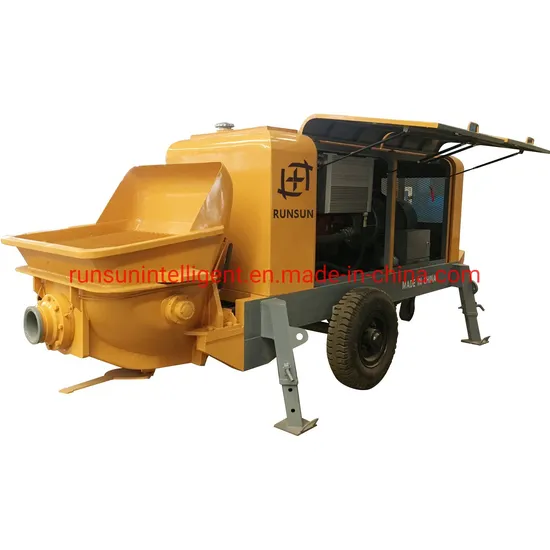

Hbt60 Trailer Mounted Beton Concrete Pump
Basic Info.
Model NO.
HBT60, HBT60R
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
60m²/h
Feeding Height
1400mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Power Type
Electric Motor, 90kw
Theoretical Concrete Output
45/60 M³/H
Concrete Outlet Pressure
7/13 MPa
Concrete Slump
120-230 mm
Max. Aggregate Size
Pebble≤40 mm, Gravel≤30 mm
Distribution Valve
S Tube Valve
Delivery Steel Pipe Diameter
125mm or 150mm
Speed
1480 R/Min
Concrete Cylinder Diameter * Stroke
D200*1650 mm
Oil Tank Capacity
500 L
Hopper Capacity
0.8 M³
Maximum Conveying Distance
120/500 M
Pipe Cleaning Mode
High Pressure Water Washing
High-Low Pressure Switch
Yes
Overall Dimension
5000×2000×2200 mm
Transport Package
Nude Package and Packaged in Container
Specification
HBT60, HBT60R
Trademark
RUNSUN
Origin
Hebei
HS Code
8413400000
Production Capacity
150 Sets/Month
Product Description
Technical Parameters| Model | HBT60 | HBT60R |
| Max Theoretical Concrete Output (Low/High pressure) (m³/h) | 45/60 | 45/60 |
| Max Concrete Pumping Pressure (Low/High pressure) (Mpa) | 7/13 | 7/13 |
| Concrete Slump | 120-230 | 120-230 |
| Aggregate Size (mm) | gravel≤40, pebble≤50 | |
| Power (KW) | Electric motor 90 | Diesel Engine 129 |
| Speed (r/min) | 1480 | 2300 |
| Conveying Cylinder Diameter (mm) | Ø 100/1000 | Ø 100/1200 |
| Concrete Cylinder Diameter (mm) | Ø 200/1650 | Ø 200/1650 |
| High-Low Pressure Switch | √ | |
| Hydraulic Oil Tank Capacity (L) | 500 | 500 |
| Hopper Capacity (m³) | 0.8 | 0.8 |
| Fuel Tank Capacity (L) | 180 | |
| Filling Height (mm) | 1400 | 1400 |
| Maximum Conveying Distance (vertical Height/Horizontal Distance) (m) | 120/600 | 120/600 |
| Pipe Cleaning Mode | High Pressure Water Washing | |
| Overall Dimension (mm) | 6000×2100×2260 | 6000×2100×2260 |
| Total Weight (kg) | 5800 | 6000 |
Main Configuration:
HBT60 CONCRETE PUMP (Electric Motor)
| Item | Brand or Manufacturer | Place of Origin |
| Electric Motor, 90KW | Jiangsu lideer | China |
| Main Oil Pump, K3V112*2 | KAWASAKI | Korea |
| PLC | Mitsubishi | Japan |
| Oil Cylinder | Hunan XIELI | China |
| Concrete Cylinder | Wuxi Shuangyu | China |
| Hydraulic hose | Manuli | Italy |
| Main Valve Group | BolSeen | Germany |
| Hydraulic oil - HML-46 | Beijing CHANGCHENG | China |
| S Valve | RUNSUN | China |
| Glass Plate & Cutting Ring | Zhuzhou ZHENXIANG | China |
HBT60R CONCRETE PUMP (Diesel Engine)
| Item | Brand or Manufacturer | Place of Origin |
| Diesel Engine, 129KW | Weichai & DEUTZ | China |
| Main Oil Pump, K3V112*2 | KAWASAKI | Korea |
| PLC | Mitsubishi | Japan |
| Oil Cylinder | Hunan XIELI | China |
| Concrete Cylinder | Wuxi Shuangyu | China |
| Hydraulic Hose | Manuli | Italy |
| Main Hydraulic Valve | BolSeen | Germany |
| Hydraulic oil - HML-46 | Beijing CHANGCHENG | China |
| S Distribution Valve | RUNSUN | China |
| Glass Plate & Cutting Ring | Zhuzhou ZHENXIANG | China |
HBT60 Electric Motor Trailer Mounted Concrete Pump
Runsun Intelligent Technology Co.,ltd is a specialized manufacturer of various mortar and concrete machine. such as mortar mixer, concrete mixer, mortar grout pump, mortar spraying machine, concrete pump, fine stone shotcrete pump, concrete mixer pump and so on. We have more than 30 years' experience in designing and manufacturing mortar and concrete machine. Our machine exported more than 300 sets different types of the concrete pump (Driven by Diesel Engine and Electric Motor, Discharging Volume from 12 m3/h to 90 m3/h) to over 72 countries. Our main customers are from Australia, Colombia, Hungary, New Zealand, Poland, Mexico, Ecuador, Brazil, Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, UAE, Saudi Arabia, Qatar, Kenya, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Swaziland, Mongolia etc. Widely used in used in high-rise building, high-speed railway, bridges, tunnels and so on.
Technical Advantages
1.Powerful machine:adopting electric motor(best in China), diesel engine(Yuchai or Weichai & Deutz).
2. High quality electrical component, such as Siemens, Mitsubishi etc.
3. Hydraulic system also adopting famous brand element, using South Korea Kawasaki or Germen REXROTH products.
4. Concrete piston can run back to washing tank, which can easily change the piston and convenient for maintenance.
5. Perfect after-sales service.6. High-quality parts, reducing cost to use.
Working Applications Fields:
Packing & Delivery
