Automatic Sprinkler Irrigation Machine with Agricultural Garden Farm Center Pivot Sprinkler Irrigation

Product Description

Product Description

Product name: Centrol Pivot Irrigation System
Central pivot sprinkler is also called pointer sprinkler and circular sprinkler.

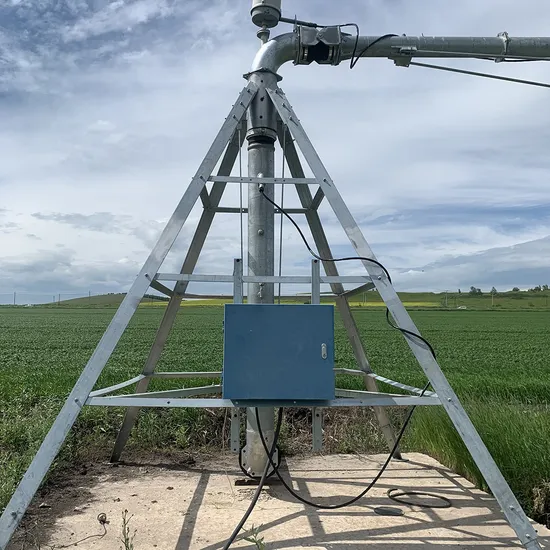

This machine is a sprinkling irrigation equipment that takes the central pivot as the circle point and realizes the irrigation area through the length of the irrigation radius. The upper end is connected with the rotary elbow through the rotating mechanism (collecting ring), and the crop is sprayed with water through the spraying system on the rack.
The core structure is made of hot-dip galvanized steel pipe, angle steel, steel plate, round steel, etc. The center-supported sprinkling irrigation machine is applicable to square, round and other large plots, and can overcome<25 ° slope plots, with wide application range and large sprinkling area.

FIXED PIVOT IRRIGATION
Pivots are irrigation systems consisting of one or more spans which rotate around a fixed point anchored to the ground.The spans turn repeatedly around a fixed central point . They are simple to use and require little intervention. These machines are both reliable and excellent value for money.
ONAL PIVOT IRRIGATION The spans rotate less than 360 degree and therefore maximize the irrigated surface area when there is an obstacle (farm building, tree, pylon etc.) situated in the middle of the Field, or where the shape of the Field does not allow full rotation.An automatic reverse system allows continuous operation whilst the security system ensures that the spans stop at the end of the irrigated zone.
TOWABLE PIVOT IRRIGATION
Towable pivot is equipment with a tower on swiveling wheels and a central unit on a moveable chassis fitted with a beam. Once the wheels are aligned with the span's axle, the whole machine can be moved by tractor. This type of pivot allows a reduction in the cost per hectare irrigated by increasing the area covered by the same machine.
Four Wheel Linear & Rotating Irrigation
This model can perform combined programs (linear and pivot irrigation) thanks to its articulated elbow adapted on a large bearing. Its structure, being similar to that of a pivot, allows the spans to do an about turn and therefore increase the irrigated surface area. Its operation can be completely automated. Water supply via a flexible pipe or a PEHD connected to an articulated elbow Tower on a chassis with 4 motorized wheels Can accommodate an electricity generator Furrow guidance or steel cable guidance
Folding Span
Offering maximum flexibility, the folding span is the ideal solution for bypassing obstacles in the middle of fields. The spans downhill from a tower equipped with a rotating axle continue to irrigate whilst the spans uphill from the tower are stopped with their sprinklers shut off.

PIVOT IRRIGATION MACHINE
	9000DYP
SPAN DIAMETER	254mm
THICKNESS OF PIPE	3.2mm
KINDS OF SPAN MATERIAL	HOT-DIP GALVANIZED PIPE
	STEEL 304 PIPE
	ALUMINIUM PIPE
	HOT GALVANIZATED PIPE WITH POLY SPAN INSIDE
PIPE DIAMETER	141mm:41. 15-61.26m
	168mm:41. 15-61.26m
	203mm:34.44-54.86m
	254mm:34.44-41. 15m
OVERHANG LENGTH	6.7-26.8m
CONNECTION BETWEEN SPANS	ALUMINUM CLAMP AND RUBBER GASKET
TRUSS ROD	22mm 19. 1mm 17.5mm
MAX SLOPE	30%

TOWABLE IRRIGATION MACHINE
TYPE OF MACHINE	THREE WHEEL		FOUR WHEEL
LOW/NORMAL/HIGH	LOW	NORMAL		HIGH
TIRE OPTIONS	11.2"X22.5"
	11.2"X24.5"
	11.2"X24"
	14.9"X24"
	16.9"X24"

Galvanized Steel
Acceptable for most conditions, but may not meet expectations under certain water conditions Standard option on for any Yulin center pivot, linear or towable irrigation machine.
Inside with Poly Span, outside with Galvanized Steel
Natural Rubber Lining Available for Yulin center pivots and linears (8″and 6 5/8″only) Standard with 3/4″couplers and 1″drains

LINEAR IRRIGATION
	FOUR WHEEL		TWO WHEEL
HEIGHT OF CENTRAL PART	LOWER	NORMAL	HIGHER
MAX LENGTH OF THE FIELD	UNLIMITED		UNLIMITED
CHANNEL WATER SUPPLY	YES		NO
PIPELINE WATER SUPLY	YES		YES
CENTRAL WATER SOURCE SUPPLY	YES		NO
ROTATION	NO		YES
PIPE DIAMETER	141mm		141mm
	168mm		168mm
	203mm		203mm
COMPATABILITY	9000DYP		9000DYP
GUIDANCE MODE	FURROW
	STEEL CABLE
