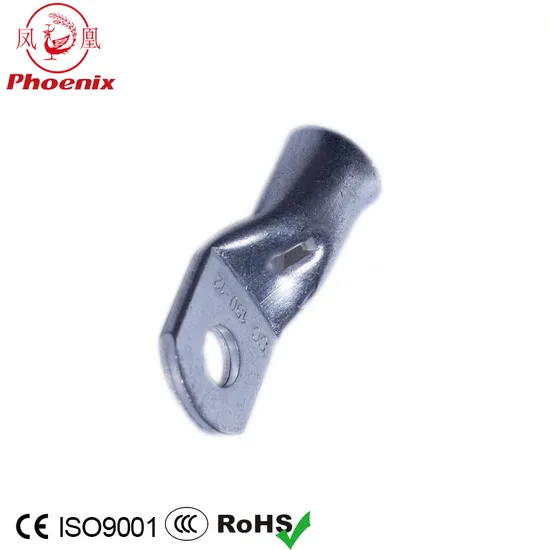

Factory Direct Sales Sc (JGB) -95 Tinned Copper Cable Lug Electrical Power Terminals with Inspect Hole

Product Description

Product Description Hot Selling SC(JGB) series Tinned Copper Cable Lug with Inspect Hole are suitable for the connection of copper conductors( section 1.5mm2 - 630mm2 ) in power cable with electronic equipment. They are made of copper tube T2 and coated with tin. Their working temperature is -55 to 150.

Item No.	φ	D	d	L	(W)	S
SC(JGB)-1.5	φ4.2, φ5.2	3.5	2.5	19	7	1
SC(JGB)-2.5	φ4.2, φ5.2	4	3	20	8	1
SC(JGB)-4	φ5.2, φ6.4	4.8	3.5	22	8	1.2
SC(JGB)-6	φ5.2, φ6.4	5.5	4.1	24.5	9	1.4
SC(JGB)-10	φ6.4, φ8.4	6.7	5	26	11	1.6
SC(JGB)-16	φ6.4, φ8.4	7.5	5.8	32	12	1.8
SC(JGB)-25	φ6.4, φ8.4, φ10.5	9	7.2	24.5	13	1.8
SC(JGB)-35	φ6.4, φ8.4, φ10.5	10.5	8.5	38	15	2
SC(JGB)-50	φ8.4, φ10.5	12.5	10.1	47	18	2.4
SC(JGB)-70	φ10.5, φ12.5	14.5	11.7	52	21	2.8
SC(JGB)-95	φ10.5, φ12.5	17	13.8	57	25	3.2
SC(JGB)-120	φ12.5, φ16.5	19.5	15.9	63	28	3.6
SC(JGB)-150	φ12.5, φ16.5	20.5	16.7	71	30	3.8
SC(JGB)-185	φ16.5	23.5	19.1	78.5	34	4.4
SC(JGB)-240	φ16.5	26	21.4	92.5	38	4.6
SC(JGB)-300	φ16.5, φ20.5	30	24.6	102	44	5.4
SC(JGB)-400	φ16.5, φ20.5	34	27.4	113	50	6.6
SC(JGB)-500	φ16.5, φ20.5	38	30.8	122.5	55	7.2
SC(JGB)-630	φ20.5	45	35.6	135	65	9.2

Packaging & Shipping Packing
(A) Common packing:Poly bag + Neutral Label + Export carton
(B) Special packing:
a. Colorful printing poly bag + Export Carton
b. Colorful inner box + Export carton
c. OEM Label, Inner box, Blister etc

Delivery
Variety of delivery way is available,like ship by sea, DHL, FEDEX, TNT etc.


Our Services
1. Fast delivery, have rich storage.
2. OEM and special packing, like Blister, Tube Box, Header card, PDQ are all available.
3. CE, RoHS, Reach, UL, VDE are safe guarantee of our products from our trusted factories.
4. Has Products Development Engineers and mold designers, make us have strong R&D Capability.
5. Technicians and QC help us have faith on quality.
6. Own technical department and mold workshop make us have ability to meet special request from customer.
Company Information

You May Also Like:
FAQ
1. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.

2. Q: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items,and it's impossible to mark all of their price on a list.And the price are always changing because of the raw materials and producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!

3. Q: I can't find the product on your catalogue, can you make this product for me?
"A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,
and how many do you want.If we do not have it,we can also design and make a new mould to produce
it.For your reference,making a ordinary mould will take about 30days."

4. Q : Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before.And we have many moulds for our customers already.About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.

5. Q: Can you provide samples ? Are the samples free ?
"A: Yes,we can provide samples.Normally,we provide 1-3pcs free samples for test or quality checking.
But you have to pay for the shipping cos.If you need many items, or need more qty for each item, we will charge for the samples."

6. Q: What kind of payment do you accept ? Can I pay RMB ?
"A: We accept T/T(Wire transfer), Please be sure that we can receive the
same amount of the Invoice. And you can pay money In RMB. No problem."

7. Q : What about your delivery time?
"A: We have a lot of products in stock.We can send the stock products in about 7 work days.
If without stock,or stock is not enough, we will check the delivery time with you."

8. Q : How to ship my order ? Is it safe?
"A: For small package, we will send it by Express, tsuch as DHL,FedEx,,UPS,TNT,EMS.That's a
Door to Door service.
For big packages, we will send them by Air or By sea.We will use good packing and ensure
the safety.We will be responsible to any product damage caused on delivery."

9. Q : Can you provide Certificate of Origin?
A:Yes,Sure.We can offer it.And it's free.

10. Q: Can I become an Agent / Dealer of Phoenix products?
"A: Welcome! But please let me know your Country/Area fisrt,We will have a check and then talk about this.If you want any other kind of cooperation,do not hesitate to contact us."
"Any requirements or question,welcome to "Send"us an e-mail Now!!!
It's our great honor to do services for you! You also can get the FREE SAMPLES soon."
