High Precision PP Film Sheet Cutting Machine

High Precision PP Film Sheet Cutting Machine

US$9,000.00
1-9 Pieces
US$8,000.00
10+ Pieces

Basic Info.

Model NO.
DP-360
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Size
500mm
Cut
Through Cut / Full Cut/Kiss Cut/Half Cut
Name
PP Sheet Cutting Machine
Max Feeding Width ( mm )
500mm
Cutting Function
Slit and Cut ( Cross Cut)
Precision
0.05mm
Type
PP Sheet Cutting Machine
Application
Textiles, Food, Medical, Machinery & Hardware
Type for Cutting Machine
Sponge Cutting Machine
Type for Fold-Bending Machine
PP Sheet Cutting Machine
Type for Pipe and Tube Bending Machine
PP Sheet Cutting Machine
Transport Package
Wodden Case
Specification
SGS/CE
Trademark
DP
Origin
Kunshan, Jiangsu, China.
HS Code
8441100000
Production Capacity
50 Sets/Month

Product Description

EMI shileding tape cutting machine

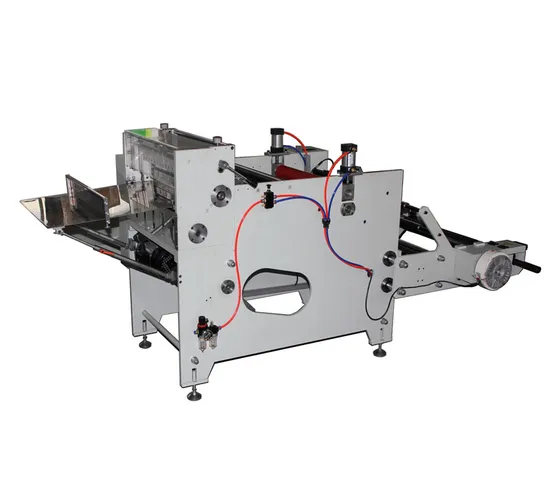

Picture:
Function &Characteristics:
This machine adopt imported PLC touch screen operation control, easy operation and convenient, high speed of slitting, and high precise
The machine apply to PVC adhesive sheet, insulating paper, Mylar sheet, foam, industry adhesive tape, electronic adhesive tape and all kinds of electronic material sizing, through and kiss cutting.
It is applicable for the cutting of PVC film, insulation sheet, Mylar, foam, industrial tape, electronic tape and various inch setting, entirely broken and partially broken electronic materials.
Item No. DP-360/500
Power 1/2HP
Voltage 1 phase 220V
Net weight 180KG for DP-360/ 250KG for DP-500
Cutting length 0.1--9999.9MM
Cutting width 1-360MM/1-500MM
Cutting speed 130time/minutes(1-180MM)
Cutting precise ±0.05MM
Cutting function Through cut
The cutting thickness is according to the material , If metal type like Aluminum foil or copper foil , the thickness is about 0.02mm to 0.6mm , and if unmetal material , like paper , films , thickness is from 0.05mm to 1mm , and if cutting foams , is max 8mm
