4 Axis Horizontal and Vertical CNC Machining Center Machine for Aluminum Profile

Product Description

Product Description


Specification : Using advanced industrial CNC systems, friendly human-machine interface, simple operation and trustable function Suitable for aluminum alloy, aluminum and wood composite profile, and other light alloys of copper, as well as the UPVC profile processing In the range of 90°~0°~-90° four axis unite machining One time clamping can complete milling, drilling, chamfering, grooving and other multi-functional precision machining Made of high strength welding structure, after thermal aging annealing processing guarantee high rigidity and high stability Adopts imported high precision linear guide rail, ball screws, gear racks and servo motor, ensuring smooth motion, positioning and processing of high precision High-quality imported automatic tool change for high speed motorized spindle ensure stability, stability of rotation noise, cutting ability. Equipped with 8 tools store, adjustable pneumatic clamping ensure efficient processing. Double table for two parts, or two kinds of profile machining, interactive feeding, non interference. Technical Parameters:

X-axis stroke	7000mm	Y-axis stroke	380mm
X-axis feed speed	0~60m/min	Y-axis feed speed	0~50m/min
X-axis positioning accuracy	±0.15mm	Y-axis positioning accuracy	±0.02mm
Z-axis stroke	300mm	Repeat location accuracy	±0.02mm
Z-axis feed speed	0~25m/min	Roughness	Ra 6.3 um
Z-axis positioning accuracy	±0.02mm	axis angle	-90°~0°~+90°
A-axis feed speed	10r/min	Tools qty	8 tools
Spindle power	7.5kW	Spindle rotary speed	0~24000rpm
Power supply	380V/50Hz	Total power	12.5kW
Working pressure	0.6~0.8MPa	Overall dimension	11300×2350×2550mm

Device configuration
3.1 Spindle motor: Italy high speed electrical spindle
3.2 High strength welding structure, after thermal aging annealing processing, accuracy machining
3.3 Guide rail: X Y Z axis adopts linear guide rail
3.4 X-axis transmission:adopts gear rack transmission
3.5 Y-axis & Z-axis transmission:adopts imported ball screw transmission
3.6 Tools magazine:8 tools and movable rotary tools .
3.7 Tools checking: auto checking tools length
3.8 Clamping :8 pneumatic clamping tools .
3.9 Drive system: Imported digital communication servo drive system.
3.10 Cooling system
3.11 Professional industrial control operation system
3.12Manual pulse generator, help to amend and measure the original
3.13Program: can be program online or offline


Certifications

Company Profile

Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.

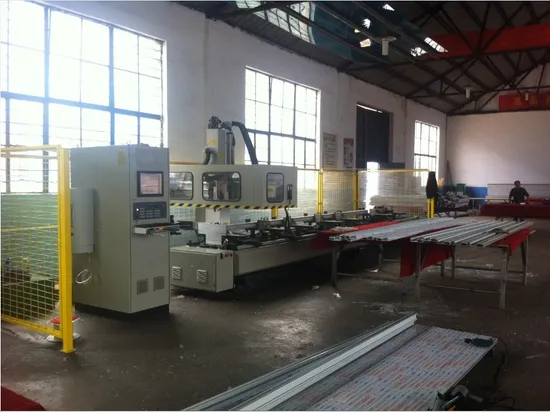

Machine at old customer
