Sj-a Series Rotary Die Head High Speed HDPE LDPE LLDPE Extruder Plastic Film Blowing Machine Price

Product Description

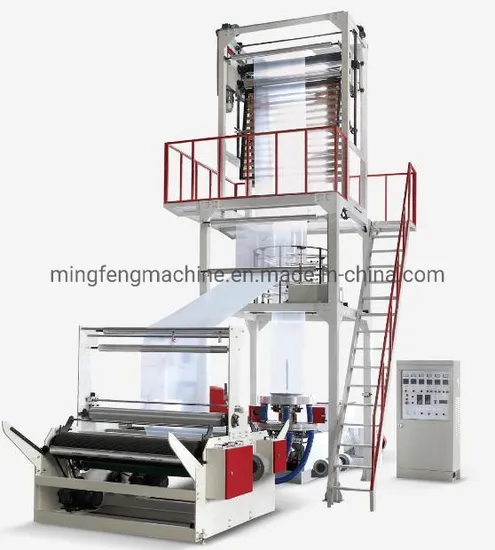

Sj-a Series High Speed HDPE LDPE LLDPE Extruder Plastic Film Blowing Machine
USE:
Used for blowing high and low pressure polyethylene, the products are widely used in composite film, packaging film, agricultural covering film, textile, clothing bag or film packaging;The main motor adopts frequency conversion speed regulation, which increases the stability of the main motor speed regulation and can save electricity by 30%.The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is,big or small,it can achieve the best effect of cooling.
Product Description:

Model		SJ-A45		SJ-A50		SJ-A55		SJ-A60	SJ-A65
Suitable material		HDPE,LDPE,LLDPE
Reduced diameter of film (mm)		100-500		300-600		400-800		500-1000	600-1200
Film thickness of (mm)		HD:0.009-0.05 LD:0.02-0.15
Max.output(kg/h)		HD35 LD45		HD 40 LD 50		HD 50 LD 60		HD 55 LD65	HD60 LD70
Extruder
Screw diameter		45		50		55		60	65
Screw L/D		28:1/30:1
Screw material		Sacm-645/38 crmoala
Cylinder material		Sacm-645/38 crmoala
Cylinder cooling(w)		180*2		250*2		370*2		370*2	550*3
Main motor(kw)		11		15		18.5		22	22
Cylinder temperature control		3		3		3		3	3
Average power consume(kw)		10		12		18		25	30
Type of die
Die size(mm)	HD60 LD100		HD80 LD120		HD80 LD180		HD100 LD200		HD100 LD220
Temperature control	3		3		3		3		3
Air ring	1		1		1		1		1
Air blower power (kw)	1.5		2.2		3		3		4
Center steady stick	1		1		1		1		1
Take up unit
Roller width(mm)	160*650		160*850		165*1100		165*1200		165*1400
Take-up speed(m/min)	10-100		10-100		10-100		10-100		10-80
Take-up motor(2.2)	0.75		0.75		1.1		1.1		1.5
Winding Unit
Type	Surface friction type
Winding motor(N.m)	10		10		10		10		10
Winding speed(m/min)	10-100		10-100		10-100		10-80		10-80
Voltage	380V,50HZ,3PHASE
Outline diameter (LxWxH)(mm)	5000×1800×4200		5500*2200*4500		5500*2500*5200		5000*2400*4200		5500*2500*5200
Weight(kg)	2000		2200		2500		2800		3000
Optional equipment	1.Auto loader 2. Film surface treater 3. Rotary die head 4. Air compressor 5. Mechanics screen changer 6. Double wind

Machine Details

Our Workshop
Hot Products

Packaging & Shipping
Our Exhibitions
Certifications
After Sales Service
100% Good Machine Quality
One year Guaranty Time
24 hours On Line Service
Overseas Technician Available
Cotact Girl:Ms.Amy
Warmly welcome you to contact us freely !
FAQ
1.Q:Are you machinery factory or trading company
A:We are machinery factory,and also have one trading company
2.Q:Where is your factory located?
A:We are located Ruian City,Zhejiang Province,China
From SHANGHAI by air is 40 mins,by train is 4 hours.
From GUANGZHOU by air is 2 hours.
3.Q:How many years warranty?Can you teach us?
A:Usually,we given customer one year warranty time.We also have oversea technician service to help you install the machines.
4.Q:What's the payment method?
A:We can accepted T/T,L/C,Western Union,Moneygram and etc.
