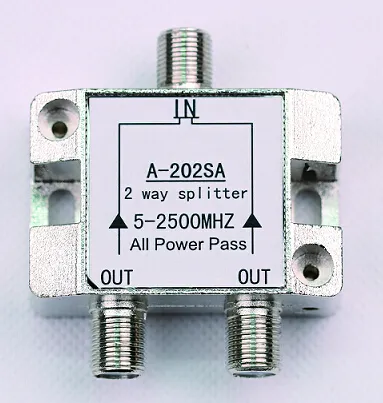

5-2500MHz Satellite TV Splitter (SHJ-A202SA)
| US$0.50-0.90 | 2,000 Pieces (MOQ) |
Basic Info.
Model NO.
SHJ-A202SA
Certification
CE, ISO, RoHS
Condition
New
Interface
F Connector Female
Band
5-2500MHz
Usage
Satellite TV
Power Pass
DC 12V-24V
Transport Package
Strong Carton
Specification
CE, Rohs
Trademark
OEM
Origin
Changzhou, China
Production Capacity
1000000PCS/Month
Product Description
2 Way 5-2500MHZ Satellite TV SplitterFeatures:
Suitable for 5-2400MHz SMATV.
Zinc-die-cast housing and nickel-plated, For high shielding.
Indoor using, With low insertion loss, high isolation and high reflection.
Power passing 12-24V DC/500Ma(Max)
High quality component and professional design
Connectors:"F"type female,75ohm.
Specification:
| Item | Frequency Range | 2 Way | 3 Way | 4 Way | 6 Way | 8 Way |
| Insertion Loss (IN-OUT) | 5-47MHz | ≤3.8 | ≤7.0 | ≤7.8 | ≤11.2 | ≤11.5 |
| 47-1000MHz | ≤4.2 | ≤7.8 | ≤8.8 | ≤12.5 | ≤12.5 | |
| 1000-2050MHz | ≤4.8 | ≤10.0 | ≤10.8 | ≤14.5 | ≤14.2 | |
| 2050-2300MHz | ≤5.2 | ≤10.8 | ≤11.2 | ≤15.2 | ≤15.2 | |
| 2300-2500MHz | ≤5.5 | ≤11.2 | ≤11.8 | ≤17.0 | ≤17.5 | |
| Isolation (OUT-OUT) | 5-47MHz | ≥20 | ≥20 | ≥25 | ≥25 | ≥30 |
| 47-1000MHz | ≥22 | ≥22 | ≥22 | ≥22 | ≥22 | |
| 1000-2050MHz | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| 2050-2300MHz | ≥18 | ≥18 | ≥18 | ≥18 | ≥18 | |
| 2300-2500MHz | ≥18 | ≥18 | ≥18 | ≥18 | ≥18 | |
| Return Loss (IN) | 5-47MHz | ≥10 | ≥10 | ≥10 | ≥8 | ≥8 |
| 47-1000MHz | ≥10 | ≥10 | ≥10 | ≥8 | ≥8 | |
| 1000-2050MHz | ≥10 | ≥10 | ≥10 | ≥8 | ≥8 | |
| 2050-2300MHz | ≥10 | ≥10 | ≥10 | ≥8 | ≥8 | |
| 2300-2500MHz | ≥10 | ≥10 | ≥10 | ≥8 | ≥8 | |
| Return Loss (OUT) | 5-47MHz | ≥12 | ≥12 | ≥12 | ≥10 | ≥10 |
| 47-1000MHz | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | |
| 1000-2050MHz | ≥10 | ≥10 | ≥10 | ≥10 | ≥10 | |
| 2050-2300MHz | ≥10 | ≥10 | ≥10 | ≥10 | ≥10 | |
| 2300-2500MHz | ≥10 | ≥10 | ≥10 | ≥10 | ≥10 |
