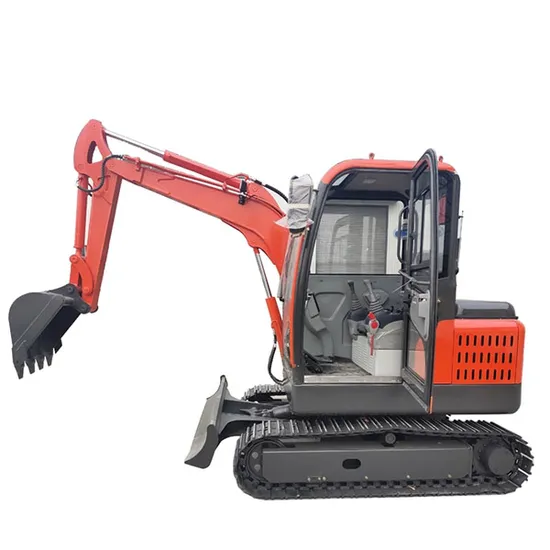

Hot Selling with Premium Engine 3 Ton Digger Mini Hydraulic Excavator

Hot Selling with Premium Engine 3 Ton Digger Mini Hydraulic Excavator

US$13,000.00-16,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
30
Usage
Special Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
>1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Rated Speed
3.5 Km/H
Maximum Digging Height
3700 mm
Maximum Digging Depth
2290 mm
Max Digging Radius
4370 mm
MOQ
One Unit
Application
Construction Digging
Engine Brand
Laidong / Kubota
Power
22.1kw / 14.2 Kw
Machine Weight
3000kg
Transport Package
Packed in Wooden Case
Specification
4170 *1300*2280mm(L*W*H)
Trademark
MDL
Origin
China
Production Capacity
50 Set/Sets Per Month

Product Description


3 ton Excavator (30)
Product Parameters


Machine Size
Overall dimension (L*W*H)
4170 * 1300 * 2280mm
Axle base(Track length on ground)
1230 mm
Track gauge
1070 mm
Min.Ground clearance
230 mm
Swing radius at tail
1180 mm

Track System

Maximum Travel speed
3.5 km/h
Width of track shoe
230 mm
Number of track shoe per side
38 pcs
Number of upper roller per side
0
Number of bottom roller per side
4

Performance Parameter
Standard bucket capacity
0.1 m³
Swing speed
12 rpm
Max. Grade ability
30°
Max. Bucket digging force
15.3 KN
Max. Arm digging force
10.5 KN
Hydraulic system pressure
18 Mpa
Machine weight
2500 kg
Arm length
1000 mm
Engine
Emission Standard
Euro5/ EPA
Engine Model
KUOBTA
Power/Rotation speed
14.2kw (20HP )2000 rpm
Optional Engine
China Laidong 22.1 kw, 2300 rpm
Number of cylinder
3
Working Range
Max. Digging height
3700 mm
Max. Dumping height
2290 mm
Max. Digging depth
2450 mm
Max. Vertical digging depth
2160 mm
Max. Digging radius
4370 mm
Min .swing radius
2020 mm
Max. Lifting height of blade
240 mm
Max. Cutting depth of blade
310 mm
Boom swing angle(Left)
75°
Boom swing angle(Right)
45°


Product Description
*High fuel efficiency,Super power
*Lower fuel Consumption,High configuration, Superior performance
*Saving energy and protecting environment
Detailed Photos
Company Profile

Packaging & Shipping
FAQ
1.What kind terms of payment can be accepted?For terms of payment, L/C, T/T, Western Union (can be) could accepted.2. What certificates are availble in Machinery?For the certificate, we have ISO,EPA,SGS and CE.3.What about the delivery time?7-20 days after receiving the deposit.4.What about the warranty time?12 months after shipment or 2000 working hours, whichever occurs first.5.What about the Minum Order Quantity?The MOQ is 1 pcs.
6.How to show your manufacture to customers?It depends on you,if you have time,you can come to visit our manufacture. If you do not have time,then we can have vedio call,then show you around our workshop. Our workshop is working from 8:00 am to 5:00pm in Beijing Time!
