Cast Steel Flanged Rubber Expansion Joint Metal Pipe Connector Compensator for Water Supply

Product Description

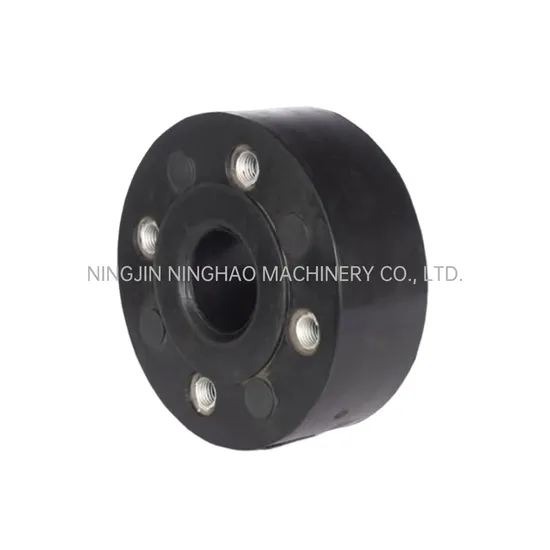

Product DescriptionNHFLEX-C TYPE Rubber Metal Pipe Connector/compensator jonit pipe fittings
Rubber Metal Pipe Connector can be installed near pumps, compressors, regulators, valves and machines to eliminate noise transmission and to absorb small vibration occurance in pipelines.
Structural:
Cylindrical rubber body with vulcanized flange to the flange holes (The cylindrical body: EPDM elastomer + 2pc flanged inserts).The rubber-metal pipe connector is self-sealing, so that no additional seals required.
Characteristics:
1. Corrosion Resistance: Rubber metal pipe connectors are made from high-quality rubber materials that exhibit excellent resistance to corrosion. They can be used with various media such as water, oil, and gases.
2. Elastic Deformation: Rubber metal pipe connectors can absorb stresses and vibrations caused by temperature changes, vibrations, or pipe movements in pipeline systems through their elastic deformation. This helps protect the pipeline system from damage.
3. Shock Absorption and Noise Reduction: Rubber metal pipe connectors effectively reduce the transmission of vibrations and noise in pipeline systems, providing a quieter and more stable working environment.
4. Easy Installation and Maintenance: Rubber metal pipe connectors have a simple structure, making them easy to install and maintain. They also have low maintenance costs.Product ParametersStandard Specification:

Max.Working Pressure				1.0Mpa
Operating Temperature				-20ºC-100ºC
Applicable Media				Sea Water, Drinking Water, etc.
Flange Standard				DIN PN10 PN16

Component Parts:

Item	Part	Material
1	Body	NR, EPDM, NBR
2	Flange	Cast Steel

NHFLEX-C TYPE Rubber Joint Size Chart:

SIZE	LENGTH			DIN PN10								L1
DN	F/F			D	D1				n-M
(mm)	(mm)			(mm)	(mm)							(mm)
20	70			109	75				4 X M12			12
25	70			119	85				4 X M12			16
32	70			145	100				4 X M16			16
40	70			156	110				4 X M16			16
50	70			171	125				4 X M16			16
65	70			192	145				4 X M16			16
80	70			207	160				8 X M16			18
100	70			227	180				8 X M16			18
125	70			257	210				8 X M16			18
150	70			294	240				8 X M20			18
200	90			343	295				8 X M20			20

* Stable pipeline fixed points and proper pipeline are required to absorb axial forces.
The rubber metal pipes are installed free of tension.
The mounting length should be 70mm, do not load on train, twist or bend position.
The installation should be in an easily accessible location where maintenance and inspection of the system is easy to do.
Additional seals are not required, since rubber protrudes at the sealing surface.
Keep the joint away from heat sources such as welding machines or sun light.
Do not assemble the joint directly in touch with rubber surface or other fitting.Main Products
→ Click to View More Types of Rubber Joints.ApplicationCompensating for Thermal Expansion and Contraction: Rubber expansion joints compensate for thermal expansion and contraction caused by temperature variations in the pipeline. They prevent excessive stress on the pipeline system due to temperature changes, thereby protecting the pipes from damage.
Absorbing Vibrations and Impacts: Rubber expansion joints absorb stresses caused by vibrations and impacts in the pipeline system, reducing the transmission of vibrations and noise. This helps protect the pipeline and related equipment from damage.
Compensating for Pipe Movements: During installation and operation, pipeline systems may experience certain degrees of pipe movement. Rubber expansion joints compensate for these movements, ensuring the proper functioning of the pipeline system.
Leak Prevention: Rubber expansion joints provide sealing performance in pipeline systems, reducing the risk of leaks and ensuring the safe operation of the pipelines.
Company ProfileNingjin NINGHAO Machinery Co.,Ltd. Founded on No November 19, 2010. It is located in No.2 taishan road, econnmic and technological development zone, ningjin county, dezhou city, shandong province. It covers an area of 120 acres, with more than 80 employees, among has all kinds of advanced production and inspection equipment.
We can offer all kinds of rubber expansion joints. Our products include: single ball flexible rubber expansion joint, double sphere rubber expansion joint, rubber-metal pipe connectors, thread-connection rubber expansion joint and tie rods set for rubber expansion joint. Rubber expansion joint main material: EPDM ,NBR ,NR, FR. The standard of the flange: ANSI150, DIN, JIS10K. The flange material: carbon steel, stainless steel, casting steel.
