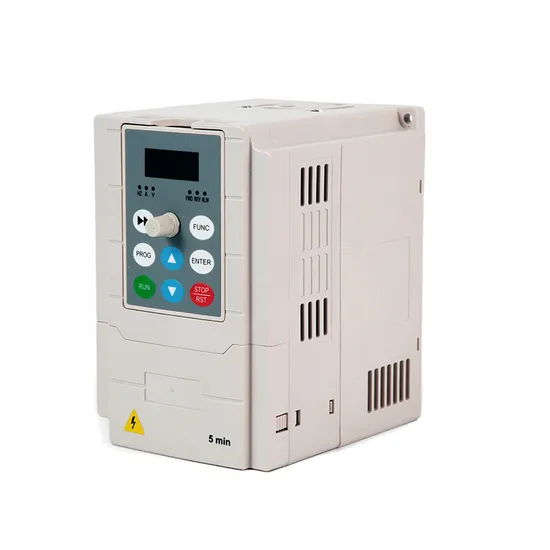

Sanyu High Quality 3pH 1pH Inverter AC Drive VFD
| US$55.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SY2000
Output Power
＜50W
Grid Type
Grid Inverter
Output Type
Triple
Circuit Topologies
Push-Pull Type
Nature of Wave String
Square Wave Inverter
Type
DC/AC Inverters
Brand
Sanyu
Warranty
18 Months
Color
White
Certificate
CE
Transport Package
Carton
Specification
245*145*190mm
Trademark
SANYU
Origin
China, Shanghai
HS Code
85044099
Production Capacity
50000 Sets /Month
Product Description
Sanyu 3PH 1PH Inverter AC Drive - High Quality VFD for 220V 380V applications, ranging from 0.75kw to 7.5kw. Trust Shanghai Sanyu Industry Co., Ltd. for top-notch frequency inverters.Product Description
| Voltage Level | Model | Rated Capacity (KVA) | Rated Output Current (A) | Adapter Motor (KW) | ||||||||||||||||||||||
| 1Phase 220V | SY2000-0R4G-S2 | 1.0 | 2.5 | 0.4 | ||||||||||||||||||||||
| SY2000-0R7G-S2 | 1.4 | 4.0 | 0.75 | |||||||||||||||||||||||
| SY2000-1R5G-S2 | 2.6 | 7.0 | 1.5 | |||||||||||||||||||||||
| SY2000-2R2G-S2 | 3.8 | 10.0 | 2.2 | |||||||||||||||||||||||
| SY2000-004G-S2 | 14 | 16.0 | 4.0 | |||||||||||||||||||||||
| SY2000-5R5G-S2 | 20 | 20.0 | 5.5 | |||||||||||||||||||||||
| SY2000-7R5G-S2 | 24 | 30.0 | 7.5 | |||||||||||||||||||||||
| 3Phase 380V | SY2000-0R4G-4 | 1.2 | 1.6 | 0.4 | ||||||||||||||||||||||
| SY2000-0R7G-4 | 1.5 | 2.3 | 0.75 | |||||||||||||||||||||||
| SY2000-1R5G-4 | 3.7 | 3.7 | 1.5 | |||||||||||||||||||||||
| SY2000-2R2G-4 | 4.7 | 5.0 | 2.2 | |||||||||||||||||||||||
| SY2000-004G-4 | 6.1 | 8.5 | 4.0 | |||||||||||||||||||||||
| SY2000-5R5G-4 | 11 | 13.0 | 5.5 | |||||||||||||||||||||||
| SY2000-7R5G-4 | 14 | 17.0 | 7.5 | |||||||||||||||||||||||
| SY2000-011G-4 | 20 | 25.0 | 11.0 | |||||||||||||||||||||||
| SY2000-015G-4 | 24 | 32.0 | 15.0 | |||||||||||||||||||||||
| SY2000-018G-4 | 26 | 37.0 | 18.5 | |||||||||||||||||||||||
| Function description | Specifictation |
| Rated Input Voltage | 1PH 220V(-15%)~240V(+10%) |
| 3PH 220V(-15%)~240V(+10%) | |
| 3PH 380V(-15%)~440V(+10%) | |
| Rated Input Frequency | 50Hz or 60Hz; Allowed range 47Hz~63HZ |
| Rated Output frequency | 50HZ or 60Hz |
| Rated Output Voltage | Equal to the input voltage, the error is less than 5% |
| Control Mode | V/F control/ Flux vector control |
| Maximum Output frequency | Low frequency mode:0~999.9HZ; |
| Overload Capacity | 150% rated current for 60 seconds, 180% rated current for 5 seconds 200% rated current for 1 second |
| Analog Input Resolution | No more than 20mV |
| Digital Input and Output | 5 ordinary input, 1 Y terminal output(with ordinary digitan input and output) 2 ways programable relay output |
| Communication | RS 485 communication(Support modbus protocal bus) |
| Installation Method | Wall Mounting |
| Ambient Temp. | -10~50ºC (at 40~50ºC, please use it by derating) |
| Fault protection function | Provide a dozen kinds of fault protection function: over current, over voltage, under voltage, over temperature, over load and so on. |
| Brake Unit | Built in |
| Speed tracking and restart function | Smooth restart during operation, instaneous stop and restart |
| FAQ | ||||
| Q 1: Can I get on sample before placing bulk order? | ||||
| A 1: Yes, we can sell sample order for testing. | ||||
| Q 2: What certificates does SANYU have? | ||||
| A 2: SANYU frequency inverter factory has ISO9001-15000 certificate, every single piece of frequency inverter passed test following ICE.Each frequency inverter has CE certificate. | ||||
| Q 3: What is the delivery time? | ||||
| A 3: 3 days for sample orders. Contact us for bulk orders. | ||||
| Q 4: Does this frequency inverter accept DC input? | ||||
| A 4: Yes, it accept DC input. | ||||
| Q 5: How to choose suitable frequency inverter? | ||||
| A 5: Please send us the details of your motor to get recommendation. | ||||
| Q 6: Do you support OEM service? | ||||
| A 6: Yes,we support OEM base on order quantity. For more questions, feel free to inquire us. |
