Fwincnc High Precision Laser Cutting Machine Nozzles for CNC Machines Stainless Steel

Product Description

Fwincnc High Precision Laser Cutting Machine Nozzles for CNC Machines stainless steel Product Description
The Principle of Laser Nozzles
During the laser cutting process, the laser head nozzle collects capacitive signals, which are then transmitted to the signal processor through the ceramic ring. This maintains the laser cutting machine's tracking of the distance between the laser head and the workpiece, guiding the assist gas to smoothly pass through the cut workpiece, accelerating the cutting speed, and removing molten slag to protect the internal lenses of the laser head. Both the focused laser beam and the high-pressure gas are emitted from the laser head nozzle.
The Role of Laser Nozzle

Adjusting Airflow Direction and Pressure: The internal shape of the laser head nozzle adjusts the direction and pressure of the high-pressure airflow, maintaining the pressure between the workpiece and the nozzle.
Protecting the Laser Head: The nozzle prevents molten workpiece material from splashing back into the laser head, thereby protecting the internal lenses of the laser head.
Providing Capacitive Signals: The nozzle supplies capacitive signals to the height adjustment system, ensuring the stable operation of the height adjustment system.

Laser Nozzle Types
Nozzles are generally categorized into single and double layer types. Single layer nozzles are suitable for fusion cutting, which is used for precision and surface requirement high fine cutting, and nitrogen is commonly used as the assist gas, typically for cutting stainless steel and aluminum alloys . Double layer nozzles are used for oxidation cutting, where the gas flow converges and compresses a second time, significantly enhancing the cutting effect on carbon steel, using oxygen as the assist gas, and are used for carbon steel cutting
Laser Nozzle Size
The diameter of the nozzle determines the shape of the airflow entering the kerf, the area of gas dispersion, and the velocity of the gas flow, which in turn affects the removal of molten material and the stability of the cutting process. The greater the volume and speed of the airflow entering the kerf, and the more appropriate the position of the workpiece in the airflow, the stronger the ability to jettison molten material. Users select the nozzle size based on the power of the laser used and the thickness of the metal plate being cut. In theory, the thicker the plate, the larger the nozzle should be used, and the higher the pressure set by the proportional valve, the greater the flow rate, ensuring the pressure to achieve a normal cross-sectional cutting effect.

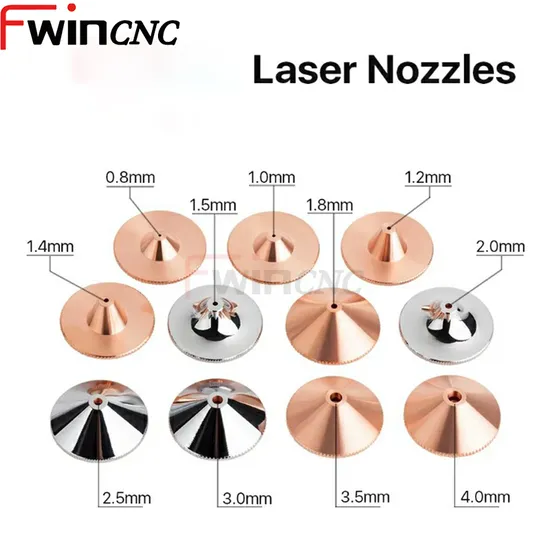

Detailed Photos
RAYTOOLS LASER CUTTING NOZZLE

RAYTOOLS TYPE A S28-A-15-S: M11 D28 H15 single layer Caliber:0.8 1.0 1.2 1.3 1.4 1.5 1.6 1.8 2.0 2.5 3.0 3.5 4.0 4.5 5.0 6.0 S28-A-15-D: M11 D28 H15 double layer Caliber:0.8 1.0 1.2 1.25 1.3 1.4 1.5 1.6 1.8 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 S28-A-11-D: M11 D28 H11 double layer Caliber:1.0 1.2 1.5 2.0 2.5 3.0 3.5 4.0 5.0

RAYTOOLS TYPE A S32-A-15-S:M14 D32 H15 single layer Caliber:0.8 1.0 1.2 1.4 1.5 1.8 2.0 2.5 3.0 3.5 4.0 4.5 5.0 S32-A-15-D: M14 D32 H15 double layer Caliber:0.8 1.0 1.2 1.4 1.5 1.6 1.8 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0

RAYTOOLS TYPE C S28-C-11-S: M11 D28 H11 single layer Caliber:0.8 1.0 1.2 1.5 2.0 2.5 3.0 3.5 4.0 5.0 S28-C-15-S:M11 D28 H15 single layer Caliber:0.8 1.0 1.2 1.5 1.8 2.0 2.5 3.0 3.5 4.0

RAYTOOLS 3D 3D-M8:M8 D15 H19 single layer (120GJT09) Caliber:1.5 2.0 3D-M8:M8 D15 H19 double layer (120GJT02) Caliber:1.5 2.0

RAYTOOLS TYPE B S32-B-15-S: M14 D32 H15 single layer Caliber:1.0 1.2 1.4 1.5 1.6 1.8 2.0 2.5 3.0 3.5 4.0 S32-B-15-D:M14 D32 H15 double layer Caliber:1.0 1.2 1.4 1.5 1.6 2.0 2.5 3.0 3.5 4.0 4.5 5.0 S32-B-15-Dp: M14 D32 H15 Caliber:1.0 1.2 1.4 1.5 1.6 2.0 2.5 3.0 3.5 4.0 4.5 5.0

RAYTOOLS 3D 3D-M6: M6 D11.5 H15.8 Caliber 1.0 1.2 1.5 2.0 3D-M6-PRE: M6 D8 H10 Caliber 1.5 2.5 3D-RT-JM: M8 D12 H10 Caliber 0.5 0.8 1.0 1.2 1.5

RAYTOOLS TYPE C S32-C-15-S: M14 D32 H15 single layer Caliber:0.8 1.0 1.2 1.5 1.8 2.0 2.5 3.0 3.5 4.0 S32-C-15-D: M14 D32 H15 double layer Caliber:0.8 1.0 1.2 1.5 2.0 2.5 3.0 4.0 4.5

RAYTOOLS BULLET BUL-S: D10.5 H22 single layer Caliber 0.8 1.0 1.2 1.5 1.6 1.8 2.0 2.5 3.0 3.5 4.0 5.0 BUL-D: D10.5 H22 double layer Caliber 0.8 1.0 1.2 1.5 1.8 2.0 2.5 3.0 3.5 4.0 BUL-L(0.75): M14 D22 H15 Lid BUL-L(0.8): M14 D22 H15 Lid BUL-B: D35.5 H27.5 Base

WSX LASER CUTTING NOZZLE

WSX WSX-YG-S:M11 D28 H15 single layer Caliber:1.0 1.2 1.5 2.0 2.5 3.0 3.5 4.0 5.0 WSX-YG-DM11 D28 H15 double layer Caliber:1.0 1.2 1.4 1.5 1.6 2.0 2.5 3.0 3.5 4.0 5.0

WSX WSX-3D-15-S: M11 D14 H15 single layer Caliber: 1.5

WSX WSX-KSA-D:M5 D7.5 H12 Caliber: 1.5 2.0 2.5

WSX WSX-SW-PLUS: M8 D15 H19 single/double layer Caliber: 2.0

PRECITEC LASER CUTTING NOZZLE

PRECITEC Laser nozzle DE CS2" M11×0.75 D28 H28.7 Caliber: 1.2 1.5 2.0 2.5	PRECITEC Laser nozzle DE DS M11×0.75 D28 H22.5 Caliber: 1.0 1.2 1.5 1.8 2.8 2.5	PRECITEC Laser nozzle DE HP 1.5" M11×0.75 D28 H15.1 Caliber: 0.8 1.0 1.2 1.5 1.8 2.0 2.5 3.0	PRECITEC Laser nozzle DE HP 1.5" out side cone-shaped M11×0.75 D28 H15.1 Caliber:0.8 1.0 1.2 1.5 1.8 2.0 2.5 3.0 4.0 5.0
for cutting head CS	for cutting head DS	for cutting heads ProCutter 1.0, ProCutter 2.0 (with KT XB), LightCutter, HPxx, MiniCutter2D	for cutting heads: ProCutter 1.0, ProCutter 2.0 (with KT XB), LightCutter, HPxx, MiniCutter 2D

PRECITEC Laser nozzle DE KTX M15×1 D30 H18.6 Caliber:1.0 1.2 1.5 1.8 2.0 2.5 3.0 3.5 4.0 4.5 5.0	PRECITEC Laser nozzle DE M1.5" M6×0.75 D10 H10.5 Caliber: 0.8 1.0 1.2 1.5 1.8 2.0	PRECITEC Laser nozzle DE YH27 M9×0.5 D14.2 H15.4 Caliber: 0.8 1.0 1.2 1.5 1.8 2.0
for cutting head ProCutter 2.0	for cutting head LightCutter 2.0 3D	for cutting heads SolidCutter (Ff75), MiniCutter 3D, YH27, YR30

PRECITEC Laser nozzle DE YR30 M6×0.5 D11.2 H15.3 Caliber: 0.8 1.0 1.2 1.5 1.8 2.0	PRECITEC Laser nozzle duo DE HP1.5", double injector	PRECITEC Laser nozzle duo DE KT X DD
for cutting heads SolidCutter (>=F100), YR30 (>=F100)	for cutting heads ProCutter 1.0, ProCutter 2.0 (with KT XB), LightCutter, HPxx, MiniCutter2D	for cutting head ProCutter 2.0

BOCHU BOCI LASER CUTTING NOZZLE

Boci-S:M11 D27 H34 single layer Caliber:1.0, 1.2, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0mm

Boci-D: M11 D27 H37 double layer Caliber:1.0, 1.2, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0mm

Boci-3D-S:M8 D11 H19 single layer Caliber:1.0, 1.2, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0mm

Boci-3D-D:M8 D11 H19 double layer Caliber:0.8, 1.0, 1.2, 1.4, 1.5, 1.6, 1.8, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0mm

OSPRI LASER CUTTING NOZZLE

Ospri FSN01-B M10 D20 H15 single layer

Ospri FSN02-A M11 D28 H15 single layer FSN02-B M11 D28 H15 double layer

Ospri FSN03-A M8 D15 H19 single layer

Ospri FSN07-A M8 D15 H19 single layer FSN07-B M8 D15 H19 double layer

Ospri FSN09-A M11 D28 H15 single layer FSN09-B M11 D28 H15 double layer

Ospri FSN10-A M11 D28 H26 single layer

Ospri FSN13-A M8 D15 H19 single layer FSN13-B M8 D15 H19 double layer

Ospri FSN36-A M8 D13 H12 single layer

TRU LASER CUTTING NOZZLE

TRU-EAA M12 D25 H15.5 1324858,1324860,1324861 1324863,1324864, 1324865 1324866,1324867

TRU-EAB M12 D25 H15.5 1373324,1373325,1373326, 1373327,1373328,1373329, 1373330,1373331

TRU-EAK M12 D25 H15.5 2.5mm-1579549 3.0mm-1579556 4.0mm-1835747

TRU-EAQ M12 4.0mm-1835747 6.0mm-1809091 7.5mm-1809421 9.5mm-1886199

TRU-EAU 2.5mm-2059462 3.0mm-2060001 4.0mm-2060004 6.0mm-2060025 10.0mm-2253595

TRU-EBD 3D M6 D10 H10.5 1354230 135420

TRU- EBF/EBG 3D M6 D8 H10.5 1546809

TRU-EBM M6 D10 H8 1589601, 1384753, L1700, TR407-9610

TRU-ECE M8 D24 H10 0124561 0124562 0966809 0237497 0237501 1253211 0126933 0942742

TRU-EGL 1.4mm-1879940 1.7mm-1879951 2.0mm-1879952 2.3mm-1879953

DNE LASER CUTTING NOZZLE

DNE28-A-22-SCP

DNE28-A-22-DCP

DNE15-B-15-SCP

DNE15-B-15-DCP

DNE17-B-15-SCP

DNE17-B-15-DCP

DNE39.6-C-17.6-Q90

DNE39.6-C-12.3-Q90

BC LASER CUTTING NOZZLE

F series
Product	Part Number	OEM #	Diameter
Nozzle DW F20 Classic	RNB/F20C	10084700	2.0
Nozzle DW F20 Precision	RNB/F20P	10118050	2.0
Nozzle DW F25 Classic	RNB/F25C	10084701	2.5
Nozzle DW F25 Precision	RNB/F25P	10118051	2.5
Nozzle DW F30 Classic	RNB/F30C		3.0
Nozzle DW F30 Precision	RNB/F30P	10118057	3.0
Nozzle DW F35 Classic	RNB/F35C	10090091	3.5
Nozzle DW F35 Precision	RNB/F35P	10118052	3.5
Nozzle DW F40 Classic	RNB/F40C	10066331	4.0
Nozzle DW F40 Precision	RNB/F40P	10118053	4.0
Nozzle DW F45 Classic	RNB/F45C	10066330	4.5
Nozzle DW F45 Precision	RNB/F45P	10118058	4.5
Nozzle DW F50 Classic	RNB/F50C	10090092	5.0
Nozzle DW F50 Precision	RNB/F50P	10118055	5.0
Nozzle DW F55 Classic	RNB/F55C	10086053	5.5
Nozzle DW F55 Precision	RNB/F55P	10118054	5.5
Nozzle DW F60 Classic	RNB/F60C	10086069	6.0
Nozzle DW F60 Precision	RNB/F60P	10118056	6.0

H series
Product	Part Number	OEM #	Diameter
Nozzle H10 Precision	RNB/H10P	10117149	1.0
Nozzle H12 Precision	RNB/H12P	10117150	1.2
Nozzle H15 Precision	RNB/H15P	10117151	1.5
Nozzle H17 Precision	RNB/H17P	10117153	1.7
Nozzle H20 Precision	RNB/H20P	10097541	2.0
Nozzle H25 Precision	RNB/H25P	10097542	2.5
Nozzle H30 Precision	RNB/H30P	10117154, 10097154	3.0
Nozzle H35 Precision	RNB/H35P	10117152, 10097152	3.5

HK series
Product	Part Number	OEM #	Diameter
Nozzle DW HK 0.8 Classic	RNB/HK08C	10048529	0.8
Nozzle DW HK 10 Classic	RNB/HK10C	10035266	1.0
Nozzle HK10 Precision	RNB/HK10P	10097507	1.0
Nozzle DW HK 12 Classic	RNB/HK12C	10035267	1.2
Nozzle HK12 Precision	RNB/HK12P	10097508	1.2
Nozzle DW HK 15 Classic	RNB/HK15C	10035268	1.5
Nozzle HK15 Precision	RNB/HK15P	10097509	1.5
Nozzle DW HK 17 Classic	RNB/HK17C	10035269	1.7
Nozzle HK17 Precision	RNB/HK17P	10097510	1.7
Nozzle DW HK 20 Classic	RNB/HK20C	10035270	2.0
Nozzle HK20 Precision	RNB/HK20P	10097511	2.0
Nozzle DW HK 25 Classic	RNB/HK25C	10035271	2.5
Nozzle HK25 Precision	RNB/HK25P	10097512	2.5
Nozzle DW HK 30 Classic	RNB/HK30C	10035272	3.0
Nozzle HK30 Precision	RNB/HK30P	10097513	3.0
Nozzle DW HK 35 Classic	RNB/HK35C	10049744	3.5
Nozzle HK35 Precision	RNB/HK35P	10097514	3.5

NK series
Product	Part Number	OEM #	Diameter
Nozzle DW NK10/15 Classic	RNB/NK1015C	10049747	1.0
Nozzle NK10-15 Precision	RNB/NK1015P	10097525	1.0
Nozzle DW NK12/15 Classic	RNB/NK1215C	10035275	1.2
Nozzle NK12-15 Precision	RNB/NK1215P	10097528	1.2
Nozzle DW NK15/15 Classic	RNB/NK1515C	10035278	1.5
Nozzle NK15-15 Precision	RNB/NK1515P	10097531	1.5
Nozzle DW NK17/15 Classic	RNB/NK1715C	10035290	1.7
Nozzle NK17-15 Precision	RNB/NK1715P	10097533	1.7
Nozzle NK17-17 Precision	RNB/NK1717P	10119813	1.7
Nozzle DW NK20/15 Classic	RNB/NK2015C	10035292	2.0
Nozzle NK20-15 Precision	RNB/NK2015P	10097534	2.0
Nozzle DW NK25/15 Classic	RNB/NK2515C	10035294	2.5
Nozzle NK25-15 Precision	RNB/NK2515P	10097537	2.5
Nozzle DW NK25/20 Classic	RNB/NK2520C	10035296	2.5
Nozzle NK25-20 Precision	RNB/NK2520P	10097549	2.5
Nozzle DW NK30/17 Classic	RNB/NK3017C	10035298	3.0
Nozzle NK30-17 Precision	RNB/NK3017P	10097543	3.0
Nozzle DW NK30/20 Classic	RNB/NK3020C	10035301	3.0
Nozzle NK30-20 Precision	RNB/NK3020P	10097551	3.0
Nozzle DW NK35/17 Classic	RNB/NK3517C	10068496	3.5
Nozzle NK35-17 Precision	RNB/NK3517P	10097553	3.5
Nozzle DW NK35/30 Classic	RNB/NK3530C	10035302	3.5
Nozzle NK35-30 Precision	RNB/NK3530P	10097552	3.5
Nozzle DW NK40/17 Classic	RNB/NK4017C	10068498	4.0
Nozzle NK40-17 Precision	RNB/NK4017P	10097554	4.0
