Small Mobile Concrete Machinery Hydraulic Trailer Truck Mini Diesel Stationary Hydraulic Piston Gear Concrete Line Pump

Product Description

Hot Sales
Product Description
Introduction of Free Shipping Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
The construction site fine stone mortar pump is applied in high-rise building ash mortar and fine stone concrete transportation, secondary structure column grouting, reservoir, hydropower station, port, dock, various pressure grouting, foundation treatment, weak foundation, reinforcement grouting, tunnel Backfill grouting anchor support in subway and mine construction. Other descriptions This product adopts hydraulic feeding, and the double-cylinder reciprocating operation of vibrating net filter can completely transport various mortars, fine stone concrete, etc. in building application. This product has large displacement, high pressure, labor saving, flexible movement, etc. Features, is an ideal mortar conveying equipment. The pump is widely used in indoor construction of urban construction projects (such as infusion of structural columns and invisible columns), anchorage grouting, consolidation grouting and backfill grouting works for underground tunnels of urban subway hydropower stations. It can also be used for grouting of anchor piles during slope and soft rock reinforcement.zmwm21
Product Parameters
Parameters of Free Shipping Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump

Project	Unit	HBTS25	HBTS40	HBTS60	HBTS80
Maximum theoretical delivery	m³/h	23	40	60	80
Maximum outlet pressure	Mpa	8	13	13	13-16
Maximum theoretical transport distance	m	100/300	200/800	240/1100	240/1100
Motor Power	kw	30	55	90	90-110
Feeding height	mm	1200	1200	1350	1350
Pumpable concrete maximum particle size	mm	≤50	≤40	≤40	≤40
Most suitable for pumping concrete slump	cm	15-23	15-23	15-23	15-23
Duct inner diameter	mm	Φ125	Φ125	Φ125	Φ125
Host weight	Kg	1900	3400	5000	5600
Dimensions: length × width × height	mm	3300×1600 ×1800	4300×1600 ×1800	5500×1800 ×2000	5800×1800 ×2000

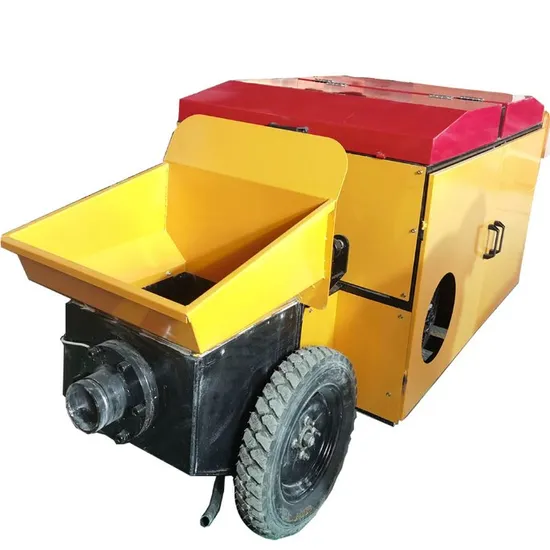

Detailed Photos
Photos of Free Shipping Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
