Severo Control Automatic Screen Printing Machine

Product Description

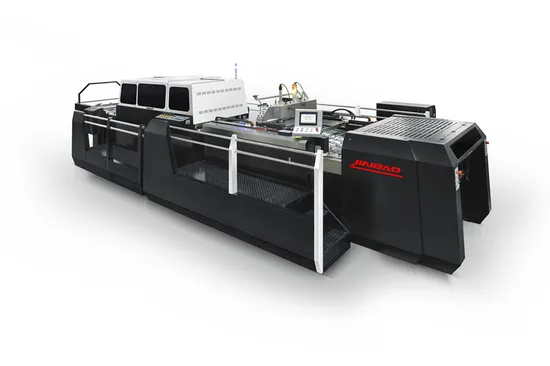

JB-106AS Servo Motor Controlled Automatic Stop Cylinder Screen Press
It is a new type of intelligent screen printing machine independently developed and designed by our company with completely independent intellectual property rights. It has three invention patents and five utility model patents. The speed of full-size printing can be up to 5000 pieces / hour under the requirement of ensuring the quality of printing products. For example, the speed of personalized product printing can be up to 6000 pieces / hour. It is the best choice for paper and plastic packaging, ceramic and cellophane, textile transfer, metal signs, plastic film switches, electronic and electrical components and other industries.

	JB-106AS
Max.sheet size	1060×750mm²
Min.sheet size	560×350mm²
Max.printing size	1050×750mm²
Frame size	1300×1170 mm²
Thickness of sheet	90-500 g/m²
Border	≤10mm
Printing speed	800-5000sheet/h
Installation power	3P 380V 50Hz 24.3Kw
Total weight	4600KGS
Overall size	4850×4220×2050 mm

Partical features:
Heavy pneumatic squeegee system
Heavy duty precision squeegee system, comprehensive use of electronic, pneumatic, hydraulic, mechanical, optical fiber and other advanced technology, can be preset pressure of squeegee, squeegee down position; squeegee pressure keep constant after confirmed, ensure to precise control the printing ink layer thickness
and ensure the printing quality is perfect.
Screen plate compensation device
Automatic compensation for printing length s contraction and extension
Automatic compensation for the substrate length change caused by former printing process
Pneumatic side-layVacuum side pull type side-lay will not cause the graphic side print damaged, dirty printed side and graphics; one body style variable pull&push side-lay; pull or push accurate positioning, positioning stroke long, positioning fast, convenient adjustment; Photoelectric detection system for real-time monitoring of the printed substrate in place situation, reduce the printing waste rate. The most advantage of this type pneumatic side-lay is the largest contact between micro suction board and substrate, it is different from the ball type side-lay which focus the force at one point, so that avoid the print graphics to be damaged or dirty on double side printed substrate which always happened by ball type side-lay, and operator can be informed if the substrate is not in place by detected, make the operation more convenient.
Separated screen frame structure
screen frame can break away from transmission part and be pulled out, it's easy for adjusting the registration and feeding; meanwhile it is must safer and faster for cleaning of cylinder and screen;Opto sensors automatic detection system to ensure the reliability of the action and avoid rack breakage or damage of main drive;
