Double Wall Insulation Solid Storage IBC Tank with Quick Connector

Product Description

Company Profile
Dalian Baoxiang Packing Products Co., Ltd. Is the professional design manufacturer of metal storage and transportation equipment that have over 30 years experience in producing kinds of IBC tanks, and has the ability to provide design solutions according to customers' needs. Tank capacity, size, shape, material, thickness, surface treatment, valve configuration, etc can both be designed according to the nature and process of storage materials. OEM & ODM orders are all welcomed.
Our factory is located in the Ganjingzi Industrial Park in Dalian, covering an area of 5000 square meters, and is well-equipped with various production machinery, including several specialized machines imported from Germany. With strong production capacity, we can produce 300-400 sets of standard containers per month. For custom-made products, delivery schedules are determined after finalizing the drawings, ensuring accurate and on-time delivery without delays. Our factory has a professional management team and experienced production staff. The production and design departments have decades of experience in the industry, allowing us to provide design and production services based on customers' usage and needs. Factory employees receive regular skills and safety training, ensuring their physical and mental well-being as well as the high quality of our products.
We have been built the close and harmonious cooperative relationship with more than 100 chemical factories, food factories and cosmetics manufacturers in Japan for 30 years. With the development and expansion of the company, our products are also well received in Europe, America and the Middle East. Our company has passed ISO-9001 system certification and TUV, SGS certification, many products have passed UN certification. Product quality is fully guaranteed.

Product Description

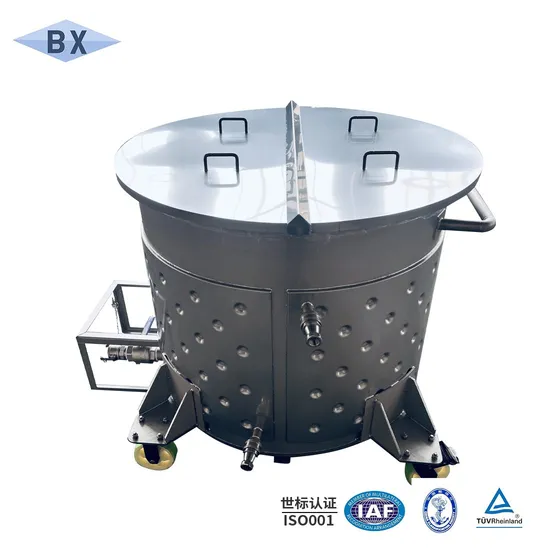

Name	Stainless steel storage tank
Capacity	50L-50000L
Material	SS304 with galvanized iron frame/ All SS304/ SS316L+ SS304 frame/ All SS316L
Size	Standard size: 1140*1140*1300mm (For load 40 pcs in one 40HQ container) Can also be customized as customers' need.
Weight	Around 220Kg (based on size and fittings)
Maxing working pressure	0.02Mpa
Connection	Thread, tri-clamp, flanges etc. As customers' need
Surface treatment	2B plate, pickling, 400# food grade mirror polishing

Seals	Silicone, rubber, EPDM, PTFE
Technics	TIG welding; MIG welding;Laser welding;Automatic welding
Application area	Food industry, pharmaceutical industry, chemical industry, cosmetic industry, household use
Feature	Corrosion resistance
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty period	One year
OEM & ODM	Accept

Detailed Photos
Certifications
Certification is available upon request. Some products have applied UN certification provided by CCS.
1. General Inspection
Empty tank weight confirmation, size check, sealing test
2. Stacking test
3. Lifting test by forklift
Lifting and lowering the tank each twice by using the forklift. No loss of contents, no deformation of tank.
4. Vibration test
Use the professional vibration test platform for 1 hour vibration test, more than 25mm amplitude.
5. Drop test
Drop the fully loaded tank from 1.4m height, no leakage
6. Air tightness test
Inject compressed air into the tank until the pressure gauge reaches 0.2MPa and keep it for 10 minutes. No leakage at welding and thread.


FAQ
1. What we have?
a. Professional design team and production team.
b. Strict quality management system and product quality inspection process before delivery.
c. Advanced technology, complete production equipment : self-developed automatic welder, CNC laser cutting machine, bending
machine, vibration test platform etc.
d. Perfect pre-sales and after-sales service system.
2. What can you buy from us?
a. IBC container
(Square, Column, with/ without frame, with/ without jacket can all be chosen)
b. foldable cabinet
(S.S.304/ galvanized plate/ carbonsteel/ metal + FPR can be chosen)
c. Mixing tank
d. Other matel products, customized according to customers' needs/ drawing.
3. What services can we provide?
Accepted Delivery Terms: EXW, FOB, CFR, CIF, FCA;
Accepted Payment Currency:USD, EUR, JPY, CNY;
Accepted Payment Type: T/T, L/C, PayPal;
Language Spoken:English, Chinese, Japanese, Korean;
4. How's the delivery time?
It depends on the design and quantity of the products, 20-50 days usually.
5. How about the packaging?
Packing is usually wrapped film, bubble wrap, paper shell board, wooden cases, or other packaging required by customers.
