Used Tire Recycling Machine / Rubber Powder Making Machine

Used Tire Recycling Machine / Rubber Powder Making Machine

US$23,600.00 1 Piece (MOQ)

Basic Info.

Model NO.
XKP400, XKP450, XKP560
Voltage
220V-660V
Structure
Vertical
Weight
<50 Tons
Type
General Rubber Machinery
Type of General Rubber Machinery
Material Processing Machine
Type of Tire Machinery
Rubber Regeneration Machinery
Power
10~100kw
Using Life
15 Years
Customized
Customized
Color
Blue, Green
Series
Tire Shredder
Material of Blade of Shredder
Special Stee
Transport Package
Tire Shredder Machine Exporting Standard
Specification
CE, SGS, ISO
Trademark
eenor
Origin
Qingdao, China
HS Code
84778000
Production Capacity
300 Sets Per Year

Product Description


Used Tire Recycling Machine / Rubber Powder Making Machine
Description:
· Slow Speed High,Torque Shredding Principle;
· Low Dust and Low Noise Operation as well as Low Maintenance Design;
· Shock absorbing shaft couplings between gearboxes and blade shafts reduce operational stresses;
· High Strength Cutters and Spacers manufactured from high quality heating-treated steels are suitable for shredding tough materials;
· Individual Cleaning Fingers mounted to the chamber sidewalls ensure quick discharge of shredded materials;
· Modular Chamber Design with split endplates and bearing housings enables quick access to key components;
· Advanced Adjustable Sealing System for the bearings;
· Stand Alone Electrical Control Panel with Siemens PLC Control System;we also can equip the PLC system with any other kind of world well-known brand as your appointed;
· Tested, Approved and Certified to the applicable CE safety standards and we also can achieve other standards as your request;
Car tyre / truck tyre recycling

Rubber powder processing equipments: This production line is used to make the waste tire or rubber into rubber powder or rubber crumb. It can make both radial tire and bias tire.
Technical parameters:
As follow of sheet.

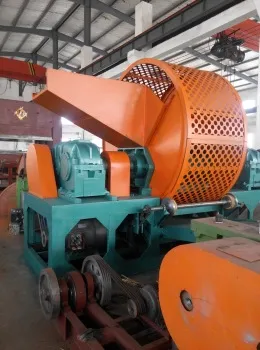

Pictures of shredder:

Model

TS-900

TS-1200

Production capacity

0.8-2ton/h

1.5-3ton/h

Size of feeding

≤900mm whole tyre

≤1200mm whole tyre

Specification of the slice

≤50*50mm

≤ 5 0* 5 0mm

Motor power

74 kw ( 37*2 )

1 5 0 kw ( 75*2 )

Cutter rotate speed

16r/min

31r/min

Screener rotate speed

6r/min

8r/min

Dimension

2.8*2.1*2.4m

5.2*2.8*3.5m

Weight

10 .2T

1 9 .8T
