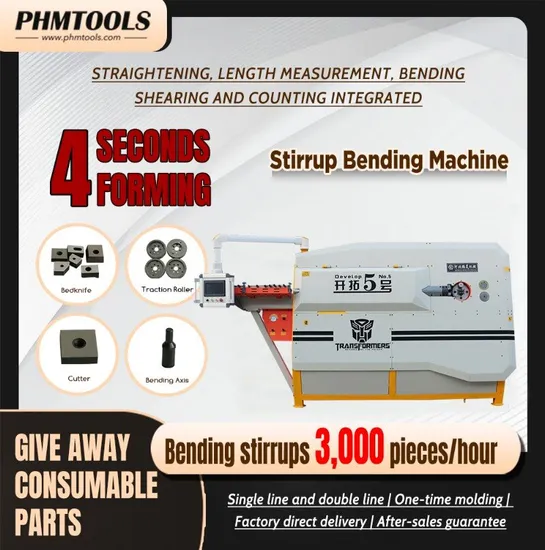

Develop No. 5 CNC Stirrup Bending Machine Wire Automatic Rebar Bender Machine
Basic Info.
Model NO.
Develop No. 5
Condition
New
Certification
ISO 9001:2008, CE
Automation
Automatic
Suitable for
Carbon Steel, Stainless Steel
Type
Cnc Bending Machine
Max Bending Angle (°)
±180
Max Bending Speed (°/S)
1200
Angle Precision(°)
±1
Total Power (Kw)
42 Kw
Weight(Kg)
2200 Kg
Productivity (Double Wire)
2200-2400(for Example 200*200mm Square )
Transport Package
Wooden Cases
Specification
3900*1100*2100 mm
Trademark
WNMTOOLS
Origin
Cn Hb
HS Code
8462269000
Production Capacity
1000 Set/Year
Packaging & Delivery
Package Size
390.00cm * 110.00cm * 210.00cm
Package Gross Weight
2200.000kg
Product Description
Product Parameters| Single wire bending (mm) | 5-14 Round bar | 5-14 Deformed bar |
| Double wire bending (mm) | 5-12 Round bar | 5-10 Deformed bar |
| Max bending angle (°) | ±180 | |
| Max traction speed (m/min) | 110 | |
| Max bending speed (°/s) | 1200 | |
| Angle precision(°) | ±1 | |
| Cut length precision(mm) | ±1 | |
| Average power consumption (kw/h) | 5 | |
| Total power (kw) | 32(include compressor ) | |
| Dimension(mm)(l*w*h) | 3900*1100*2100 | |
| Weight(kg) | 2200 | |
| Bending direction | Bi-directional | |
| Additional function | Two end bending(within 10cm ) | |
| Productivity (Double wire)(pcs/h) | 2200-2400(For example 200*200mm square ) | |
1.This equipment adopts CNC servo controlling system;
2. Automatically accomplish the functions of rebar's feeding, straightening, bending and cutting etc.;
3. Max bending diameter of coil is 14mm;
4. Continuously bend various stirrup of plane figure;
5. High efficiency and accurate processing precision, widely used in the construction industry, large steel processing plants and other fields.
