Robotics for Palletizing and Transporting Stone Slabs After Stone Processing

Product Description

Product Description
Industrial robot arms have many applications in the stone industry, mainly including the following aspects:
1. Stone handling and loading/unloading:
-Improving efficiency: Stone has a large weight and volume, making manual handling and loading difficult, inefficient, and prone to safety accidents. Robot arms can quickly and accurately grasp and transport stone materials, greatly improving transportation efficiency. For example, some large stone processing plants use robotic arms to complete the transfer of a large amount of stone in a short period of time, with a daily handling volume several times that of manual labor.
-Reducing labor costs: By reducing the demand for a large amount of manpower, one robotic arm can replace the handling work of multiple workers, which can significantly reduce the labor costs of enterprises in the long run.
-Protecting stone: The gripping force and precision of the robot arm can be precisely controlled, avoiding damage to the stone caused by uneven force or improper operation during manual handling, ensuring the integrity and quality of the stone.
2. Stone cutting:
-High precision cutting: The robot arm can cut according to preset programs and parameters, with high cutting accuracy and small errors, which can meet the requirements of the stone industry for high-precision cutting. For example, when cutting some special shaped stone products, such as irregular stone decorations, stone carvings, etc., the robot arm can accurately cut the required shape and size.
-Improving cutting efficiency: Compared to traditional manual cutting methods, the robot arm has a faster cutting speed, can work continuously, and is not affected by fatigue and human factors, greatly improving cutting efficiency.
-Safe and reliable: The stone cutting process generates a large amount of dust and debris, posing a threat to the health and safety of workers. Robot arms can work in hazardous environments, reducing workers' exposure to harmful substances and dangerous operations, and improving work safety.
3. Stone carving:
-Complex pattern carving: Able to accurately carve various complex patterns and textures, whether it is fine lines or three-dimensional reliefs, robot arms can easily complete them. This has brought higher artistic expression and creative space to the stone carving industry, meeting customers' demands for personalized and high-quality stone carvings.
-Good consistency: For mass-produced stone carvings, the robot arm can ensure consistent carving quality and effect for each piece, avoiding possible differences during manual carving and improving product quality stability.
-Save time and cost: The robot arm has a fast carving speed, which can complete a large amount of carving work in a short period of time, shortening the production cycle. Meanwhile, although the initial investment of robotic arms is relatively high, in the long run, due to their high efficiency and high-quality work, they can reduce the production costs of enterprises.
4. Stone grinding and polishing:
-High quality polishing: The robot arm can adjust the polishing force and speed according to the material, shape, and polishing requirements of the stone, achieving uniform and meticulous polishing and polishing effects, and improving the surface smoothness and texture of the stone.
-Improving the working environment: The process of stone polishing and grinding generates a large amount of dust and noise, which affects the health of workers and the working environment. Robot arms can work in enclosed environments, reducing the spread of dust and noise and improving the working environment.
5. Stone inspection:
-Size detection: By using sensors and measuring tools on the robot arm, the size of the stone can be accurately measured, and the parameters such as length, width, and thickness of the stone can be checked to ensure that they meet the standard requirements, and any size deviations can be detected in a timely manner.
-Surface defect detection: Through visual systems and image processing technology, robotic arms can detect the surface of stone, identify defects such as cracks, flaws, color differences, etc., and improve the efficiency and accuracy of stone quality detection.

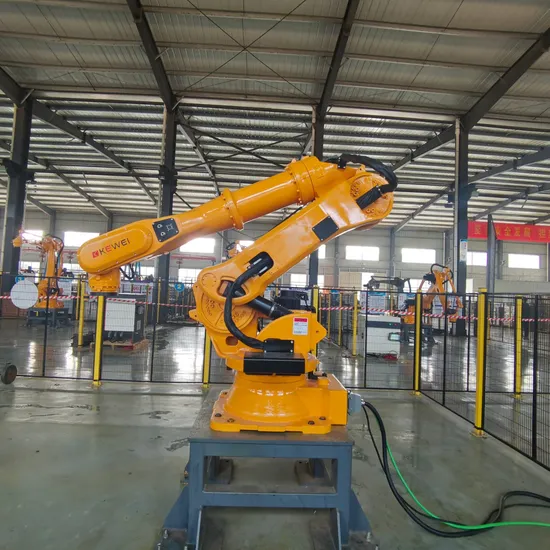

Detailed Photos
Product Parameters

name	Robot Palletizer	Operating range	basic axis	J1	±180°
type	Vertical joint 4 degrees of freedom			J2	-60°+90°
Main purpose	Handling,palletizing, loading and unloading			J3	-150°+80
model	KW1220B-3200		Arm axis	J4	±180°
Maximum portable weight	220KG			J5	±125°
Position repetition accuracy	±0.06mm			J6	±360°
Power capacity	11KVA	Installation method			ground
P point action range	See the figure below	Environmental conditions for use			0-45°C,20-80%RH(without condensation)
Body weight	1060KG	Protection leve			Equivalent to IP54

Certifications
Qualification and Honor
Packaging & Shipping
Transportation method: Shipping
Packaging method: wooden crate
