Manual Lathe Machine Cm6241X1000/1500mm Large Horizontal Metal Turning Lathe Machine

Product Description

Manual Lathe Machine CM6241x1000/1500mm Large Horizontal Metal Turning Lathe Machine
Product Description
Features :
Super voice frequency heated bed ways.
Hardened and grounded gears in the headstock.
With 2 precision D degree taper roller bearings on the spindle.
Integrated deluxe cast iron floor stand.
Tolerance test certificate, test flow chart included.
Product main technical specifications:

SPECIFICATION	CM6241
Swing over bed	410mm(16")
Swing over cross slide	255mm(10")
Swing in gap	580(23")
Length of gap	250(10")
Distance between centers	1000mm(40") /1500mm(60'')
Center height	205(10'')
Width of bed	250(10")
Spindle nose	D1-6
Spindle bore	52mm(2")
Taper of spindle bore	No.6Morse
Range of spindle speed	16 changes 45-1800r/min
Max travel of compound rest	140mm(5-1/2")
Max travel of cross slide	210mm(8-1/4")
Leadscrew pitch	4T.P.I.
Max.Section of tool	20×20mm(13/16")
Longitudinal feeds range	0.05-1.7mm/rev(0.002"-0.067"/rev)
Cross oeeds range	0.025-0.85mm(0.001"-0.0335"/rev)
Metric threads range	39kinds 0.2-14mm
Inch threads range	45kinds 2-72T.P.I
Diametrical pitches range	21kinds 44D.P.
Module pitches range	18kinds 0.3-3.5M.P.
Dia.of tailstock sleeve	50mm(2")
Travel of tailstock sleeve	120mm(4-3/4")
Morse taper of tailstock sleeve	No.4 Morse
Cross adjustock	±13mm(±1/2")
Power of main motor	2.8/3.3kw(3.8/4.5HP)3PH
Power of coolant pump	0.1KW(1/8HP),3PH
Overall dimension(L×W×H)	1940/244×850×1300mm
Packing size(L×W×H)	2060/2560×900×1640mm
Net weight/Gross weight	1160/1350 1340/1565kg

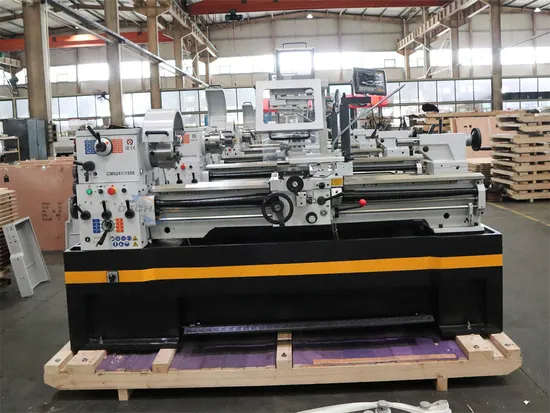

Detailed Photos
