20+ Years Manufacture Corrugated Steel Zinc Metal Glazed Iron Roof/Wall/Roofing Panel Profile Cold Roll Forming Machine with Stacker

20+ Years Manufacture Corrugated Steel Zinc Metal Glazed Iron Roof/Wall/Roofing Panel Profile Cold Roll Forming Machine with Stacker

US$20,000.00-100,000.00 1 set (MOQ)

Basic Info.

Model NO.
ZYYX30-200-1200
Tile Type
Colored Steel
Certification
CE, ISO, SGS
Condition
New
Customized
Customized
Usage
Roof, Wall
Transmission Method
Hydraulic Pressure
Control System
Mitsubishi PLC
Coil Width
1220mm/1450mm
Suitable Coil Thickness
0.3mm-0.8mm
Yield Strength of Raw Material
250-550MPa
Forming Speed
Max. About 35-40m/Min
Hydraulic Station Power
2.2kw
Manual Decoiler
Max. Capacity: 10t
Transport Package
1*20+1*40gp
Trademark
zhongyuan
Origin
China
HS Code
84552210
Production Capacity
84552210

Packaging & Delivery

Package Size
1200.00cm * 185.00cm * 160.00cm
Package Gross Weight
15000.000kg

Product Description

20+ years manufacture corrugated steel zinc metal glazed iron roof/wall/roofing panel profile cold roll forming machine with stacker
Product Parameters

Machine model Roof Machine Operation way Automatic machine
Certification ISO9001,CE Warranty 36 Months
Customized Customized Advantage More 10 years life time
Weight About 15T Material thickness 0.3 mm-0.7mm
Suiting material PPGI steel coils Cutting material Cr12 .MOV.
Main motor 7.5KW Forming rollers qty. About 27 stations
Shafts diameter 72mm Roller Material 45# Steel, plated chrome
Machine frame H350 Wall thickness 40mm
Forming speed 30-35m/min. Transportation In Containers,suiting for sea and road transmission.
Trademark Zhongyuan HS Code 84552210


Components of roof forming machine
Decoiler (manual decoiler and hydraulic decoiler for option) 1set
Feeding & guiding device 1set
Main roll forming machine 1set
Hydraulic cutting system 1set
Controlling system 1set

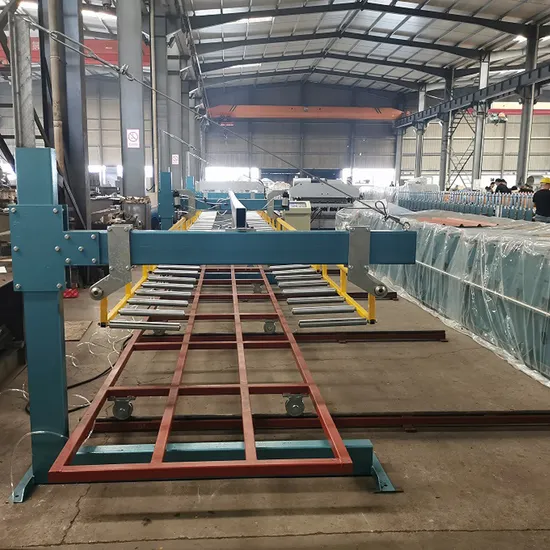

Run out table (auto. Stacker for option) 1set


Our Advantages
Zhongyuan Machinery Manufacturer established in the year 2003,manufacturing and exporting Metal Roll Forming Machines.
All efforts are devoted to the research and development of how to provide customers with high-quality and durable molding machines
Our main product Metal Roll Forming Machine, such as C/Z Purlin Roll Forming Machine, Cold Sheet Forming Machine,Metal Deck Roll Forming Machine,Metal Deck Roll forming Machine. etc.
Our company has successfully established and passed the ISO9001 quality insurance system,
Also they had been approved with CE certificate.
For our roll former, 36 month free warranty,
And our company promises that we will provide product service life maintenance service.
Sales area Experience Machines produced

70+ countries 22+ years 1200+ sets
How to produce roll forming machine in Zhongyuan?
1. Choose good quality raw material for machines
We buy raw material for our made machines such as steel plate. H steel frame and steel pipes from

famous companies in China. For example buy material from An Steel and Hangzhou Iron and Steel Group.
2. Process rollers in CNC Lathe
All Rollers manufactured from 45# steel
CNC machines can improve rollers precision.
Chromate finish on surface to add hardness of rollers.

3. High Accuracy Shafts
Solid shafts dia.72 mm for material thickness.
All shafts are tooled twice by cylindrical grinding machine to ensure final precision. Guarantee buyers
get high accuracy deck sheet from Zhongyuan made machine.

4. Machine frame is processed on surface by 10m planning machine.
Machine frame made from H350 type steel by welding, planned on surface to guarantee precision.
All the screw bolts with grade 8.8(Some other factories use low grade4.8) to ensure fix the machine
structure tightly and long life during the machine long time running. Side wall thickness: 40mm

5. Automatic PLC Control System
Control The Quantity And Cutting Length Automatically
Input the production data(such as production quantity,Length,etc.)on the touch screen , machine
can finish the set production plan automatically.
Components of control system PLC, Inverter, Touch Screen, Encoder, relays, etc
PLC Mitsubishi (Japanese brand) (Siemens for option)
Inverter Mitsubishi (Japanese brand) (Siemens for option)
Touch screen Mitsubishi (Japanese brand) (Siemens for option)
Encoder OMRON or NEMICON (Japan brand)
Limit switch Cut-to-Length Tolerance≤±1 mm

Packaging & Shipping

1.1*20+1*40GP container for loading one
roofing sheet making machine with decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.
Delivery : about 90 days
Hot Product
Company Profile
22+ years history in Metal roll forming machine industry
25+ years experienced engineers
Focus on machine quality with reasonable price
59 sets processing equipment, including in 12 sets CNC tooling machines.
Experienced technician can be sent to install machines abroad
100+ sets of machines exported each year
70+ countries using Zhongyuan Machines
Zhongyuan Machinery Factory is much experienced manufacturer of metal forming machinery with ISO quality system. " All-in-house source" - from raw material to the final high-precision roll forming machine,all done in Zhongyuan machinery factory. So that we can control our made roll forming machines quality and delivery time of roll forming machines. Our R&D department is staffed with senior engineers who have 25 years experience in metal forming machine industry.
Zhongyuan company has built a competitive cost advantage through the model of trying large-scale manufacturing and centralized procurement. In the past, present and future, as a well-known metal forming equipment manufacturer in China, Zhongyuan has always been customer-centric, strives for survival by quality, insists on the selection of high-standard raw materials and high-quality accessories, and implements strict process standards and quality standards. To ensure the safety and reliability of product performance, and continue to provide our customers and friends with highly cost-effective products and services.
