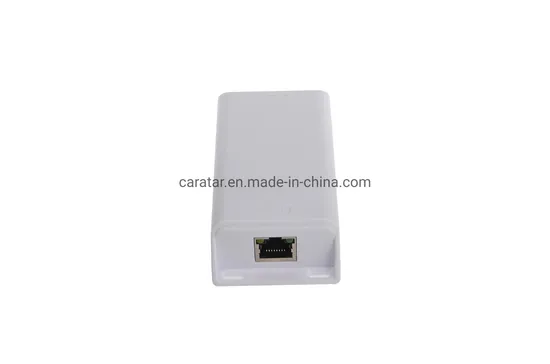

24V 25W Poe Converter 48V to 24V Gigabit Active DC Poe Converter

Product Description

24V 25W PoE Converter 48V to 24V Gigabit Active DC PoE Converter For 24V PoE Devices Such as 24V MikroTik Routerboard
Gigabit Mode A/B inline step down splitter that convert 48-56 volts Mode A/B to 24volt Mode B
This device provides a low cost solution for delivering power to a 24 volt device over 328ft of network cable. This scheme allows power to be carried on 10/100/1000 networks over active data pairs of a CAT5E, CAT6 or CAT7 Ethernet network cable. Use with any passive or 802.3af PoE switch or multiport PoE injector.
Product Features
RJ-45 connectors Male to PoE Switch Female to power device up to 378 feet away Input voltage range 48v to 56v DC IEEE 802.3af / IEEE 802.3at Output voltage 24v 1A Ubiquiti Mikrotik 24v IR 24v door locks Data rate is 10/100/1000 DC connector: 2.1mm x 5.5mm RJ45 Female Output: 24V 1A Passive PoE 4,5 (plus) 7,8 (minus)
Size 120 x 50 x 22 mm (Din Rail Case Design - Wall mount)


Specification
1. input: 802.3af/at 48-56V
2. output: 24V 25W
3. LED indicator, one for power, one for data
4. with 15cm DC Cable
5. 10/100/1000M version
6. CE/FCC/ROSH certificate

Input	48-56V DC RJ45
Output	24V 1A Passive PoE 4,5 (plus) 7,8 (minus) or 24V 1A PoE Splitter
Date	1/2&3/6 or 1236, 4578
Power	1/2 V+ & 3/6 V- or 4/5 V+, 7/8 V-
Data In	POE switch/injector
Weight	100g of gigabit POE converter
Type	24V 25W gigabit POE converter or 24V 1A splitter
Ethernet Cable	TIA/EIA 568 Cat. 5/5e/6/6e
Data rate	10/100/1000Mbps Gigabit
Connector	RJ-45
Operating Temperature	-40°C ~ 70°C
Storage Temperature	-40°C~+70°C
Operating Humidity	10%~80%RH
Storage Humidity	5%~90%RH
Certification	CE, FCC, RoHS
