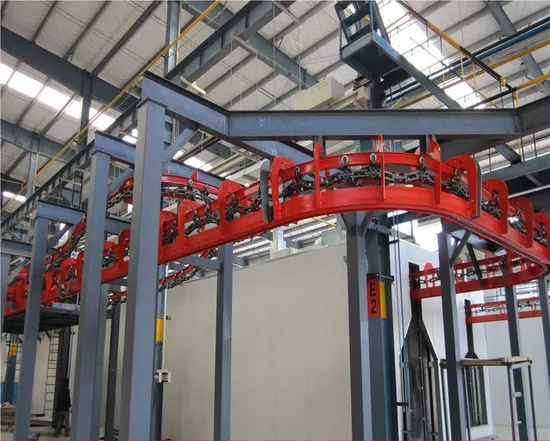

Overhead Conveyor System in Coating Line
| US$50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
OURS-201525
Material Feature
Heat Resistant, Fire Resistant
Application
Coating Line
Condition
New
Length
as Per The Client
Design
as Per The Client
Dedicated Chain Type
Protection Towline
Structure (for Chain)
Roller Chain
Leaf Chains Type
Mine High-Intensity Ring Chain
Detachable Chain Type
Steel Roller Conveyor Engineering
Chain Size
1/2" *3/32"
Usage
Transportation, Drag , Dedicated Chain
Series
3-Stage
Color
Solid Color
Transport Package
Standard Container
Specification
CE, SGS, ISO
Trademark
jsours
Origin
China(Mainland)
HS Code
8428330000
Production Capacity
6 Sets Per Month
Product Description
Overhead Conveyor System in Coating LineTechnical advantages:
1. Flexible layout
2. Small floor space
3. Continuous and adjustable running
Summary:
Overhead chain conveyor is the device which could overhead continuously carry the materials, the materials are fixed in appropriative boxes and holder and run along the pre-selected track. The conveyor line could upslope and downslope and turn a corner. It is widely used in the fields of machinery,automobile,food and chemical etc.
| Main parts: | ||
| 1 | Overhead track | Formed a closed loop |
| 2 | Hauling chain | Connected with each carriage |
| 3 | Carriage | Running along the closed loop |
| 4 | Hanger | Load the workpieces |
| 5 | Redirection device | Help the workpieces change the direction |
| 6 | Actuating device | Provide the power for running |
| 7 | Tensioning device | Provide the enough tension |
| 8 | Safety device | Avoid the potential risk caused by the misoperation and the breakdown |
| Technical specification: | ||
| 1 | Width of the line body | 250-900mm, as per the client. |
| 2 | Height of the line body | 500-1000mm |
| 3 | Length of the line body | 30-40m, conveying speed:2-20m/min |
| 4 | Type of chain | The speeds of chain and delivery roller are the same, but the speed of double pitch delivery roller, chain and delivery roller are different. |
| 5 | Type of tooling plate | Steel plate, wood plate |
| 6 | Material of frame | Carbon steel, aluminum profile |
| 7 | Electricity | Set up with conductive casters in the line body and conducting bar in the tooling plate. |
| 8 | Power supply | Single-phase 220V,Three-phase 380V 50HZ |
Product packaging:
| Product Catalog: | |
| *Coating lines | Automatic/Manual/Semi powder coating line; Automatic/Manual/Semi paint spraying line; Electrophoretic painting line; Electrostatic powder coating/painting line etc. |
| *Coating booths | Powder coating booth with large cyclone; Powder coating booth with small cyclone; Powder coating booth with recycling system; Painting booth; Water curtain painting booth, Sand blasting booth; Shot blasting booth etc. |
| *Conveying systems | Chain conveyor, Belt conveyor, Plate conveyor, Overhead conveyor and Power and free conveyor are all available according to the clients' requirements. |
| *Coating ovens | Drying oven and curing oven with various heating energy, like gas, electricity, diesel etc. |
| *Coating machines | Electrostatic powder coating gun (OURS-808 and OURS-2014); Airless paint sprayer etc. |
| Our service: | |
| *Free design: | Free drawing designed by our engineer according to the actual requirements of clients. |
| *High quality and competitive price: | We promise to provide high quality equipment with best price. |
| *Customized equipment: | Customized equipment completely based on the drawing. |
| *Overseas installation and commissioning: | On-site installation and commissioning of coating lines. |
| *Warranty | At least one year after the acceptance of the client. |
If you are interested in our products, pls don't hesitate to contact us, we will give you the most professional reply and support within a short time.
