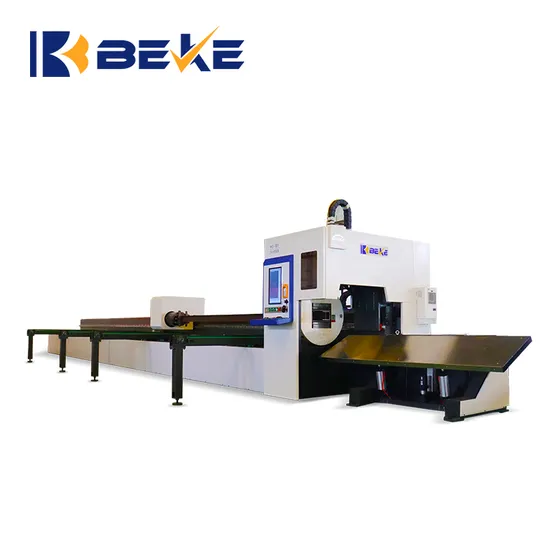

Beke Automatic Feeding Fiber Laser Tube Pipe Cutting Machine
Basic Info.
Application
Petroleum Machinery Manufacturing, Aerospace Industry, Automotive Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Fiber Laser
Laser Technology
Fiber Laser Cutting
Laser Type
Fiber Laser
Working Mode of Laser
Continuous/Pulse
Cooling Mode
Water-Cooling
Standard Output Power
12000W
Maximum Diameter of Pipe
350mm
Maximum Pipe Length
12m
Cuttable Material
Stainless Steel, Carbon Steel, Aluminum, Copper
Transport Package
Cover with Plastic Film
Specification
14020x2335x1950mm
Trademark
BEKE
Origin
China
HS Code
8462490000
Production Capacity
50 Set/Month
Product Description
Product DescriptionProduct Parameters
| Model | BK-360-G-13M |
| Laser type | Fiber laser |
| Working mode of laser | Continuous/pulse |
| Cooling mode | water-cooling |
| Standard output power | 12000W |
| Maximum cutting speed | 80m/min |
| Travel Y-axis | 12000mm |
| Travel Z-axis | 350mm |
| Cuttable material | Stainless steel, carbon steel, aluminum, copper, manganese, nickel and other arbitrary metal materials |
Main Configuration
| No. | Item | Model | Brand |
| 1 | Laser tube cutting machine | BK-360-G-13M | BEKE technology |
| 2 | Cutting head | BS12K | China |
| 3 | Laser | MAX | Shenzhen, China |
| 4 | Servo drive and motor | Bochu | Taiwan/Shenzhen |
| 5 | Special CNC cutting system | BEKE customized | China |
| 6 | Laser specific chiller | Hanli/Tongfei | China |
| 7 | Pneumatic components | SMC | Japan |
| 8 | Proximity switch, etc | Schneder | France |
| 9 | Reducer | MOTOVARIO | France |
| 10 | High precision linear guide rail | HeRen/HIWIN | German/Taiwan |
| One of the control software of fiber laser cutting machine -- Bochu system. Cypress cypcut laser cutting control software is specially used for the control and operationof laser cutting machine, which is very convenient and practical. lt can achieve thebest cutting effect with the laser cutting machine. Fiber laser adopts air-cooled compact structure design, semiconductor fiber as laser generation medium, green environmental protection, simple mechanical structure, constant optical path, basically maintenance free, stable cutting performance. | |||
