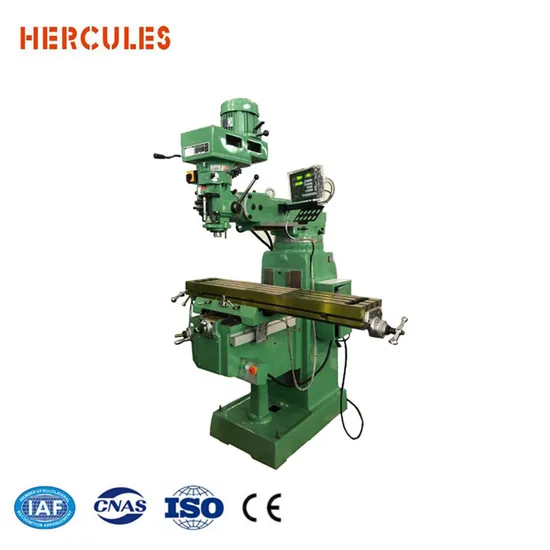

Custom Parts M3E Vertical Turret Milling Machine for India Market
| US$2,500.00-6,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M3E
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Spindle speed
80~5440rpm 16steps
Spindle taper
R8/ISO30/ISO40
work table
1270*254/ 50"X10"
Transport Package
Pallet
Specification
1750*1500*2100
Trademark
Hercules or OEM
Origin
China
HS Code
8459699000
Production Capacity
20000sets/Year
Product Description
Turret Vertical Milling Machine, Economic seriesPerformence Features:
1. M3E Turret Milling Machine has reasonable construction, superior machining functions such as drilling, boring, milling of plane, inclined plane and slot,
and such functions available by use of the corresponding attachments as milling of helix slot,
round surface, rack, gear and spline.
2. Rectangular guide way on Y-axis is featured a good rigidity and stability,
the guide way on Radial Milling Machine saddle is lined with TF wearable material
3. High speed milling head from Taiwan
4. Harden the slide way and table surface
Standard configuration:
Collet chuck kits
Drill chuck
Draw bar
Reduction sleeve
Work lamp
Electrical cabinet
Coolant system
Wrenches
Plastic Cover
Optional parts:
3-axis DRO
X-axis ALSGS power feed
Y-axis ALSGS power feed
Z-axis ALSGS power feed
Air draw bar
Variable speed milling head
6" Machine vice
Separately operate panel box
Specification:
| Model | M3(M3E) |
| Economic Series | |
| Table size(L*W)(mm) | 1270x254 |
| Max.load of table (kg) | 300 |
| X axis(mm) | 900 810 with power feed |
| Y axis(mm) | 400 |
| Z axis (mm) | 400 |
| Work table T slot (No.-size*pitch) (mm) | 3-15.88x63 |
| Distance between spindle and table(mm) | 45-450 |
| Ram travel (mm) | 380 |
| Travel of spindle quill (mm) | 120 |
| Auto crossward feed(mm/rev) | 0.04,0.08,0.15 |
| Spindle speed(rpm) | 80-5440rpm 16steps |
| Spindle hole taper | R8 / NT30 (optional ) |
| Main Motor | 3HP |
| Tilt angle for milling head | left and right±90º forward and backward±45º |
| Guiding tracks(X.Y.Z) | △△△ |
| Dimension(L*W*H)(mm) | 1750x1500x2100 |
| Milling head | Round step milling head |
| Weight (kg) | 1100 |
Machine Images & Production Processes
