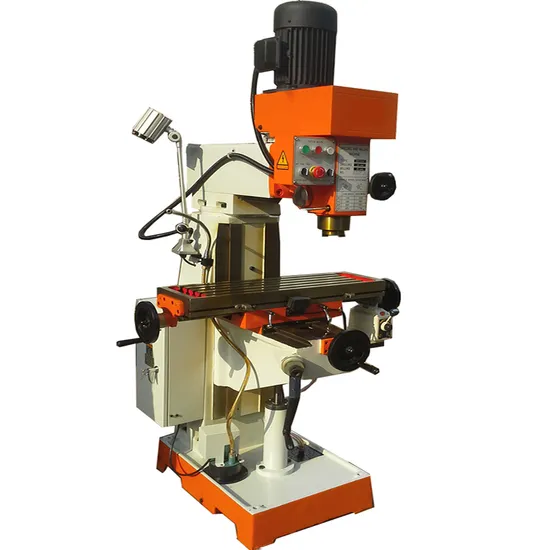

Gear Drive Belt Drive Universal Vertical Drilling and Milling Machine Zx7550cw
| US$2,750.00 | 1 set (MOQ) |
Basic Info.
Model NO.
zx7550cw
Type
Universal
Object
Metal
Structure
Knee Type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Name
Drilling and Milling Machine
Table Size
800X240mm
Table Travel
400X230mm
Spindle Taper
Is030
Max Drilling
50mm
Max Vertical Milling
25mm
Max Boring Dia
120mm
Max Horizontal Milling
100mm
Spindle Travel
120mm
Horizontal Speed
60-1350rpm
Vertical Speed
115-1750rpm
Horizontal Motor
1.5kw
Vertical Motor
0.85/1.5kw
Transport Package
Ply Wooden Case
Trademark
uni-tech
Origin
China
HS Code
84595900
Production Capacity
100sets/Month
Product Description
gear drive belt drive universal vertical drilling and milling machine zx7550cw FEATUREdrilling and milling machine feature:
Main features:
1.Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press
2.Easily shiftable gear drive ensures power transmission without losses
3.With V-belt spindle drive and gear spindle drive
4.Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5.Three axis hardened treatment, high rigidity.
6.vertical horizontal multi-functional ,drilling ,milling, boring operation.
7.X axis mechanical feed,Y.Z axis can be added the device
8.Gear transmission milling head, stable transmission, compact structure ,easy maintenance, easy to operate
SPECIFICATIONS
drilling and milling machine specification:
| Model | ZX7550W | ZX7550CW |
| Max.drilling dia (mm) | 50 | 50 |
| Max.horizontal milling dia (mm) | 100 | 100 |
| Max.vertical milling dia (mm) | 25 | 25 |
| Max.boring dia (mm) | 120 | 120 |
| Max.tapping dia | M16(Vertical) | M16 |
| Spindel Tapper | ISO30/R8 | ISO30/R8 |
| Distance.spindle to table surface (mm) | 80-460 | 90-490 |
| Spindle speeds range (r.p.m) | 230-1825(Vertical) 80-1300(horizontal) | (Vertical)115-1750 (Horizontal)60-1350 |
| Spindle travel | 120 | 120 |
| Table size (mm) | 800x240 | 800×240 |
| Table travel (mm) | 400x230 | 400×230 |
| Overall dimensions (mm) | 1280×1100×2080 | 1280×1100×2080 |
| Motor (Kw) | 0.85/1.5(Vertical) 1.1(horizontal) | ( Vertical)0.85/1.5 (horizontal)2.2 |
| N.W/G.W (Kg) | 700/880 | 850/1000 |
| Model | ZX7550 | ZX7550C |
| Max.drilling dia (mm) | 50 | 50 |
| Max.horizontal milling dia (mm) | 100 | 100 |
| Max.vertical milling dia (mm) | 25 | 25 |
| Max.boring dia (mm) | 120 | 120 |
| Max.tapping dia | M16 | M16 |
| Distance.spindle to table surface (mm) | 140-490 | 90-490 |
| spindel taper | ISO30/R8 | ISO30/R8 |
| Spindle speeds range (r.p.m) | 230-1825 | 115-1750 |
| Spindle travel | 120 | 120 |
| Table size (mm) | 800×240 | 800×240 |
| Table travel (mm) | 400×230 | 400×230 |
| Overall dimensions (mm) | 1100×1100×2080 | 1100×1100×2080 |
| Motor (Kw) | 0.85/1.5 | 0.85/1.5 |
| N.W/G.W (Kg) | 610/770 | 610/770 |
ACCESSORIES
drilling and milling machine accessories:
Standard Accessories:
1.Drill chuck
2.Mill chuck
3.Reduction sleeve
4.Maching vice
5. Wrench
6. Inner-hexagonal spanne
7. Camlock
8.Wedge shifter
9. Spindle arbor
10. Horizontal milling bilt
11. Operation manual
12.Quality certificate
13. Packing list.
Optional Accessories:
1.Digital read out
2.Milling chuck collets
3.Machine vice
4.Clamping kits
5.Universal dividing head
6.Rotary work table
7.Slotting head
Detailed Photos
drilling and milling machine more photos:
If you are interested in drilling and milling machine , pls contact us
TENGZHOU UNI-TECH CO.,LTD
Contact person : kitty xu
