CE Certificate Forklift Parts Forklift Fork

Product Description

1. I.T.A/FEM/ISO FORKS DATA

ISO Standard	FORKS(mm)		CARRIAGE(mm)
Class A,B	M	K	A	B	C	D
I	394/432	306	76/114	331	13	16
II	470/545	382	76/152	407	13	16
III	568/695	477	76/203	508	16	21.5
IV	743/870	598	127/254	635	19	25.5
V	830/960	680	127/257	728	25	34

Data Sheets

Metric Market
Model	Cross Section (mm)	Capacity*Load center (kg/mm)
2A	80x40	1000*500
2A	100x30	750*500
2A	100x35	1000*500
2A	100x40	1250*500
2A	100x45	1500*500
2A	100x50	1650*500
2A	120x35	1000*500
2A	120x40	1500*500
3A	120x45	1500*500
3A	120x50	2450*500
3A	125x40	1500*500
3A	125x45	2000*500
3A	125x50	2500*500
3A	130x40	1500*500
3A	130x45	2000*500
3A	130x60	3000*500
3A	140x50	2700*500
4A	150x50	2500*600
4A	150x60	3500*600
4A	150x65	4000*600
4A	150x70	4500*600
4A	150x75	5000*600

Inch Market
Thickness x Width (inch)	Metric Size(mm)	Capacity*Load center(kg*mm)
1 1/2 x 3	80x40	850*600
1 3/8 x 4	100x35	850*600
1 1/2 x 4	100x40	1150*600
1 3/4 x 4	100x45	1400*600
2 x 4	100x50	1750*600
1 1/2 x 5	125x40	1400*600
1 3/4 x 5	125x45	1750*600
2 x 5	125x50	2150*600
2 x 6	150x50	2600*600
2 1/4 x 6	150x60	3750*600
2 1/2 x 6	150x65	4400*600
2 3/4 x 6	150x70	5100*600
3 x 6	150x75	5850*600
2 3/4 x 8	200x70	4530*900
3 1/2 x 8	200x90	7500*900
4 x 10	250x100	8675*1200
4 x 12	300x100	10425*1200
5 x 12	300x125	13575*1200
6 x 12	300x150	23425*1200

1.Only popular cross section are listed above.We can produce up to 450mm X180mm.
2.The max. length we make is 6000mm and max. back height is 2500mm.
3.Steel Certificated as:
Material: 40Cr--C%: 0.37-0.44; Si%: 0.17-0.37; Mn%: 0.5-0.80; Cr%: 0.80-1.1
Mechanical Specifications:
Tensile Strength: 935MPA/MM Reduction of Area R/A: 51%
Yield Strength: 805MPA/MM Impact Energy: 27J (-20oC-V)
Surface Hardness: 255-385HB Elongation: 12%
4.All forks comply with a minimum safety factor of 3:1.
5. We use "robot" welding to supply first class products.

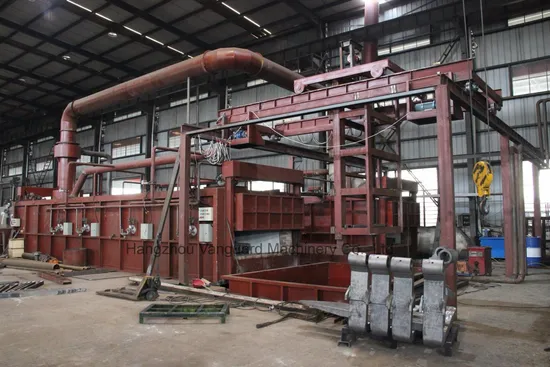

2. MIK FORK ARMS FLOW CHART
Unique Advantages:
1. Robotic Welding
- to ensure more stable and safer welding quality.
2. Heel-Guard® Design
- to double the forks' life!
3. Preheating Control
- infrared thermometer warning.
Super Quality Control:
