Gangsaw Diamond Segment for Gangsaw Blades

Product Description

Gang Saw
BM-60/80/100/120/S800 Diamond Gangsaw is a sliding sleeve double link saw for sawing blocks of marble or other limestones, sandstone, synthetic stone with a system that lifts the block as it's sawn.
This gangsaw, also know as diamond frame saw, diamond row saw and marble frame saw, has been designed to get perfect output at low operational cost. It's highly urged for the reliable functionality, rust resistance, easy operation, low maintenance and durability.
Main Features: 1. Adopt table lifting feeding mode for sawing, frequency conversion drive.
2. Static pressure circular guide rail structure is adopted for reciprocating swing of saw frame. 3. Adopts double crank and double connecting rod structure.
4. Exclusive use of screw rod anti impact mechanical protection device.
5. Small current fluctuation, longer motor life.
6. Small running resistance, energy saving and power saving.
7. The saw frame can be assembled with 60/80100/120 diamond saw blades.
8. The saw frame has high straightness, good cutting quality and high yield.
9. It is more suitable for ultra-thin saw blade and cutting thin plate.
10. Intelligent control system with man-machine interface is adopted for easy operation, which can monitor various working states of the equipment, and display fault cause alarm prompt.

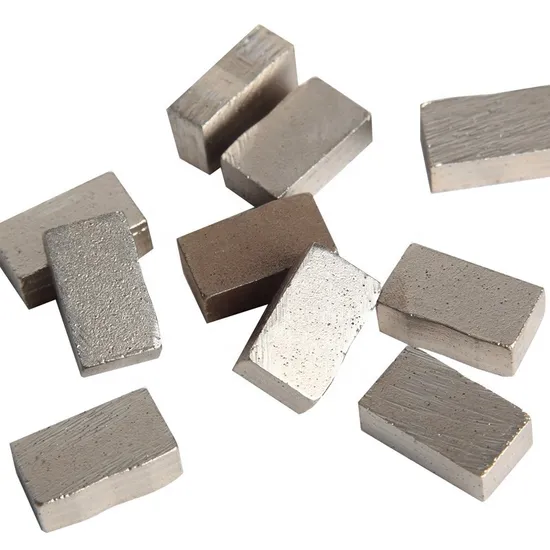

Gangsaw Segment
Features:
1.The segment has good sharpness and high efficiency at the process of cutting.
2.Smooth cutting ,flat surface and even size.
3.It works in low noise ,little pollution and small cutting slot.
Product Name	Specification	Core Thickness	Segment Dimension	Application
PMT Gangsaw Segment		2.5	20x4.6/4.0x8(10)	Marble/Limestone/other soft stone
		3.0	20x5.0/4.4x8(10)
		3.5	20x5.4/4.8x8(10)
	Boat-Shape	3.0	30/50x5/4.5x8(10)
Other specification are available upon request.

Now we sell to Rawalpindi,Islamabad,Peshawer,Mardan,Buner,Lahore,Gujranwala,Faisalabad,Karachi etc... The main cutting stone is marble like sunny white,sunny gray,jet black,black & gold,granite like black granite and tropical gray;verona;sandstone;limestone etc...
Product Parameters

Our gang saw blades specially are used for cutting marble, such as artificial marble, India green, verde ubatuba, beige cream, white marble, etc. Generally 80-100 pieces of blades are for one set of gang saw.It has the following advantage:1. Faster and smooth cutting.2. More output of the slabs.3. Less waste of the materials.4. Less general cost Blade Length Blade Width Blade Thickness Welding Segment 4300 180mm 1.7/2.0/ 2.5/ 3.0/3.5mm 27~28pcs 4350 180mm 1.7/2.0/ 2.5/ 3.0/3.5mm 28pcs 4400 180mm 1.7/2.0/ 2.5/ 3.0/3.5mm 28pcs
