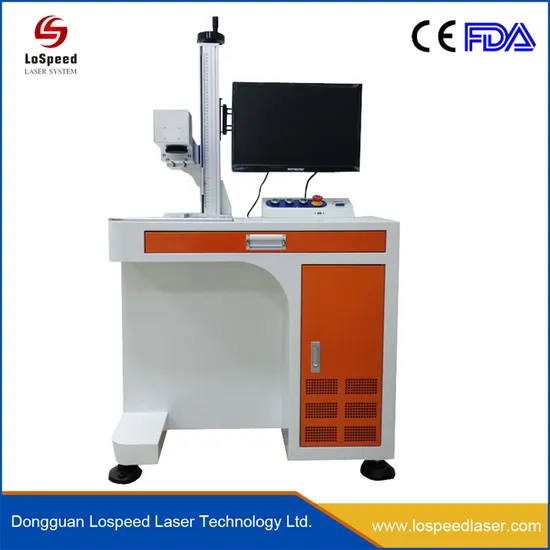

Desktop 20W Fiber Laser Marking Machine for Logo Marking and Printing

Product Description

Desktop 20W Fiber Laser Marking Machine for Logo Marking and Printing
Fiber laser Marking Machine for any type metals and some nonmetallic material
75*75mm, 110*110mm,175*175mm ,200*200mm, 300*300mm Marking Area Optional
20W 30W 50W 100W fiber laser power
Portable type, Standard type, Desktop type model Optional
Distributors/Agents wanted !
>>>Application of laser marking machine<<< It is mainly applied to the higher marking precision such as mobile phones buttons, plastic,translucent keys, electronic
components, integrated circuits (IC), electrical appliances,communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products, etc.
Electrical Engineering and Electrical part and component Mobile (Cover,battery,keyboard, I Phone Case) Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft Building materials,PVC pipe Car motor car spare part ,Insturment and meters and cutting tool plastic case,aviation and aerospace, military product,hardware fitting and accessory,sanitary appliance food and beverage ,Medicine package and medical instrument,solar Pv industry
>>>Features of laser marking machine<<< · Compact design, easy to move equipment, air-cooling, compact machine, good output beam quality,
high reliability, no consumables, maintenance-free.
· Long life Working time over100,000 hours long life span. Import Germany IPG fiber laser,
the international latest, most reliable structure, small size, power consumption is small,
no high-voltage without large water-cooled system.
· Close to the ideal beam, USB interface, output control, optical scanning system,
laser repetition rate high,high-speed without distortion.
>>>Technical Parameters<<<

Model	LS-YLP-20L	LS-YLP-30L
Power	20W	30W
Wavelength	1064nm	1064nm
Beam Quality	M2<1.3	M2<1.3
Output Power	10%-100%(continuously to be adjusted)	10%-100%(continuously to be adjusted)
Output Frequency	20KHz-100KHz(continuously to be adjusted)	20KHz-100KHz(continuously to be adjusted)
Power Stability(8h)	<±1%rms	<±1%rms
Focus Spot Diameter	<0.01mm	<0.01mm
Engraving Range	≤400*400mm(customized)	≤400*400mm(customized)
Engraving Depth	1.2mm	1.2mm
Engraving Speed	800 standard characters/second	800 standard characters/second
Minimum Line Width	0.012mm	0.012mm
Minimum Character	0.1mm	0.1mm
Repeated Accuracy	±0.003mm	±0.003mm
System Operation	Windows XP/2000/98	Windows XP/2000/98
Cooling Mode	Air Cooling	Air Cooling
Environment Temperature	10ºC~35ºC	10ºC~35ºC
Environment Humidity	20%-80%	20%-80%
Power Requirement	220V/Singlephase/50Hz/<400W	220V/Single phase/50Hz/<400W
Life of Laser Module	100000Hrs	100000Hrs
Host Size	800mmx650mmx1435mm	800mmx650mmx1435mm

>>>Applicable Sample Materials<<<
>>>LOSPEED Laser machine models<<<
>>>About LOSPEED laser company<<<
>>>Customer Feedback<<<
Please advise us following inforamtion to recommend you most suitable machine:
1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 200*200mm, 300*300mm, or customized as your demand.
Looking forward to your inquiry!!!
