LDPE Heat Shrink Wraparound Sleeve for Pipelines 3lpe Heat Shrinkable Sleeve

Product Description

LDPE heat shrink wraparound sleeve for pipelines 3LPE heat shrinkable sleeve
3LPE Pipeline Field Joint Coating 3LPE Heat Shrinkable Sleeve
Product profile
HSWS, Two-piece, with separate closures designed for the corrosion protection. HSWS is superior performance heat shrinkable products designed for corrosion protection on field applied girth-weld joints of buried and exposed steel pipelines operating up to 80° C (176° F).
The inner layer is two-components epoxy primer which coated on steel pipe;
Intermediate level is special hot melt adhesive;
Outer layer is modified radiation crossing linking polyethylene backing.
Features & Benefits:
Heat Shrinkable Sleeves provide great corrosion protection, Superior resistance to Cathodic Disbondment and excellent durability against abrasion and chemical attack. The result is effective, good performance of sealing, wide application, easy to operate and preheating temperature low (50 celsius degree), long term protection against corrosion.
Easy installation
Saves time& money
Rapid & reliable Installation
Long term protection
HSWS is a wraparound sleeve with a separate closure
Cross-linked backing provides superior abrasion, mechanical and chemical attack resistance.
High performance adhesive provides excellent resistance to Cathodic Disbondment to ensure long-term corrosion protection.
Just-in-time customized lengths allow bulk rolls to be field cut to protect any pipe size

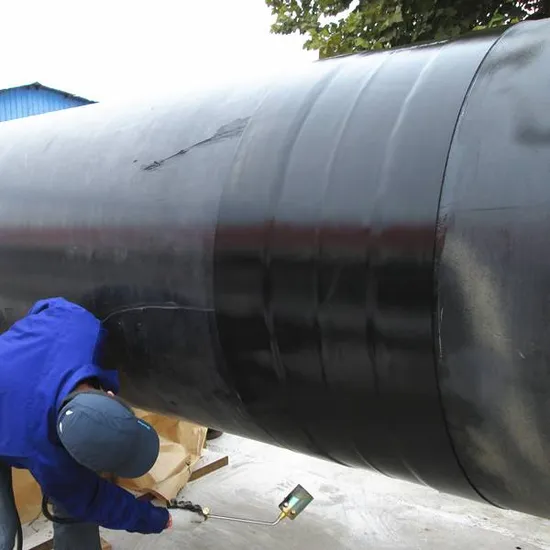

Open sleeve configuration allows the product to be applied after the pipeline has been welded and cleaned.
Specification( mm)
Pipeline size: From Ø 108 to Ø 1554 (4''---60'')
Sleeves width: 100mm, 150mm, 200mm, 300mm, 450mm, 500mm, 600mm, 650mm
Sleeves Thickness: 1.8mm, 2.0mm, 2.2mm, 2.5mm, 2.8mm
Closure patch: 100mm, 150mm, 200mm (4'', 6'', 8'')
Model: HSWS 3600/505/ Ø 1066.8
HSWS--Heat shrinkable wraparound sleeves
3600------Roll length(mm)
505----- -Roll Width (as supplied)
Ø 1066.8----Joint or pipeline Diameter
Technical Data:

Sleeve Operating Characteristics	Test Method		Test Result
Pipeline Operating Temp.			Up to 80°C
Minimum Installation Temp.			110°C (140°F)
Mainline Coating Compatibility			PE,PP, FBE,HPPC
Adhesive Properties
Softening Point	ASTM E28		140°C
Lap Shear @ 23°C	DIN 30672		180 N/cm2
Backing Properties
Tensile Strength	ASTM D638		24MPa
Elongation	ASTM D638		480%
Hardness	ASTM D2240		50 Shore D
Volume Resistivity	ASTM D257		2x1016 ohm-cm
Sleeve Properties
Peel Strength @ 23°C	DIN30672		80 N/cm
Impact Resistance	ASTM G14		56Inch.LBS
Indentation Resistance	ISO 21809-3		0.65mm
Cathodic Disbondment @ 23ºC, 28 days with epoxy	ASTM G8		4mm rad
Low Temp. Flexibility	ASTM D2671-C		-32°C
