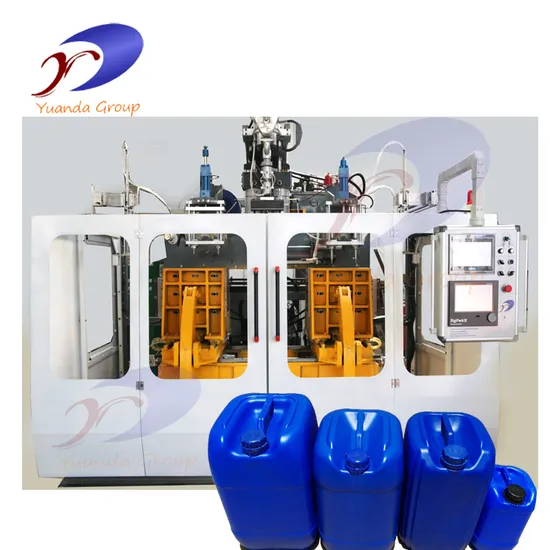

20L 30L Plastic Jars Jerry Cans HDPE Blow Molding Machine

20L 30L Plastic Jars Jerry Cans HDPE Blow Molding Machine

US$12,800.00-58,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
YD80II
Raw Material
HDPE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS
After-sales Service
24 Month
Application
Bottles, Jars, Jerry Cans, Plastic Containers
Station
Two Station
Technical Process
One Step Extrude and Blowing
Suitable Material
PE/PP/HDPE/LDPE/PETG/PVC
Max Volume
5000ml
Mold Automation
with Extrude and Blowing
Advantage
High Speed with Low Energy Consumption
Color
Customized
Transport Package
Film Packing
Specification
High Speed injection blow molding machine
Trademark
Yuanda Group
Origin
China
HS Code
84773020
Production Capacity
600 Sets Per Year

Product Description


Founded in 1970, Yuanda Group is committed to research and development and production of plastic molding equipment,Such as the Extrusion blow molding machine , PET blow molding machine ,Injection blow molding machine (IBM machine), Injection molding machine ect. including the peripheral equipment , such as refrigeration equipment and power generation system equipment. With more than 29 years old working expereice , we can offer the whole equipment for customer plastic factory produce complete project,and strong technical support and advanced complete sets of equipment for many customers in China and overseas.
Our Blow molding machine with best quality in China, due of our strong technical in this field. all important moving parts, we will study and check by computer simulation ADAMS and finite element analysis by ANSYS, advanced techincal in this field industry.so our machine with long life , win more and more good reputation from oversea.

assemblying machine , every process will be inspected by special person ,all work flow according to ISO9001 standard.our blow molding machine is best quality than others , because of our special manufactur process and best material , such as the following pictures.
Our Certification

The whole service flow is divided in pre-sale stage, manufacturing stage, installation stage and after sales service. Good communication and best advanced technical support for every customer, we always find out the best project for every customer .
Workflow Process
Our Advantages
Yuanda Group can supply the best complete line according to client product requirement
1. Advanced servo system , Moog valve from Japan , high precision and high speed , save energy and high efficient
2. Act as optional , client can choose the 3D manipulator, in order to reduce labor cost and improve production efficienty
3. Advanced hydraulic cylinder , all technical sourced from Germany , floating adjustable movement , quickly speed and quiet
4. Machine can connect with the leak tester in line , convenience , save labor cost
5. Heater cover material stainless steel with ceramic heater inside , safty , long life and energy saving 30%
6. Oil pump from USA , mainly parts from Europe, best quality

7. Flex arm clamping enhance template structure, strong Power , high precision !
8. Servo motor from Physis Italy , high speed , save energy and high efficient
9. Color control touch screen with Moog parision from Japan , more convenient operation ,with remote control module , we can remote debugging ,modify and maintain on line , it is very easy for client to solve all problems .
10. Machine can connect with the conveyor in line directly, convenience , save labor cost, save space
11. Hydraulic system and valves from Yuken Industry Japan
12. Aviation military-grade wire connector , stable ,safe and easy to install
Yuanda Group has gained huge trust from international customers based on providing high quality blow molding machines and perfect aftersales service. Yuanda machines have been delivered to America,Poland,Mexico,Colombia,Peru,Argentina,Chile,Indonesia,Malaysia,Vietnam,Saudi Arabia, South Africa,Egypt and so on.
about many other advanced technical data, please require me !
Max. Product volume 6 liters
Dry Cycle time 5 second
Screw diameter 80mm
Screw L/D ratio 24 L/D
Screw drive power 18.5 KW
Screw heating capacity 6 KW
No.of heating zone 3 zones
Output of HDPE 120KG/H
Oil pump drive power 7.5 KW
Clamping force 65KN
Max.size of mold 148-568mm
Mold stroke 330 X 370mm
Max.die diameter 160mm
Blowing pressure 0.6 mpa
Air Volume 0.6 M³/MIN
Cooling water pressure 0.3mpa
Water consumption 50 L/MIN
Size of Machine 4.0x2.3x2.7m
Weight of machine 5.5 ton

Due to the company's fast technology update and technical confidentiality,for blow molding machine,Extrusion Blow Molding ,Injection blow molding machine ,PET blow molding machine , injection molding machine , blowing mould,plastic bottle making machine,plastic bottle mould ,bottle machine , relevant advanced technical parameters must be consulted our sales engineers. 500ml 1L 2L 3L 4L 5L Single Head With Double Stations Plastic Extrusion Blow Molding Moulding Machine Of Lowest Price
