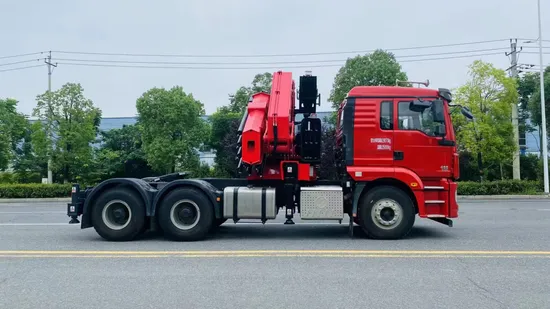

Shacman H3000/X3000 Tractor Truck Mounted Floding Boom Crane Lifting Capacity 20/25/30/35 Tons China Made High Quality Long Arm Remote Control Palfinger 7400

Product Description

TRI-RING Truck-Mounted Crane China Manufacturing Monorail Crane Transport VehicleProduct Description
Truck Mounted Crane Transport Vehicle
A truck-mounted crane transport vehicle is a type of vehicle that is equipped with a crane mounted on the truck chassis. This type of vehicle is commonly used for transporting and lifting heavy loads in various industries, such as construction, infrastructure development, and logistics.
The truck-mounted crane provides a convenient and efficient way to transport heavy materials and equipment to different locations. The crane can be used to lift and load/unload items onto the truck bed or to lift and move items at the job site. This eliminates the need for additional equipment or labor to load and unload heavy items, saving time and resources.
Truck-mounted crane transport vehicles come in a variety of sizes and configurations, depending on the payload capacity and lifting requirements. They are designed to be versatile and mobile, allowing them to access remote or difficult-to-reach locations where traditional cranes may not be able to operate. Overall, they are a valuable asset for businesses that require heavy lifting and transportation capabilities.
Multi-angle Display
Product Parameters

TRUCK MOUNTED CRANE TRANSPORT VEHICLE SPECIFICATIONS
Vehicle Model			STQ5318JSQS6
Basic Vehicle Parameters	Drive Type		8×4
	Total Weight (kg)		31000
	Curb Weight(kg)		17150
Vehicle Appearance Parameters	Length (mm)		12000
	Width (mm)		2550
	Height (mm)		3750
	Wheelbase (mm)		1400+5650+1350
Performance Parameters	Maximum Speed (km/h)		89
	Maximum Climbing Grade (°)		30%
Chassis Configuration Parameters	Engine	Engine Emission Standards	Euro II, III, IV, V, VI
		Manufacturer	Guangxi Yuchai Machinery Co., Ltd./Weichai Power Co., Ltd.
		Displacement(L)	11L
		Rated Power (Kw)	295
	Cab	Type	With Semi-High Roof Cab
		Model	H761 (2.4m Wide)
		Standard Configuration	Integral Rearview Mirror, Bluetooth Player, Manual Hydraulic Flip, Driver Airbag Seat, Laminated Glass, Electric Doors And Windows, Wide Bumper, Central Locking, Multi-Function Steering Wheel
	Gearbox	Gearbox Type	Manual, 12 Gears
	Front Axle	Type	Drum Brake
		Loadable Weight (Kg)	8000
	Rear Axle	Gearbox Type	Drum Brake
		Loadable Weight (Kg)	16000
		Speed Ratio	5.571
	Frame	Section Size (mm)	300×80×(8+8+8) Full Three-Layer Outsourcing
	Leaf Spring	Number of pieces	12 Front Springs, 12 Rear Springs
	Tire	Type	Steel Wire Tire
		Quantity	12+1
		Model	12.00R20-18
	Steering System	Type	Hydraulic Power Steering System
	Braking System	Brake Type	Drum Brakes With ABS Anti-Lock Braking System
		Service Brake System Type	Dual Circuit Air Brake
		Parking Brake System Type	Spring Brake
		Parking Control Type	Manual Brake Operation
	Electrical System	System Voltage	24V
		Battery	140AHDual Battery
Upper Body Configuration Parameters	Crane	Maximum lifting mass (kg)	8000
		Crane brand	XGCS
		Maximum lifting height (m)	25
		Rotation angle (°)	360
		Maximum working pressure (MPa)	26
		Crane weight (kg)	5000
		Leg type	H
		Leg span (m)	5.9
	Cargo Box	Cargo box size (mm)	8400×2550×600
		Material	Q235
		Material thickness	Wall thickness 3 Bottom thickness 5
Other Configuration		Triangular Warning Sign, Tool Kit, Spare Tire At The Rear Of The Frame, ABS, Air Conditioning, Front Lower Protection, Sun Visor.

Detailed Photos
High-strength Steel Boom
Adopt BS700 high-strength steel, quality light boom, reliable industry main boomLuxury Cab
The cab has multimedia audio and heating and cooling ar-conditioning, which not only has a wide field of vision but also provides comfortable driving.Hydraulic Outrigger
Fully automatic hydraulic telescopic legs, joystick operation, easy to leam360 Rotation
50 forged intemal gear plate 360° rotation, with planetary reducerCargo Body
The cargo box is large in volume, strong and durable, easy to use, and beautiful. Technical Drawing

One-stop Service Process
1. Consultation and demand confirmation
2. Quotation
3. Contract signing
4. Deposit payment
5. Production and delivery
6. Balance payment
7. Shipping and logistics
Company Profile
FAQ
Q1. Is your company a factory or a trading company?
A: We are a leading manufacturer of special trucks, tank trucks, trailers, and spare parts in China. Welcome to visit our special vehicle production base in Suizhou City, China.
Q2. What are your payment terms?
A: T/T 30-50% as deposit, the rest to be paid before delivery. We will show you photos of the products and packages before you pay the balance.
Q3. What are your delivery terms?
A: EXW, FOB, CFR, CIF, DAF, DDU.
Q4. How about your delivery time?
A: Generally, it takes 20 to 30 days after receiving the advance payment. The specific delivery time depends on the items and quantity of the order.
Q5. Can you customize the products to meet my requirements?
A: Yes. We have a professional R&D team, and we can produce products exactly as you require.
Q6. What is the price of your products?
A: We are factory direct sales, so the price is very competitive. Different products have different prices. The price
also depends on your special needs. To know the exact price, please contact us!
Q7. Do you test all the goods before delivery?
A: Yes, we do 100% testing before delivery.
Q8: What service can I get from you?
A: We provide lifetime tracking service and a one-year free warranty for all our products. At the same time, we provide free training and technical support to guide you to repair the product. We will also provide original spare parts if necessary, and you only need to pay the shipping cost.
