Energy Saving Customized Bd Series Gantry 3D Drilling Machine

Product Description

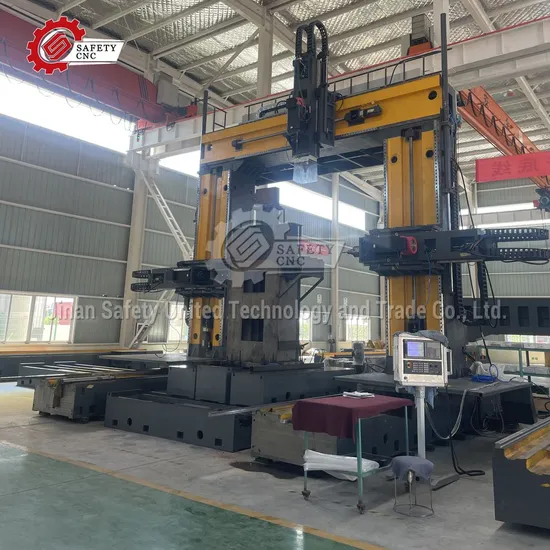

Energy Saving Customized BD Series Gantry 3D Drilling Machine
Product Description
Apply scope:
The machine is mainly used for drilling H steel and channel steel in steel structures, bridges, stereo garages, and other industries. Technology Parameter

Model	BD1500/3	BD2000/3	BD2515/3	BD3020/3
Size of web (mm)	600 - 1500	1000 - 2000	1000 - 2500	800 - 3000
Size of flange (mm)	200 - 1500	400 - 1000	700 - 1500	800 - 2000
Quantity of spindle	3
Quantity of tools	1
Max. drilling diameter (mm)	50			40 / 50
Rotation speed of spindle(rpm)	120 - 450		120 - 560	120 - 450
Power of spindle (KW)	7,5
Quantity of CNC	8

(The machine can be made according to the requirement of the customer)
Application:
This machine is suitable for drilling H-beam, Angle steel, Channel steel, Rectangular pipe, Steel plate, and Round pipe in the field of building structure, and steel structure production.
Component:
The machine is composed of a frame, movable sliding plate, power head sliding plate, high-speed drill, electrical system, automatic lubrication system, cooling device, and other parts.
Company Profile
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer.
Q2: Can the machine parts be changed according to my requirements?
A2: Yes, we will try our best to give you the best products.
Q3:What is your payment term?
A3:30% T/T deposit paid in advance, 70% balance paid before shipping.
Q4: How can I get to your factory?
A4:We could pick you up at the airport or high-speed rail station.
Q5: What service can you provide before order?
A5:About the pre-sale service. We provide you answers to all your questions on our machines, such as technical parameters, price, payment terms, etc. If you wanna visit our factory and check the machines, we also can send you an invitation letter and give you our warmest welcome.
Q6: Can you finish the machine during the delivery time?
A6:We will finish the machine in time according to the determined lead time.
