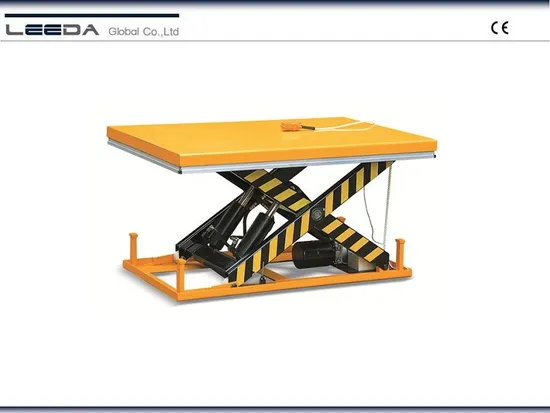

4000kg Stationary Electric Single Scissor Lift Table with Positioning in Different Heights and 1200X1700mm Platform Size Hl-W4001
| US$860.00-2,100.00 | 1 Piece (MOQ) |
Basic Info.
Carrying Capacity
Middle-Level
Moves
Stationary
Driven Type
AC
Running Mode
Stationary
Certification
GS, CE, ISO 9001
Design
Heavy Duty Type
Capacity
4000kg
Min Height
240 mm
Raised Height
1050 mm
Platform Size
1200X1700mm
Power Pack
380V/50Hz,AC Vesrion
Transport Package
Wooden Pallet
Specification
4000kg
Trademark
Leeda
Origin
China
HS Code
8427900
Product Description
Stationary Lift Table with Positioning in Different Heights (HL-W SERIES)Heavy Duty Design
HL-W series Lift tables meet EN norm and ANSI/ASME safety standards.
These models can be used in above-floor or in-floor pit applications.
Standard Safety Features
Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
Low-tention (24V) control box with up-down buttons.
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
Heavy duty cylinders with drainage system and check valve to stop the Lift table lowering in case of hose burst.
Safety clearance between scissors to prevent trapping during operation.
Other Standard Features
Self lubricating bushings on pivot points.
Removable lifting eye to facilitable handling and Lift table installation. Bitmap
High quality AC power packs are made in Europe
| Model | Capacity | Lowered Height | Raised Height | Platform Size | Base Frame Size | Lift Time | Power Pack | Net Weight |
| (kg) | (mm) | (mm) | (mm) | (mm) | (second) | (kg) | ||
| HL-W1001 | 1000 | 205 | 990 | 820× 1300 | 640× 1240 | 20-25 | 380V/50HZ, AC 1.1kw | 160 |
| HL-W1002 | 1000 | 205 | 990 | 1000× 1600 | 640× 1240 | 20-25 | 186 | |
| HL-W1003 | 1000 | 240 | 1300 | 850× 1700 | 640× 1580 | 30-35 | 200 | |
| HL-W1004 | 1000 | 240 | 1300 | 1000× 1700 | 640× 1580 | 30-35 | 210 | |
| HL-W1005 | 1000 | 240 | 1300 | 850× 2000 | 640× 1580 | 30-35 | 212 | |
| HL-W1006 | 1000 | 240 | 1300 | 1000× 2000 | 640× 1580 | 30-35 | 223 | |
| HL-W1007 | 1000 | 240 | 1300 | 1700× 1500 | 1580× 1320 | 30-40 | 380V/50HZ, AC 1.1kw | 365 |
| HL-W1008 | 1000 | 240 | 1300 | 2000× 1700 | 1580× 1320 | 30-40 | 430 | |
| HL-W2001 | 2000 | 230 | 1000 | 850× 1300 | 785× 1220 | 20-25 | 380V/50HZ, AC 2.2kw | 235 |
| HL-W2002 | 2000 | 230 | 1000 | 1000× 1600 | 785× 1220 | 20-25 | 268 | |
| HL-W2003 | 2000 | 250 | 1300 | 850× 1700 | 785× 1600 | 25-35 | 289 | |
| HL-W2004 | 2000 | 250 | 1300 | 1000× 1700 | 785× 1600 | 25-35 | 300 | |
| HL-W2005 | 2000 | 250 | 1300 | 850× 2000 | 785× 1600 | 25-35 | 300 | |
| HL-W2006 | 2000 | 250 | 1300 | 1000× 2000 | 785× 1600 | 25-35 | 380V/50HZ, AC 1.5kw | 315 |
| HL-W2007 | 2000 | 250 | 1400 | 1700× 1500 | 1600× 1435 | 25-35 | 380V/50HZ, AC 2.2kw | 415 |
| HL-W2008 | 2000 | 250 | 1400 | 2000× 1800 | 1600× 1435 | 25-35 | 500 | |
| HL-W4001 | 4000 | 240 | 1050 | 1200× 1700 | 900× 1600 | 30-40 | 375 | |
| HL-W4002 | 4000 | 240 | 1050 | 1200× 2000 | 900× 1600 | 30-40 | 405 | |
| HL-W4003 | 4000 | 300 | 1400 | 1000× 2000 | 900× 2000 | 45-50 | 470 | |
| HL-W4004 | 4000 | 300 | 1400 | 1200× 2000 | 900× 2000 | 45-50 | 490 | |
| HL-W4005 | 4000 | 300 | 1400 | 1000× 2200 | 900× 2000 | 45-50 | 480 | |
| HL-W4006 | 4000 | 300 | 1400 | 1200× 2200 | 900× 2000 | 45-50 | 380V/50HZ, AC 2.2kw | 505 |
| HL-W4007 | 4000 | 350 | 1300 | 1700× 1500 | 1620× 1400 | 35-45 | 380V/50HZ, AC 2.2kw | 570 |
| HL-W4008 | 4000 | 350 | 1300 | 2200× 1800 | 1620× 1400 | 35-45 | 655 |
