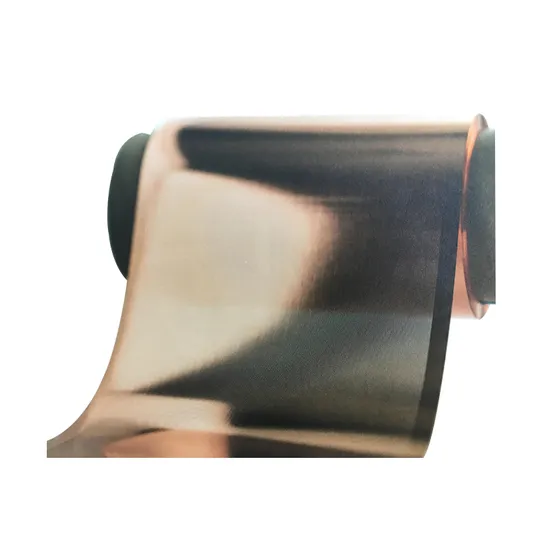

Microporous Copper Foil for Lithium Ion Battery Materials

Product Description

Product Description

Micro Cu foil Spec
Item	Unit	Qualified value and range	Inspection cycle	Test value
T2	%	Red copper 99.9	By rolled	Red copper 99.9
Thickess	mm	0.006-0.020	By rolled	0.0085-0.022
Areal density	g/m2	customized	By rolled	cutomized
Width	mm	0-1000	By rolled	0-1000
Hole density		number	Aperture um	The surface density is lower than the base material %
	No/cm2	4000-6000	2-25	0.1-2.94
	No/cm2	6000-8000	2-25	0.2-3.96
	No/cm2	8000-10000	2-20	0.3-4.95
	No/cm2	10000-12000	2-20	0.3-3.95
	No/cm2	12000-15000	2-15	0.4-2.65
Hole consistency	%	80-90	By rolled	85
tensile strength	Mpa	200-260	By rolled	1.8
Elongation	%	1.1~2.42	By rolled	1.807
Resistivity	μΩ.cm	GB/T228.1-2010	By rolled	40
Wettability	Dyne	40	By rolled	ok

Packaging & Shipping
Company Profile
Our Advantages
What's our advantages?
1)a full set of products chain from lithium ion battery material, equipment, battery production technology.
2)10years lithium ion battery experiences.

4)strong teams for markets and agents, and customers all over the world from Asia, Amerian, Europe, Middle East, etc.
We also could supply all materials and full sets equipments for Li-ion battery.
1. )full set of lithium battery materials, including:
LiMn2O4, LTO, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB)and other cathode&anode battery materials; Aluminum foil, copper foils, battery separator, etc.
2. )full set of lithium battery equipments, for example:
Mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutting machine --winding machine--sealed machine, etc
3)full set of lithium battery technology
4)we can design the laboratory and production line, according to customer's request
Want to research lithium ion battery? We can design battery research lab and pilot plant, provide technology, material, equipment for you.
