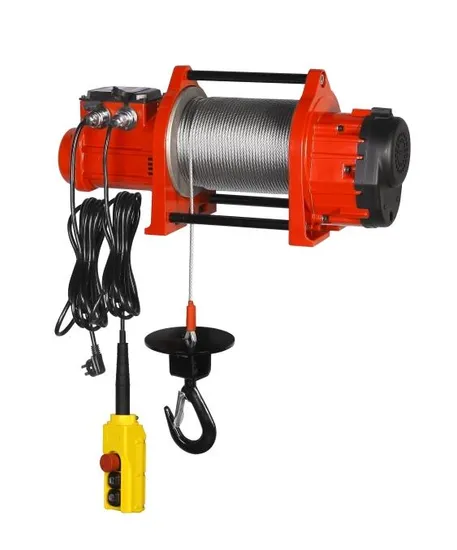

CE Certification, 0.2-1t Light Fast/Slow Speed Electric Winch Permanent Magnet Frequency Conversion Motor for Building Marine Industry, etc

Product Description

CE certification, 0.2-1T light fast/slow speed electric winch permanent magnet frequency conversion motor for building Marine industry, etc
SIZE SPECIFICATION

MODEL	Capacity (KG)	Motor KW	Lift Speed (M/MIN)		Rope mm*M	Power Line M	Control Wire M	A	B	C	L	H	G.W/N.W	CARTON
			Slow	Fast				mm	mm	mm	mm	mm	KG	cm
NJ200DS	200	1.5	10	16	5*30	4.5	6	496	210	95	271	470	22/18	54*25*30
NJ200DS	200	1.5	10	16	5*70	4.5	6	550	210	150	271	470	26/22	60*25*30
NJ200DS	200	1.5	10	16	5*100	4.5	6	610	210	205	271	470	29/25	66*25*30
NJ300DS	300	2.5	15	25	6*30	4.5	6	496	210	95	271	470	22/18	54*25*30
NJ300DS	300	2.5	15	25	6*50	4.5	6	550	210	150	271	470	26/22	60*25*30
NJ300DS	300	2.5	15	25	6*70	4.5	6	610	210	205	271	470	29/25	66*25*30
NJ500DS	500	2.5	10	18	6*30	4.5	6	496	210	95	271	470	22/18	54*25*30
NJ500DS	500	2.5	10	18	6*50	4.5	6	550	210	150	271	470	26/22	60*25*30
NJ500DS	500	2.5	18	18	6*70	4.5	6	610	210	205	271	470	29/25	66*25*30

Feature
1: Permanent magnet frequency conversion technology, stable lifting and falling without shaking. Intelligent integrated control appliances can save energy by more than 45%. Electrical control 4v low voltage is safe and reliable, no worry about electric shock
2: Overload and overheat protection can ensure safe and durable, and high and low speed can be switched at will, which make the machine suitable for different scenarios
3: Optional-accurate weight display and real-time monitoring, record keeping for query, wireless control + wireless communication
4. Double safety brake device: When the power is off, the motor decelerates instantly and the mechanical ratchet brake take action at the same time.
5. The switch line and power line are designed separately, which is easy to install.
6. Small button switch, easy operation
7. The main unit is small in size and light in weight and can be moved quickly.
8. Single-phase 110V (single-phase 220V).
9. When the chain reaches the upper or lower limit, the micro switch will be triggered, and the circuit is automatically cut off to prevent machine collision.
WORKSHOP AND WAREHOUSE
FAQ Q1: Are you a factory or a trading company? We have our own factory for produce hoist. Q2: Can you print OEM brand for customers? A3: Yes, the OEM is acceptable. Q3: How long is the warranty on your products? A5: We provide 12 months warranty for our entire product, but easy worn parts not included. Q4: What's the lead time for production? A6: Usually around 10-15 days after payment received, Holiday period will prolong. Q5: What Payment terms do you accept? A7: T/T is preferred; if you want any other method please contact us for discussing.
